ECS G24 ALL-IN-ONE PC
CHASSIS INTEGRATION WITH THE
GIGABYTE GA-Q87TN DESKTOP BOARD

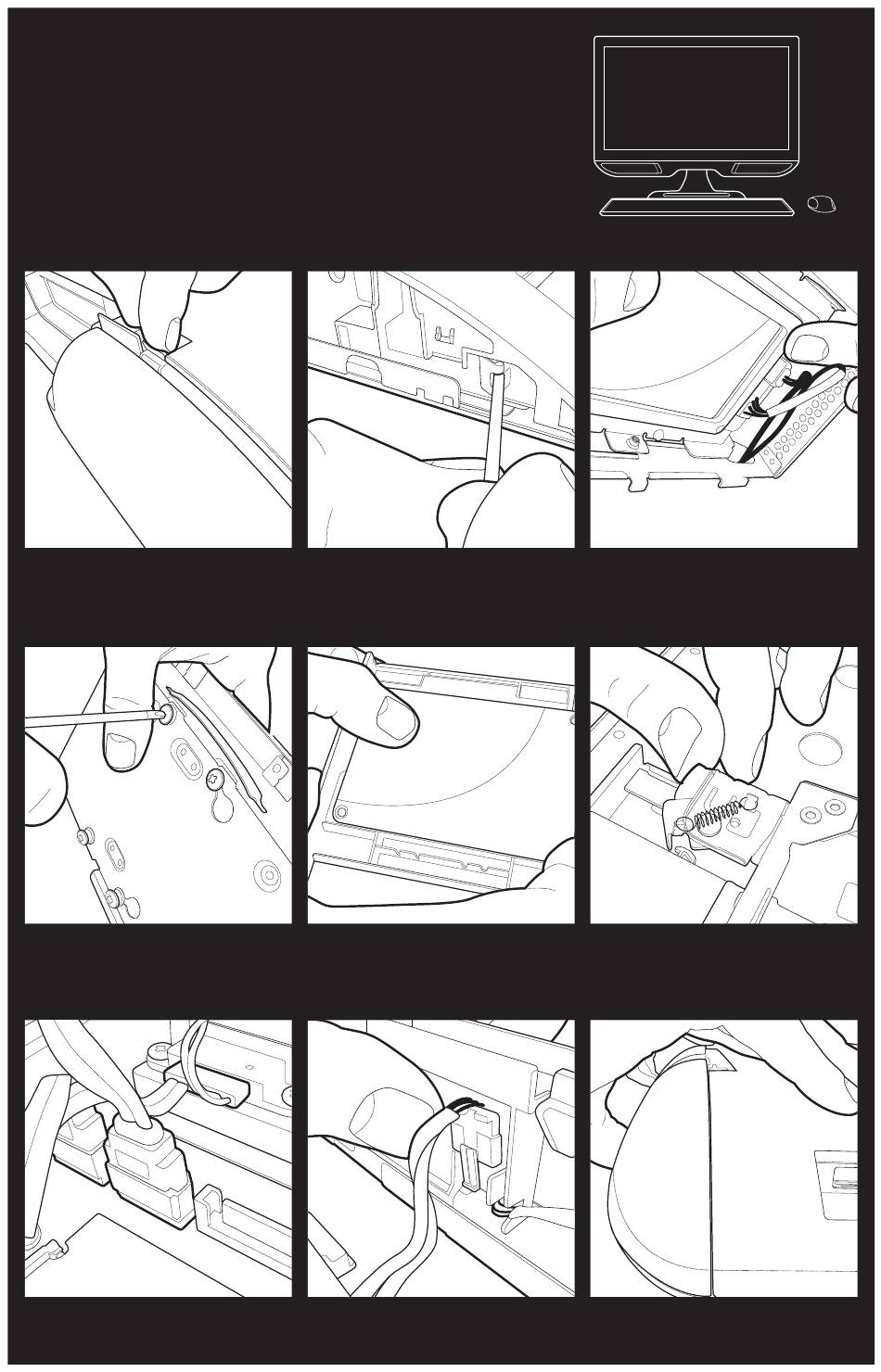

1. Disconnecting the Speaker Unit
Disconnect the speakers by pushing down on clips on either side
of the bottom of the chassis and remove the speaker section.
4. Securing the HDD to the Mounting Bracket
Secure the HDD to the mounting bracket by fastening the
retention screws on the underside of the bracket.
10. Connecting the SATA Connectors
Connect the HDD and ODD SATA connectors.
2. Removing the Back Panel
To remove the back panel, insert a screwdriver into the corner
flange and lever gently to release catch. This needs to be done
on either side of the chassis.
5. Installing the Optional HDD
To install the optional HDD in the ODD position, insert the HDD
into the carrier by sliding it into the bracket.
11. Connecting the Audio Cable Connector
Clip the audio cable connector to the chassis before connecting
the speaker unit to the chassis.
3. Placing the HDD in the Mounting Bracket
Place the HDD into the mounting bracket and connect all SATA
connectors, as pictured.
6. Removing the HDD Carrier
To remove the HDD carrier, simply pull back the retention
mechanism.
12. Replacing the Speaker Unit
Clip the speaker unit to the chassis by lifting it into place. Ensure
that the back chassis cover has been replaced prior to clipping on
the speaker unit.
