OPERATOR'S MANUAL

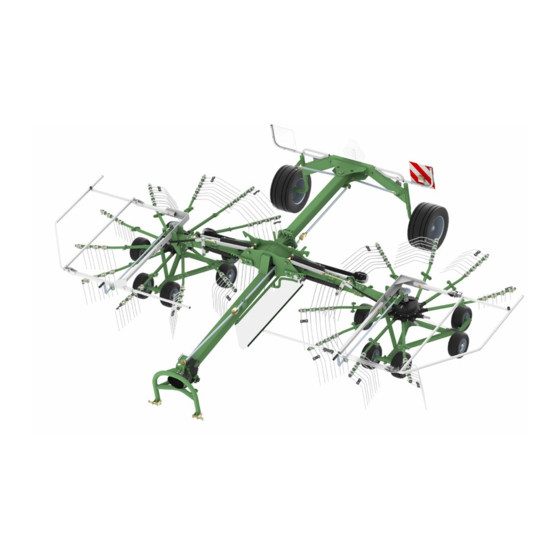

TWIN-ROTOR ROTARY RAKE
Serial No:
Translation of the original manual
Poland, 16-060 Zabłudów, ul. Trawiasta 1
Z2-780
Z2-840
SaMASZ Sp. z o.o.
Established – 1984
NIP PL-966-159-29-76
tel. (+48) (85) 664 70 31
fax (+48) (85) 664 70 41
e-mail: samasz@samasz.pl
IN305USA006
EDITION No. 6
www.samasz.pl
2017-04-19
