INSTALLATION

Installing the oven
 The kitchen area should be dry and
aired and equipped with efficient ven-
tillation. When installing the oven, easy
access to all control elements should
be ensured.
 This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneer used on fitted furniture must be
applied with a heat–resistant adhesive
(100°C). This prevents surface defor-
mation or detachment of the coating.
 Hoods should be installed according to
the manufacturer's instructions.

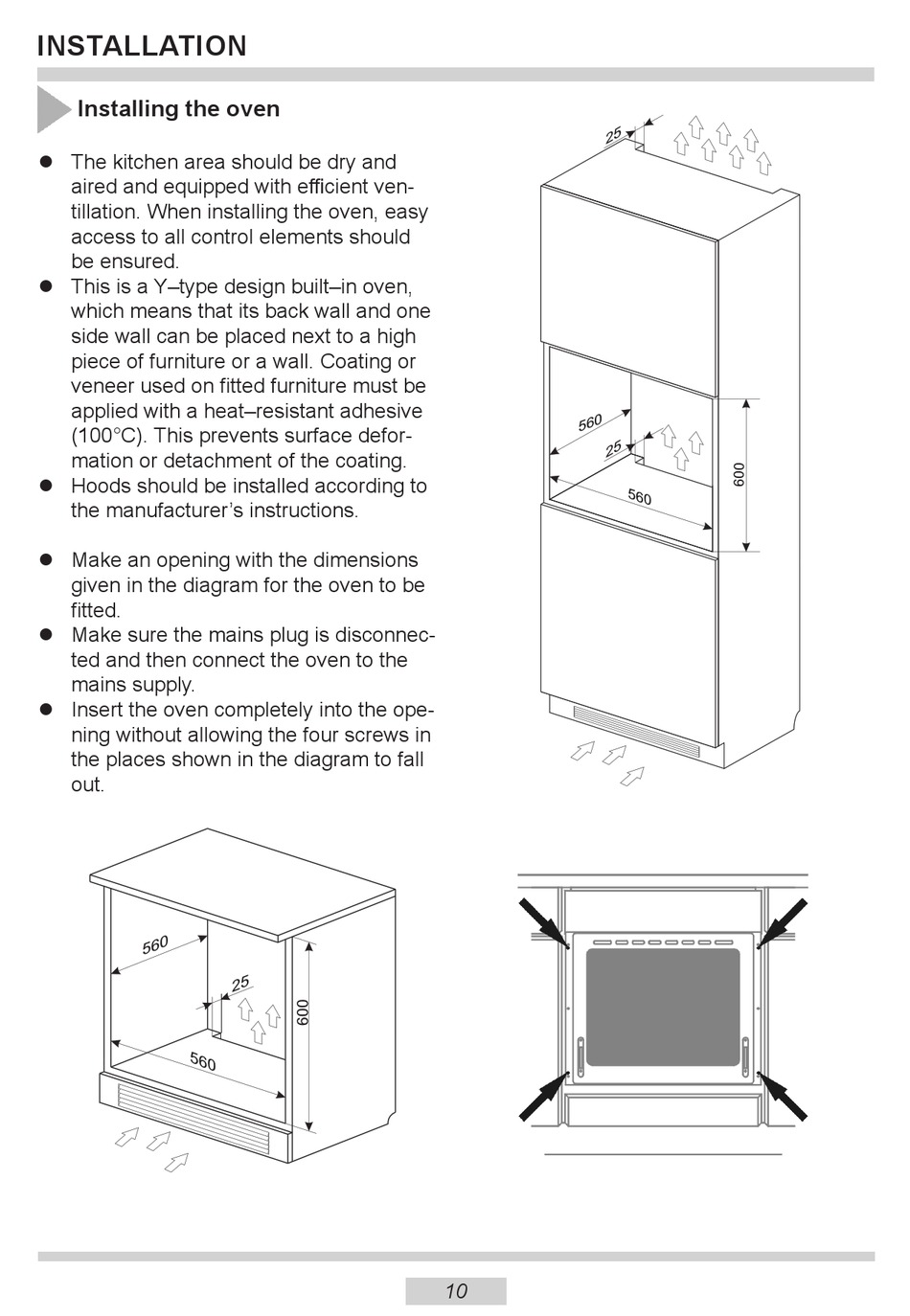

 Make an opening with the dimensions
given in the diagram for the oven to be
fitted.
 Make sure the mains plug is disconnec-
ted and then connect the oven to the
mains supply.
 Insert the oven completely into the ope-
ning without allowing the four screws in
the places shown in the diagram to fall
out.
5 6 0
5 6 0
2 5
5 6 0
10
