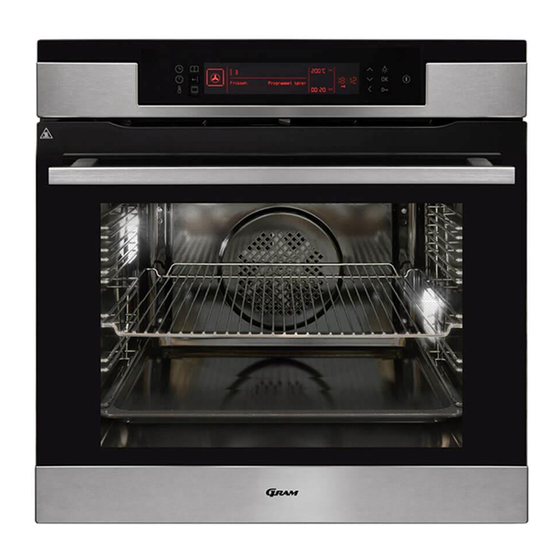

Gram IOP 20686-94 X Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Type
IOP 20686-94 X
(EN) INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the IOP 20686-94 X and is the answer not in the manual?

Questions and answers

Related Manuals for Gram IOP 20686-94 X

Summary of Contents for Gram IOP 20686-94 X

  • Page 1 Type IOP 20686-94 X (EN) INSTRUCTION MANUAL...
  • Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Installation ......................... 10 Operation ........................... 12 Baking in the oven – practical hints ................31 Test dishes...........................33 Cleaning and maintenance ....................35 Technical data ........................41...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
  • Page 5 SAFETY INSTRUCTIONS Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.
  • Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it:  Do not uncover the pan too often (a watched pot never boils!).
  • Page 7 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpack- be delivered to a collection and ing, please dispose of all recycling centre for electric and elements of packaging in a...

  • Page 8: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Control panel On/Off switch Door Handle oven Temperature Oven functions Active functions Text messages Time display Touch controls Touch controls...
  • Page 9 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate (drying rack) Baking tray Roasting tray Meat probe Sideracks...

  • Page 10: Installation

    INSTALLATION Electrical connection Installing the oven  The oven is manufactured to work with  The kitchen area should be dry and aired a one-phase alternating current (230V and equipped with efficient ventillation. 1N~50 Hz) and is equipped with a 3 x 1,5 When installing the oven, easy access to connection lead of 1.5 mm length all control elements should be ensured.
  • Page 11 INSTALLATION Mounting scheme with dimensions 5 7 0 5 4 4 4 2 9 m a x 5 9 5 5 9 5 1 0 3 4 5 6 0 6 0 0 5 6 0 5 6 0...

  • Page 12: Operation

    OPERATION Before using the appliance for Important! the first time The oven features touch control panel and display. To activate each touch • Remove packaging, clean the interior sensor, touch the glass above the of the oven, sensor (indicated by a pictogram). An •...
  • Page 13 OPERATION Using the control panel Touch controls The control panel features 12 touch sensors (no backlight), marked as shown above. Each time you touch a sensor a beep is emitted (except as indicated in detailed operating instruc- tions). On/off switch is on the right side of the display.
  • Page 14 OPERATION Oven functions Oven functions are indicated as follows: Display backlight brightness. Backlight brightness changes throughout the day. Backlight brightness is set to high during 05:00—22:00 and low during 22:00—05:00. Backlight bright- ness is also determined by the oven operating mode: •...
  • Page 15 OPERATION Temperature Oven cavity temperature and heating indicator Meat probe and activation indicator Start Time/ End Time and activation indicator Time display HH:MM time display and symbols: AM/PM, kitchen timer, duration, end time Text messages Text information area includes 2 lines x 34 characters for displaying text information in the following languages: English, German, Polish, Russian, Czech, Serbian, Lithuanian, Estonian, Latvian, French, Spanish, Turkish, Swedish, Norwegian, Finnish, Danish, Italian, Dutch.
  • Page 16 OPERATION Turn on the appliance and set the time. Standby mode When you plug in the appliance for the first In this mode, the power consumption of the time you need to select the language. The appliance is limited to 800mW (except when display is off except the text messaging area.
  • Page 17 OPERATION Operation. Clock In this mode you can select the desired Touch and hold for a few seconds to functions, programmes and adjust settings. change the current time. In turn you can You can use and sensors that set time display mode (12h/24h), hours and activate the Child Lock.
  • Page 18 OPERATION Light Heating functions sensor operates independently and Touch to select heating functions. You using it does not affect other functions and can use the following controls: – open pre-set programmes menu (clear settings. sensor is inactive in a standby unconfirmed settings);...
  • Page 19 OPERATION Oven light is on switches, and you can use sensors. Other functions start af- ter 5 seconds of confirming. [Duration ] symbol is displayed and time display shows time that has elapsed. You can cancel a heating programme at any time.
  • Page 20 OPERATION Overview of oven functions, oven elements, possible temperature and default settings. Temperature Default Level Function De- Oven elements tempera- from the scription ture [°C] bottom min. Conventional bottom heater + top heater bottom heater + top heater + Cake Grill Roaster + rotisserie drive roaster + top heater + fan +...
  • Page 21 OPERATION Meat probe Fast oven cavity heat-up. If you plug in the meat probe before select- When you select the heating function and ing the heating function, you can set the temperature the fast heating function be- meat probe immediately after setting the comes available.
  • Page 22 OPERATION Recommended meat probe temperature Timer. settings Touch to access timer settings. You oven features a timer, which is not affected by Type of meat Temperature [°C] other settings. You can set Duration or End Time and Duration. Touch to set Kitchen Pork 85 - 90 Timer ->...
  • Page 23 OPERATION Timed operation. set Duration. The symbol lights up and Timed operation involves setting the dura- symbol starts flashing. The display tion after which the appliance automatically will show the End Time (calculated as Start turns off. You can set the duration from 1 Time + Duration).
  • Page 24 OPERATION Child Lock Pre-set programmes Child lock is designed to prevent children from changing the oven settings. Pre-set programmes are pre-defined heat- When Child Lock is active touching any con- ing functions including temperature and trol will cause an [error] beep. Active touch times to specific cooking applications.
  • Page 25 OPERATION ed group are displayed on the right. settings such as temperature, heating func- When you confirm, the selected pre-set pro- tion and times are applied and the pro- gramme is displayed on the left side. gramme starts. "Programme in progress" message will be displayed.
  • Page 26 OPERATION Cleaning programme. When you confirm door status is checked. If the door is open the message "Close oven Cleaning programme can be found in the door and touch OK to start" is displayed. If "Heating functions", but it operates much the door is closed the message is displayed: like pre-set programmes.
  • Page 27 OPERATION When you confirm door status is checked. If the door is open the message "Close oven door and touch OK to start" is displayed. If the door is closed the message is displayed: "Touch OK to start pyrolytic cleaning" You have 10 minutes to close the door and touch OK to confirm.
  • Page 28 OPERATION Setup Continuous and ECO. The default is the cur- rent setting and the factory setting is: ECO Touch together to enter the setup mode. Touch OK to store the current setting menu. The appliance must be in operating and go back to the configuration menu. mode to enter the setup menu Appliance specification assumes ECO set- Menu navigation:...
  • Page 29 OPERATION Regardless of the AutoDoor Open settings, 6. Service. the door can be opened manually at any The service menu is for information only and time by pulling the handle. no settings can be adjusted. Touch to go through all the items and touch OK or Note: When AutoDoor Open function is ac- to go back.
  • Page 30 OPERATION SmellCatalyst Use of the grill The SmellCatalyst largely removes the The grilling process operates through infrared odours emitted from the oven during baking rays emitted onto the dish by the incandes- or cleaning. SmellCatalyst starts automati- cent grill heater. cally during pyrolytic cleaning.

  • Page 31: Baking In The Oven - Practical Hints

    BAKING IN THE OVEN – PRACTICAL HINTS Baking  we recommend using the baking trays which were provided with your cooker;  it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
  • Page 32 BAKING IN THE OVEN – PRACTICAL HINTS ECO fan assisted heating ECO fan assisted heating is an optimised heating function designed to save  energy when preparing food. You cannot reduce the cooking time by setting a higher temperature; preheating ...

  • Page 33: Test Dishes

    TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 29 - 32 Baking tray 31 - 34 Baking tray 34 - 37 Small cakes 2 + 4 Baking tray 2 - baking tray 40 - 43...
  • Page 34 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) White bread Wire rack 3 - 7 toast Wire rack + 4 - wire rack roasting tray 1st side 13 - 18 Beef burgers 3 - roasting (to gather...

  • Page 35: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Proper routine maintenance and cleaning of Replacing the halogen bulb in the oven the oven can significantly extend its trouble- free operation. Before replacing the halogen bulb, make sure the appliance is disconnected from Turn off the oven before cleaning. the electric mains to avoid a possible Do not begin cleaning until the electric shock.
  • Page 36 CLEANING AND MAINTENANCE  Ovens are equipped with easily remov- able wire shelf supports. To remove them for cleaning use size 3 Allen key to undo the fixing screws from shelf support holders Once cleaned, replace the shelf supports in oven chamber. Before tighten- ing, make sure the shelf support holders are secure in the holes provided in oven chamber wall.
  • Page 37 OVEN CLEANING AND MAINTENANCE Important! Pyrolytic cleaning During pyrolytic cleaning, the oven chamber can reach a very high tem- Oven pyrolytic self-cleaning. The oven heats perature. Consequently, the outer up to a temperature of about 480°C. Grilling oven surfaces can heat up more than or baking residue is burnt into an easy to re- usual, so keep children away at all move ash that can be wiped off with a damp...
  • Page 38 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a cross-head screwdriver undo the screws in the upper door slat (fig. B). In order to obtain easier access to the oven 2. Using a flat screwdriver remove the up- chamber for cleaning, it is possible to remove per door slat, prying it gently on the sides the door.
  • Page 39 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat Regular inspections (in the lower section of the door). Important! Risk of damage to glass Besides keeping the oven clean, you should: panel mounting. Do not lift the glass ●...
  • Page 40 TROUBLESHOOTING In the event of any fault: • turn off the appliance, • disconnect the power supply, • based on the instructions given in the table below, some minor issues can be corrected by the user. Please check the consecutive points in the table before you refer the repair to customer service.

  • Page 41: Technical Data

    TECHNICAL DATA Voltage rating 230V~50 Hz Power rating max. 3,6 kW Oven dimensions H/W/D 59,5 / 59,5 / 57,0 cm Basic Information: The product meets the requirements of European standards EN 60335- 1; EN60335-2-6. The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1.
  • Page 44 Gram A/S Gram A/S Gram A/S Tel.: 22 07 26 30 Tel.: 040 38 08 40 Tel.: 020 7756 350 www.gram.no www.gram.se www.gram.fi Gram A/S Gejlhavegård 2B DK-6000 Kolding +45 73 20 10 00 www.gram.dk IO-CBI-1280 / 8506316 (03.2020 / v5)
