Gram IOP 14642-90 X Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Type
IOP 14642-90 X
(EN) INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the IOP 14642-90 X and is the answer not in the manual?

Questions and answers

Related Manuals for Gram IOP 14642-90 X

Summary of Contents for Gram IOP 14642-90 X

  • Page 1 Type IOP 14642-90 X (EN) INSTRUCTION MANUAL...
  • Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Installation ......................... 10 Operation ........................... 12 Baking in the oven – practical hints ................20 Test dishes...........................23 Cleaning and maintenance ....................25 Technical data ........................32...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
  • Page 5 SAFETY INSTRUCTIONS Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.
  • Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it:  Do not uncover the pan too often (a watched pot never boils!).
  • Page 7 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpack- be delivered to a collection and ing, please dispose of all recycling centre for electric and elements of packaging in a...

  • Page 8: Description Of The Appliance

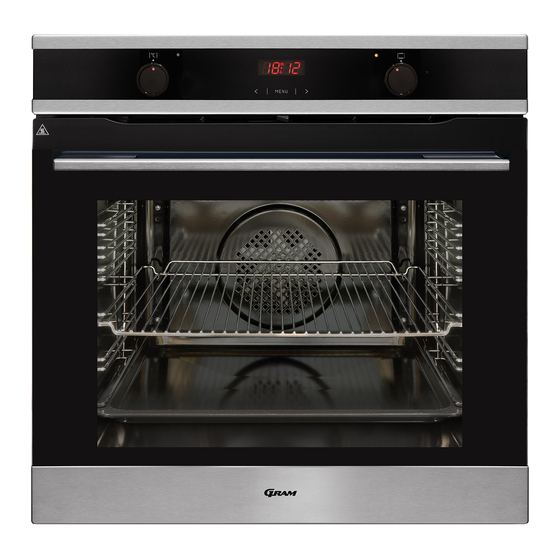

    DESCRIPTION OF THE APPLIANCE 1 Temperature control knob 2 Oven function selection knob 3 Temperatureregulatorsignal light 4 Oven operation signal light 5 Oven operation signal light 6 Electronic programmer...
  • Page 9 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate (drying rack) Baking tray Roasting tray Sideracks...

  • Page 10: Installation

    INSTALLATION Installing the oven  The kitchen area should be dry and aired and equipped with efficient ventillation. When installing the oven, easy access to all control elements should be ensured.  This is a Y–type design built–in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall.
  • Page 11 INSTALLATION Electrical connection  The oven is manufactured to work with a one-phase alternating current (230V 1N~50 Hz) and is equipped with a 3 x 1,5 mm connection lead of 1.5 mm length with a plug including a protection contact. ...

  • Page 12: Operation

    OPERATION Important! Before using the oven for the first time In ovens equipped with the electronic  Remove packaging, clean the interior of programmer Ts, the time “0.00” will the oven. start flashing in the display field upon  Take out and wash the oven fittings with connection to the power supply.
  • Page 13 OPERATION Child safety lock Oven door features a child safety lock de- vice that prevents children from opening of the door. The appliance is supplied by the manufacturer with the door safety lock de- vice engaged. Release the child safety lock. The lock is released and you can open...
  • Page 14 OPERATION Electronic programmer You can adjust the time later. To do this touch < and > simultaneously and adjust the current time while the dot is flashing. functions Caution! – function selection button MENU If the correct time is not set then proper opera- <...
  • Page 15 OPERATION Semi–automatic operation Automatic operation If the oven is to be switched off at a given If the oven is to be switched on for a specified time, then you should: period of time and switched off at a fixed hour then you should set the operation time and Set the oven function knob and the tem- the operation end time:...
  • Page 16 OPERATION Change the timer beeps The function AUTO is now on; the oven will start operating from the point when the differ- The tone of the timer beeps may be ence between the set operation end time and changed as follows: the operation duration time occurs (e.g.
  • Page 17 OPERATION Oven functions and operation. Oven is off Defrosting Oven with automatic air circulation Only fan is on and all heaters are off. (including a fan and an ultra-fan Rapid Preheating heater) Ring heater and roaster on. Use to The oven can be heated up using the bottom preheat the oven.
  • Page 18 OPERATION Top heater, bottom heater and fan Roaster on. are on. Roasting is used for cooking of small This knob setting is most suitable portions of meat: steaks, schnitzel, for baking cakes. Convection baking fish, toasts, Frankfurter sausages, (recommended for baking). (thickness of roasted dish should not When the functions have been...
  • Page 19 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to:  Set the oven knob to the position marked grill ...

  • Page 20: Baking In The Oven - Practical Hints

    BAKING IN THE OVEN – PRACTICAL HINTS Baking  we recommend using the baking trays which were provided with your cooker;  it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
  • Page 21 BAKING IN THE OVEN – PRACTICAL HINTS ECO fan assisted heating ECO fan assisted heating is an optimised heating function designed to save  energy when preparing food. You cannot reduce the cooking time by setting a higher temperature; preheating ...
  • Page 22 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including a fan and ring heater) Type of Type Temperature ( Level Time dish of heating (min.) Sponge cake 160 - 200 2 - 3 30 - 50 Yeast cake/ 160 - 170 25 - 40...

  • Page 23: Test Dishes

    TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 29 - 32 Baking tray 31 - 34 Baking tray 34 - 37 Small cakes 2 + 4 Baking tray 2 - baking tray 40 - 43...
  • Page 24 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) Wire rack 1,5 - 2,5 White bread toast Wire rack 2 - 3 Wire rack + 4 - wire rack roasting tray 1st side 10 - 15 Beef burgers 3 - roasting...

  • Page 25: Cleaning And Maintenance

    CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Replacement of the oven light bulb nance of your cooker you can have a sig- nificant influence on the continuing fault-free In order to avoid the possibility of an operation of your appliance. electric shock ensure that the appliance is switched off before replacing the bulb.
  • Page 26 CLEANING AND MAINTENANCE  Ovens marked with the letter D are equipped with easily removable wire shelf supports. To remove them for cleaning use size 3 Allen key to undo the fixing screws from shelf support holders Once cleaned, replace the shelf supports in oven chamber.
  • Page 27 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a cross-head screwdriver undo the screws in the upper door slat (fig. B). In order to obtain easier access to the oven 2. Using a flat screwdriver remove the up- chamber for cleaning, it is possible to remove per door slat, prying it gently on the sides the door.
  • Page 28 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat Regular inspections (in the lower section of the door). Important! Risk of damage to glass Besides keeping the oven clean, you should: panel mounting. Do not lift the glass ●...
  • Page 29 CLEANING AND MAINTENANCE Pyrolytic cleaning Important! During the pyrolytic oven cleaning process the oven chamber can reach a very high The oven heats up to a temperature of about temperature. Consequently, the appliance 480°C. outer surfaces can heat up more than usual, To ensure safety, the door remains locked so keep children away at all times.
  • Page 30 CLEANING AND MAINTENANCE Important!  Touch MENU again. The display will Do not use other appliance functions. flash Pdur. When you start the pyrolytic cleaning pro- cess and inadvertently open the oven door, 88 08 the process will stop and door lock indica- tor will be flashing.
  • Page 31  call the service centre  some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the GRAM service centre check the following points that are presented in the table.

  • Page 32: Technical Data

    TECHNICAL DATA Voltage rating 230V~50 Hz Power rating max. 3,6 kW Oven dimensions H/W/D 59,5 / 59,5 / 57,5 cm Basic Information: The product meets the requirements of European standards EN 60335- 1; EN60335-2-6. The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1.
