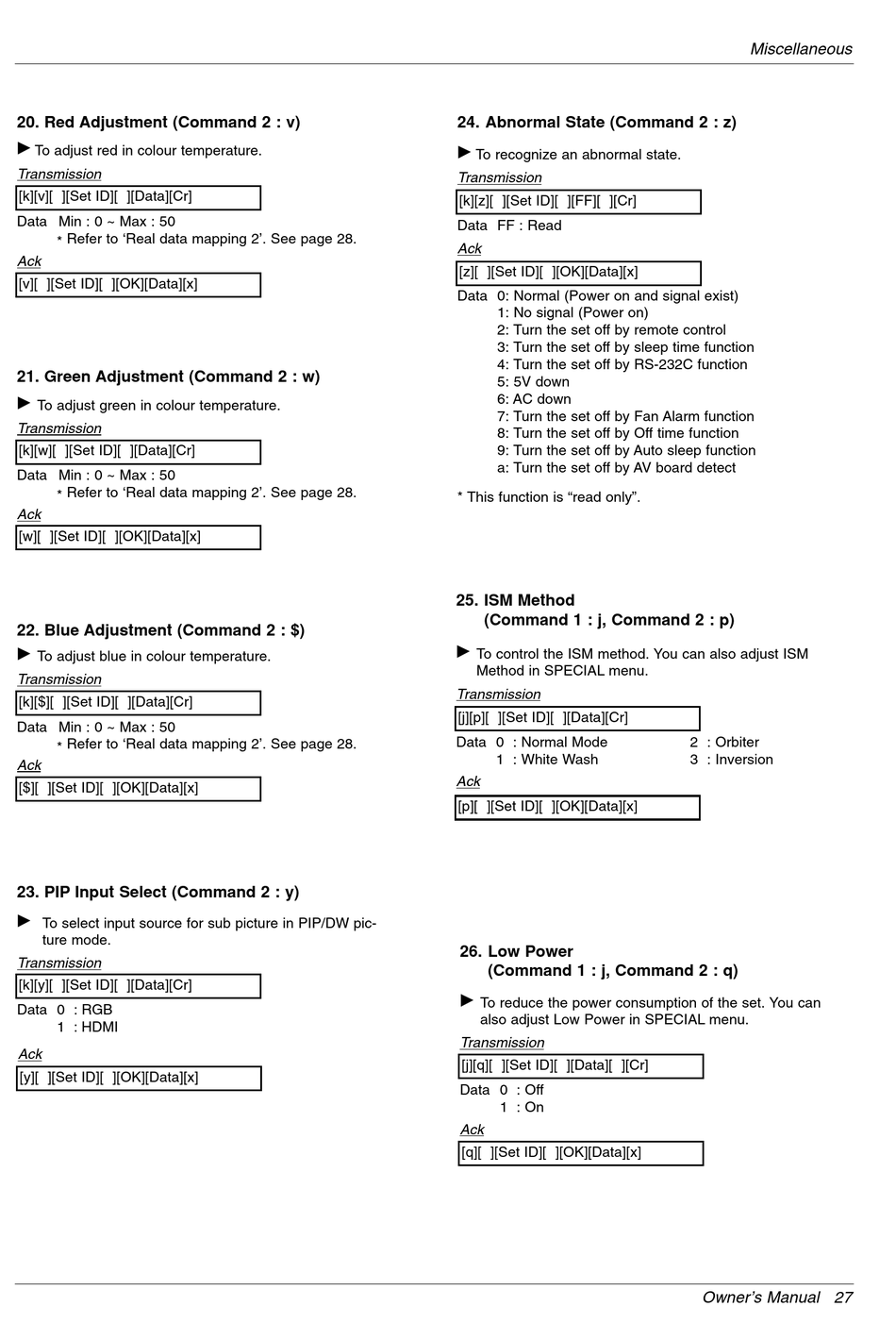

20. Red Adjustment (Command 2 : v)
G To adjust red in colour temperature.
Transmission
[k][v][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 50
* Refer to 'Real data mapping 2'. See page 28.
Ack
[v][ ][Set ID][ ][OK][Data][x]
21. Green Adjustment (Command 2 : w)
G To adjust green in colour temperature.
Transmission
[k][w][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 50
* Refer to 'Real data mapping 2'. See page 28.
Ack
[w][ ][Set ID][ ][OK][Data][x]
22. Blue Adjustment (Command 2 : $)
G To adjust blue in colour temperature.
Transmission
[k][$][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 50
* Refer to 'Real data mapping 2'. See page 28.
Ack
[$][ ][Set ID][ ][OK][Data][x]
23. PIP Input Select (Command 2 : y)
G To select input source for sub picture in PIP/DW pic-
ture mode.
Transmission
[k][y][ ][Set ID][ ][Data][Cr]
Data 0 : RGB
1 : HDMI
Ack
[y][ ][Set ID][ ][OK][Data][x]
24. Abnormal State (Command 2 : z)
G To recognize an abnormal state.
Transmission
[k][z][ ][Set ID][ ][FF][ ][Cr]
Data FF : Read
Ack
[z][ ][Set ID][ ][OK][Data][x]
Data 0: Normal (Power on and signal exist)
1: No signal (Power on)
2: Turn the set off by remote control
3: Turn the set off by sleep time function
4: Turn the set off by RS-232C function
5: 5V down
6: AC down
7: Turn the set off by Fan Alarm function
8: Turn the set off by Off time function
9: Turn the set off by Auto sleep function
a: Turn the set off by AV board detect
* This function is "read only".
25. ISM Method
(Command 1 : j, Command 2 : p)
G To control the ISM method. You can also adjust ISM
Method in SPECIAL menu.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 0 : Normal Mode
1 : White Wash
Ack
[p][ ][Set ID][ ][OK][Data][x]
26. Low Power
(Command 1 : j, Command 2 : q)
G To reduce the power consumption of the set. You can
also adjust Low Power in SPECIAL menu.
Transmission
[j][q][ ][Set ID][ ][Data][ ][Cr]
Data 0 : Off
1 : On
Ack
[q][ ][Set ID][ ][OK][Data][x]
Miscellaneous
2 : Orbiter
3 : Inversion
Owner's Manual 27
