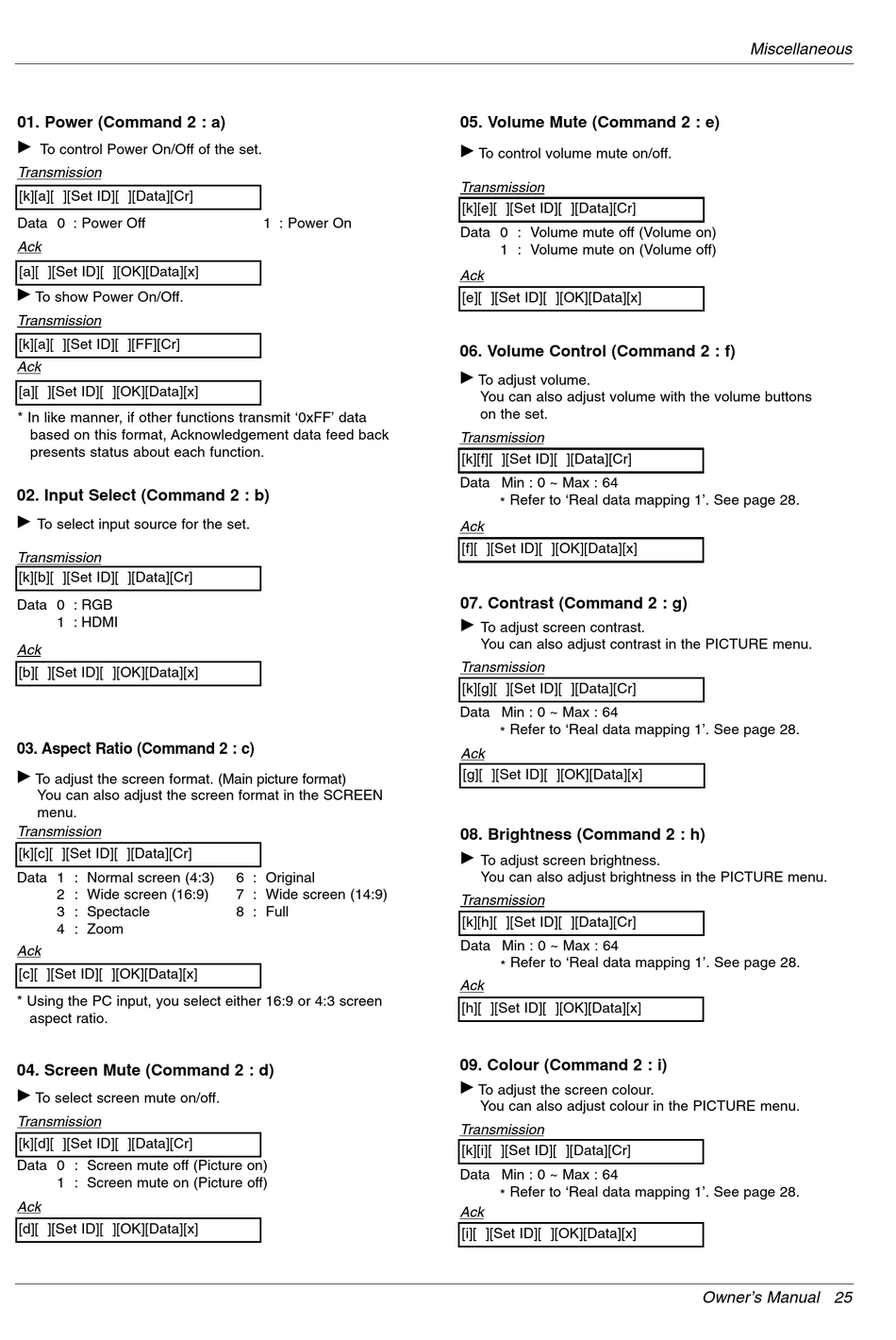

LG 42PC1M Series Owner's Manual page 25

Hide thumbs

Advertisement

01. Power (Command 2 : a)
G To control Power On/Off of the set.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off
Ack
[a][ ][Set ID][ ][OK][Data][x]
G To show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Ack
[a][ ][Set ID][ ][OK][Data][x]
* In like manner, if other functions transmit '0xFF' data
based on this format, Acknowledgement data feed back
presents status about each function.
02. Input Select (Command 2 : b)
G To select input source for the set.
Transmission
[k][b][ ][Set ID][ ][Data][Cr]
Data 0 : RGB
1 : HDMI
Ack
[b][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command 2 : c)
G To adjust the screen format. (Main picture format)
You can also adjust the screen format in the SCREEN
menu.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 1 : Normal screen (4:3)
2 : Wide screen (16:9)
3 : Spectacle
4 : Zoom
Ack
[c][ ][Set ID][ ][OK][Data][x]
* Using the PC input, you select either 16:9 or 4:3 screen
aspect ratio.
04. Screen Mute (Command 2 : d)
G To select screen mute on/off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Ack
[d][ ][Set ID][ ][OK][Data][x]
1 : Power On
6 : Original
7 : Wide screen (14:9)
8 : Full
05. Volume Mute (Command 2 : e)
G To control volume mute on/off.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume mute off (Volume on)
1 : Volume mute on (Volume off)
Ack
[e][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command 2 : f)
G To adjust volume.
You can also adjust volume with the volume buttons
on the set.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
* Refer to 'Real data mapping 1'. See page 28.
Ack
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command 2 : g)
G To adjust screen contrast.
You can also adjust contrast in the PICTURE menu.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
* Refer to 'Real data mapping 1'. See page 28.
Ack
[g][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command 2 : h)
G To adjust screen brightness.
You can also adjust brightness in the PICTURE menu.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
* Refer to 'Real data mapping 1'. See page 28.
Ack
[h][ ][Set ID][ ][OK][Data][x]
09. Colour (Command 2 : i)
G To adjust the screen colour.
You can also adjust colour in the PICTURE menu.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
* Refer to 'Real data mapping 1'. See page 28.
Ack
[i][ ][Set ID][ ][OK][Data][x]
Miscellaneous
Owner's Manual 25
