Wireless N300 Ceiling Access Point
Model: W40AP
Package Contents
Access point * 1
Bracket * 1
Power adapter * 1
Mounting accessory (including sleeve anchors and screws) * 1
Quick installation guide * 1
If any item is incorrect, missing, or damaged, please keep the original package and contact the local reseller or distributor
immediately.
For more product or function details, please go to www.ip-com.com.cn to download the user
Quick Installation Guide
guide.
Advertisement
Related Manuals for IP-COM W40AP
Summary of Contents for IP-COM W40AP
-

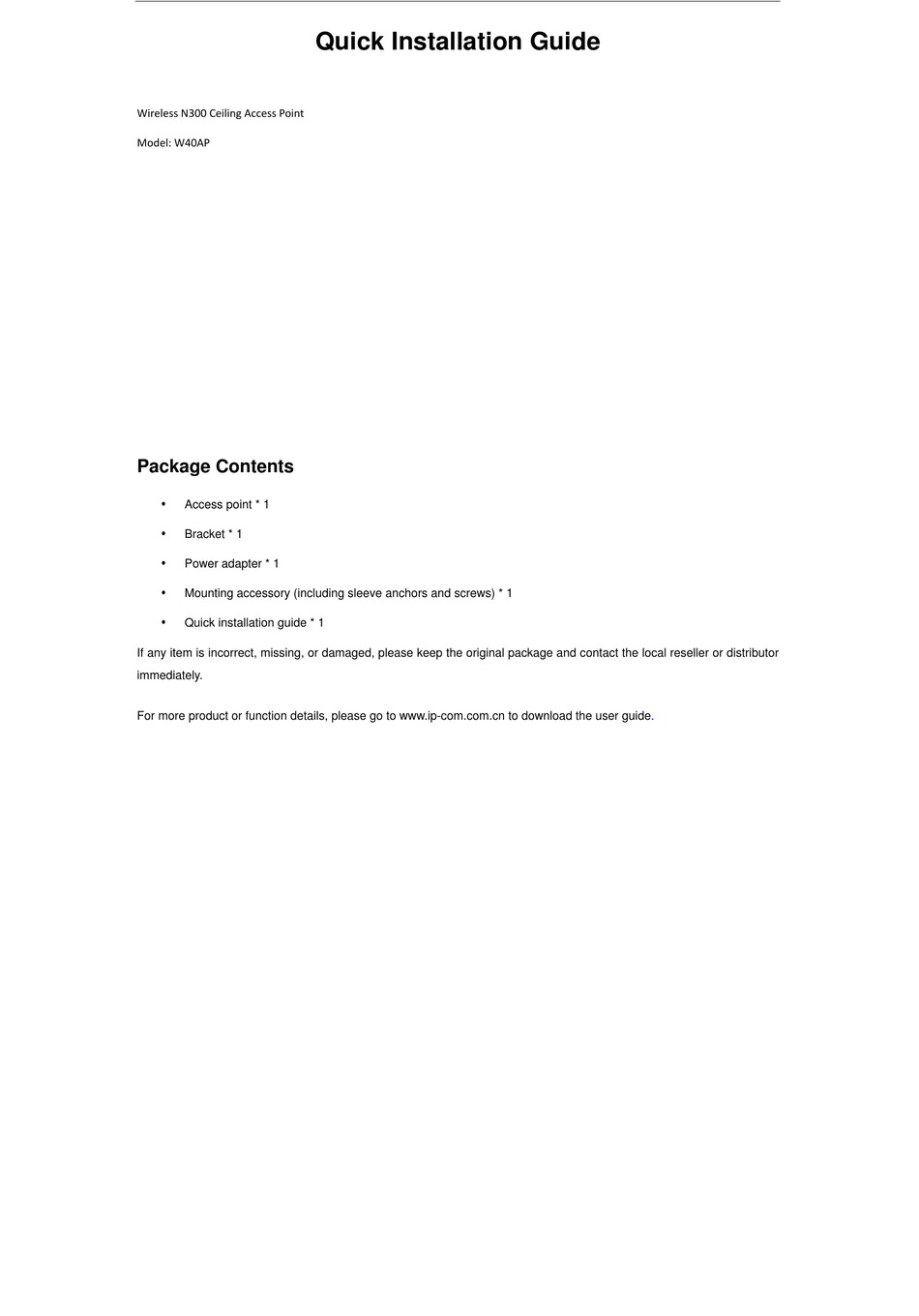

Page 1: Quick Installation Guide
Quick installation guide * 1 If any item is incorrect, missing, or damaged, please keep the original package and contact the local reseller or distributor immediately. For more product or function details, please go to www.ip-com.com.cn to download the user guide. ... - Page 2 1. Know Your AP Status Description indicator Solid on The system is starting. If the indicator is still solid on after the AP finishes startup, it indicates that the system is faulty. SYS Blinking The AP is working properly. Off ...
- Page 3 Port / Button Description It is a 10/100 Mbps auto-negotiation port used to transmit data or supply PoE power for the AP using Ethernet cable. PoE devices complied with IEEE 802.3af or IEEE 802.3at standard can supply power to the AP. It is a DC power jack used to connect to the included power adapter. ...
- Page 4 2. Install the AP Tip: You may need a rubber hammer, a marker, a hammer drill, a drill bit, a screwdriver, and a ladder for the installation. Please prepare them yourself. ❶ Position bracket onto celling mark screw holes celling with marker.
- Page 5 ❹ Align the screw holes with the holes in the ceiling, and then use the included screws to fix the bracket. ...
- Page 6 ❺ Connect an Ethernet cable (CAT5 or better) to the LAN port of the AP. If you choose to power on the AP by DC supply, connect the PWR port of the AP using the power adapter included in the package. ❻...
- Page 7 3. Set Up Your WiFi Network Note: PoE supply is used as an example in all the setup instructions below. Scenario 1: Set up WiFi network without a management device for IP-COM AP Tip: Connect one AP to your PoE switch first. After configuring the AP, connect another AP, perform ❸, ❹, and on it, and so on.
- Page 8 ❷ Configure the IP address of your computer (Example: Win7) Right-click the network icon on the lower-right corner of your computer. Click Open Network and Sharing Center, Local Area Connection, and then Properties. Double-click Internet Protocol Version 4 (TCP/IPv4), select Use the following IP address, set IP address to 192.168.0.x (x: 2 to 253.
- Page 9 Change the IP address of the APClick Network, LAN Setup. Change the IP address of the AP to 192.168.0.x (x: 2 to 253), and ensure that the new IP address has not been used in this network, then click Save. For example, you can set the new IP address of the first AP to 192.168.0.201, and the new IP address of the second AP to 192.168.0.202.
- Page 10 Scenario 2: Set up WiFi network with an IP-COM AP Controller ❶ Connect devices Use Ethernet cables to connect APs to the PoE ports of the switch, and your computer to the IP-COM AP Controller (AC). Refer to the following figure for detailed connection.
- Page 11 Scenario 3: Set up WiFi network with an IP-COM router that can manage APs ❶ Connect devices Use Ethernet cables to connect APs to the PoE ports of the switch, and your computer to the IP-COM router. Refer to the following figure for detailed connection.
- Page 12 Ensure that all your Ethernet cables are properly connected. If there is no AC or IP-COM router in the network, ensure that the IP address of your computer has been set to 192.168.0.x (x: 2 to 253), and the IP address is not used by any other devices in the same network.
- Page 13 This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. The mains plug is used as disconnect device, the disconnect device shall remain readily operable. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable. Declaration of Conformity Hereby, IP‐COM NETWORKS Co., LTD. declares that the radio equipment type W40AP is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.ip‐com.com.cn/en/ce.html Operate Frequency: 2.4GHz: EU/2.412GHz‐2.472GHz EIRP Power (Max.): 2.4GHz: 19.81 dBm Software Version: V1.0.0.1 ...
- Page 14 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 15 RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys an new electrical or electronic equipment.
