Terminal Identification; Terminal Legend; Led Diagnostics; Enclosure Dimensions - Altronix LPS3C24X220 Installation Instructions

Terminal Identification:

Terminal Legend

AC/AC
- BAT +
- DC +

LED Diagnostics:

Red (DC) Green (AC)
ON
ON
ON OFF
OFF ON
OFF OFF
4.5"
(114.3mm)
1.25"
(31.75mm)
1.5"
(38.1mm)
2.0"
(50.8mm)
2.0"
(50.8mm)
5.0"
(127.0mm)
1.25"
(31.75mm)
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IILPS3C24X220 - Rev. 121703
Function/Description
Low voltage AC input (28VAC 100VA).
Stand-by battery connections.
24VDC @ 2.5 amp continuous output.
Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output.
Loss of AC. Discharged or missing stand-by battery. No DC output.

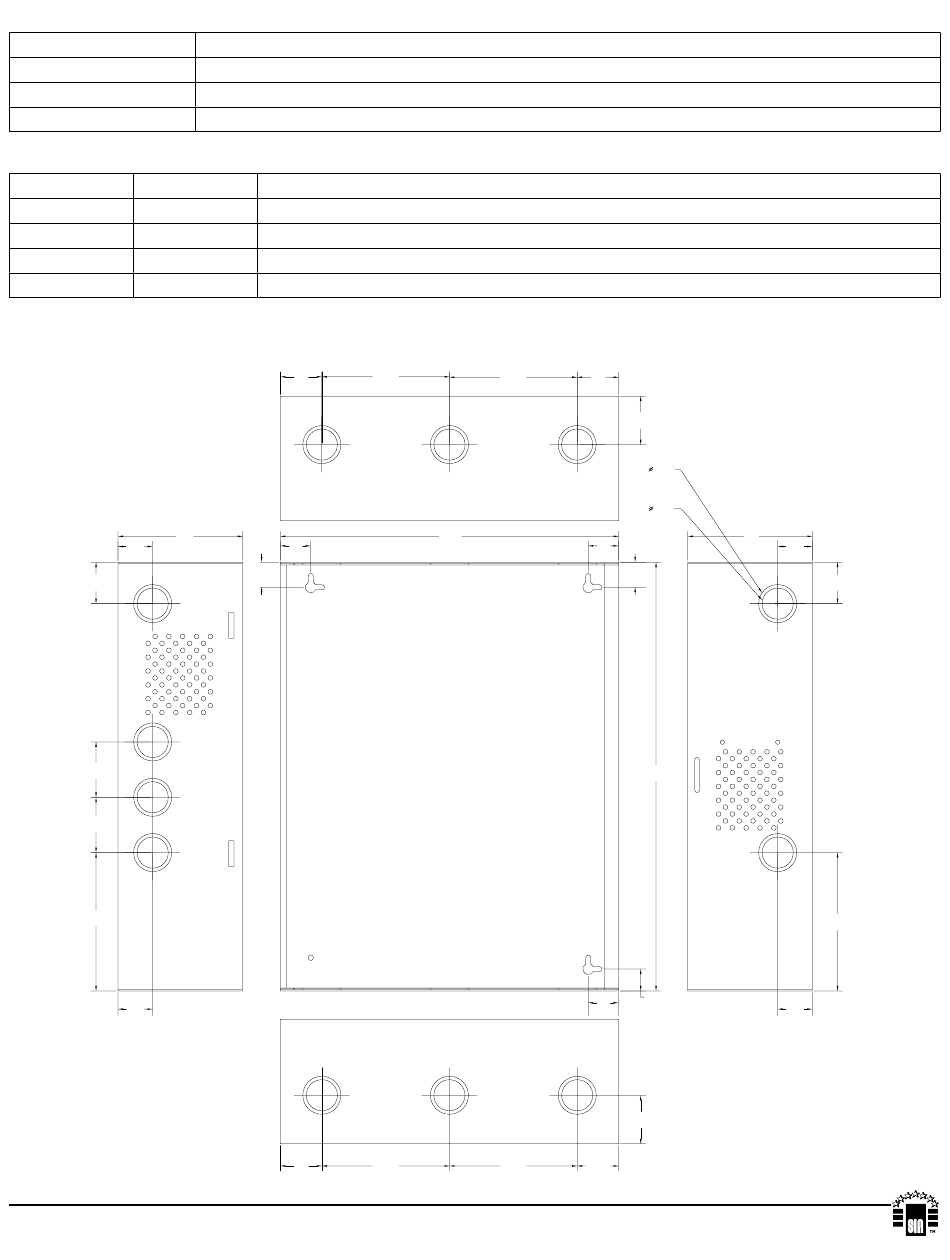

Enclosure Dimensions (H x W x D approximate):
15.5" x 12" x 4.5" (393.7mm x 304.8mm x 114.3mm)
1.5"
4.615"
(38.1mm) (117.22mm)
1.1"
(27.94mm)
0.91"
(23.114mm)
1.5" 4.615"
(38.1mm) (117.22mm)
1.5"
4.615"
(117.22mm) (38.1mm)
12.23"
(310.64mm)
1.1"
(27.94mm)
1.1"
(27.94mm)
4.615" 1.5"
(117.22mm) (38.1mm)
G15N
1.75"
(44.45mm)
1.375"
(34.925mm)
1.125"
(28.575mm)
4.5"
(114.3mm)
1.25"
(31.75mm)
0.91"
(23.114mm)
15.5"
(393.7mm)
0.79"
(20.06mm)
1.25"
(31.75mm)
1.75"
(44.45mm)
1.5"
(38.1mm)
5.0"
(127.0mm)
MEMBER
