24 en | Installing the In-Ceiling Mount

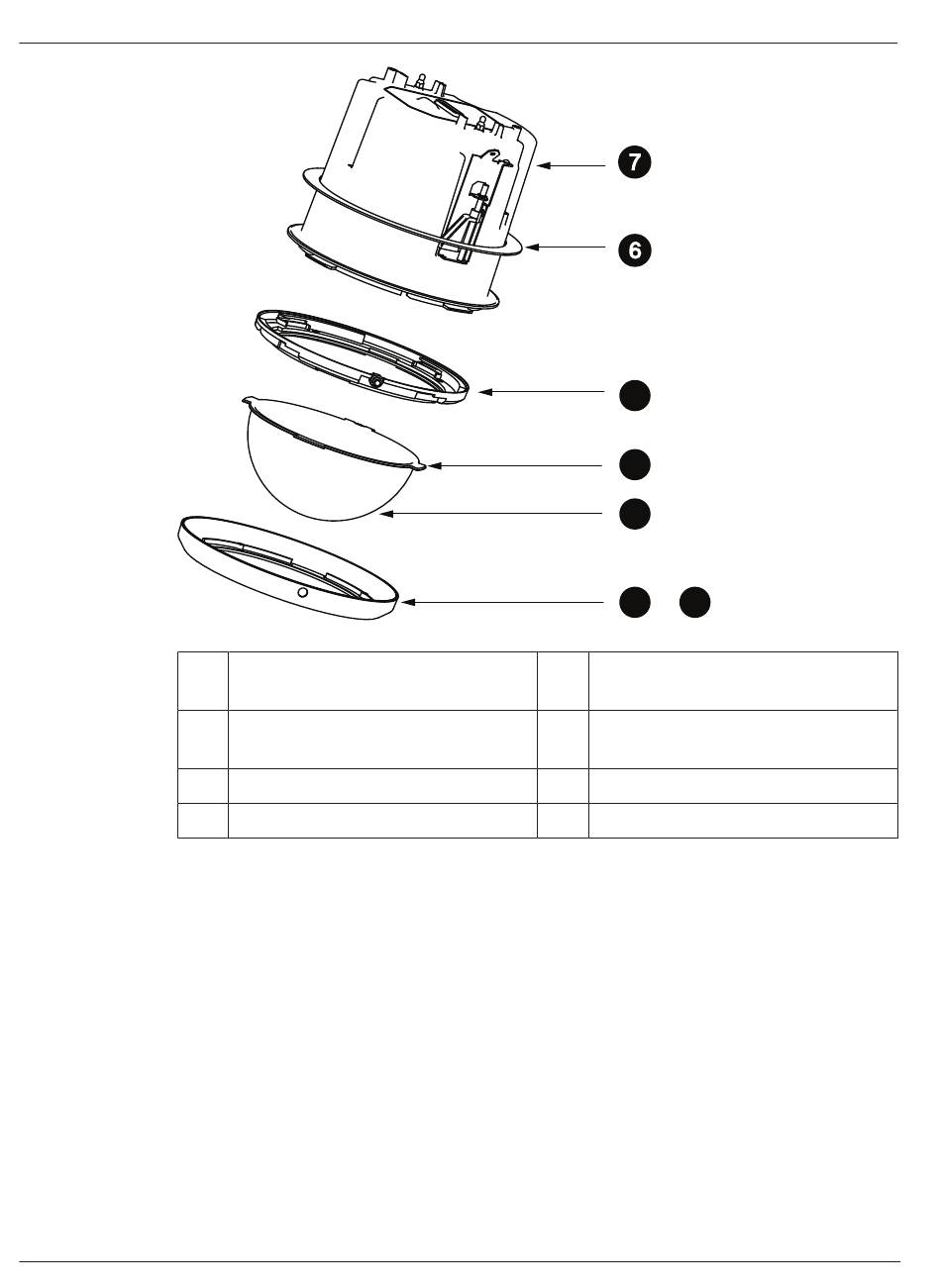

Figure 7.4: In-ceiling (IP54 Rating) Installation Diagram
1.
2.
7.8

Attach Housing to the Interface Box

The In-Ceiling Housing is attached to the Interface Box and secured by two (2) thumbscrews.
2019-09 | 0.8 |
1 White Trim Ring (factory-installed on
dome bubble)
2 Black Trim Ring (supplied in the
shipping box of the camera)
3 Bubble
4 Trim Ring Gasket
Place the gasket (provided in the shipping box of the camera) over the top of the in-
ceiling housing.
Carefully slide the gasket down over the housing, until it rests on the flange of the
housing.
5 Inner Ring
6 Ceiling (IP54 housing) Gasket
7 In-ceiling housing
Installation Manual
AUTODOME IP starlight 7000i
5
4
3
1 2
