Bosch AUTODOME IP 4000i User Manual

Hide thumbs

Advertisement

AUTODOME IP 4000i/AUTODOME IP 5000i/
AUTODOME IP 5000i IR
NDP‑4502‑Z12│NDP‑4502‑Z12C│NDP‑5502‑Z30│NDP‑5502‑Z30C│
NDP‑5502‑Z30L
en
User Manual

Advertisement

Table of Contents
loading

  Also See for Bosch AUTODOME IP 4000i

  Summary of Contents for Bosch AUTODOME IP 4000i

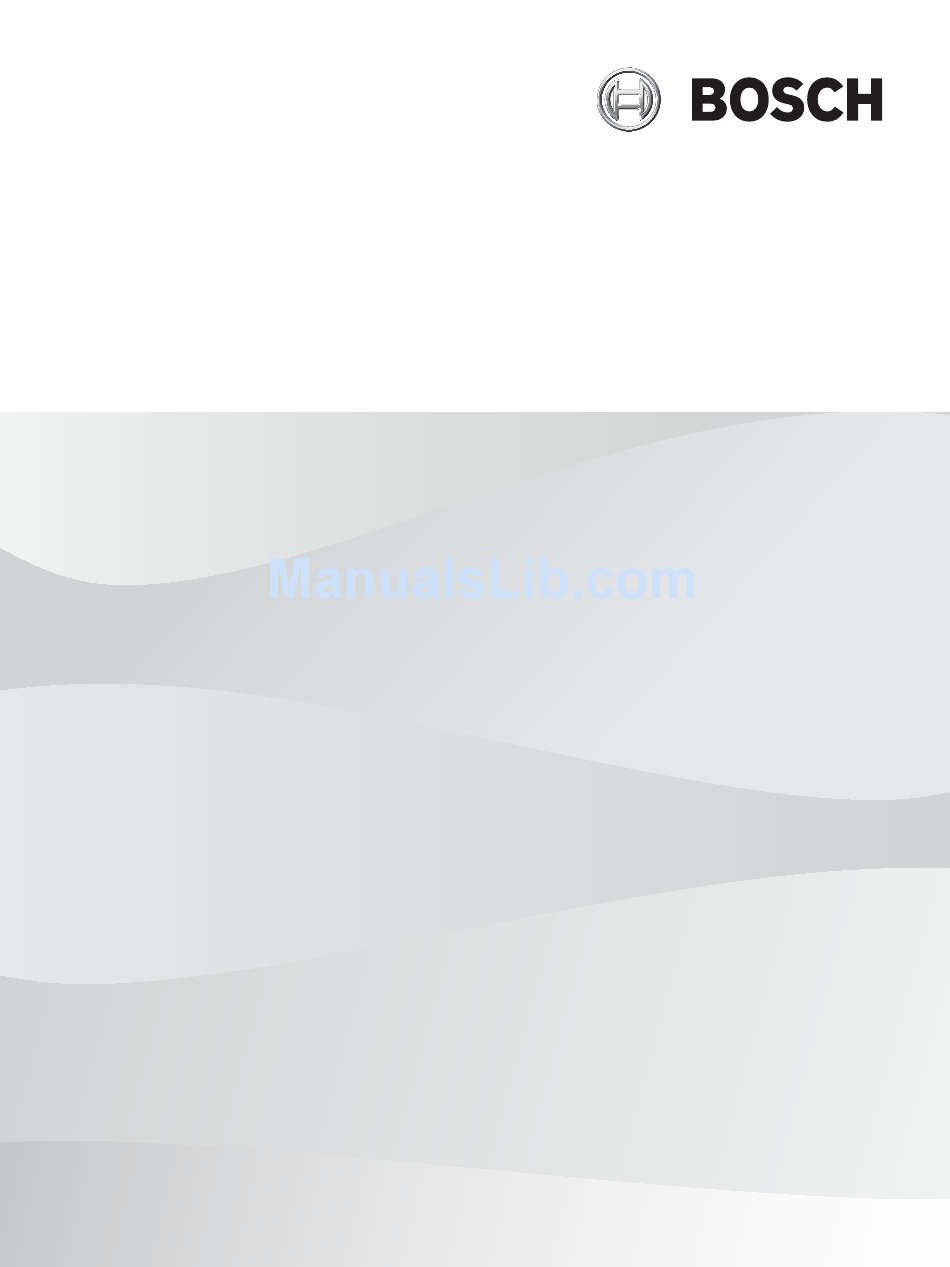

  • Page 1 AUTODOME IP 4000i/AUTODOME IP 5000i/ AUTODOME IP 5000i IR NDP‑4502‑Z12│NDP‑4502‑Z12C│NDP‑5502‑Z30│NDP‑5502‑Z30C│ NDP‑5502‑Z30L User Manual...
  • Page 3: Table Of Contents

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Table of contents | en AUTODOME IP 5000i IR Table of contents Browser connection Systems requirements Establishing the connection Password protection in camera System overview Live page Configuration Playback Operation via the browser Live page 3.1.1...
  • Page 4 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Table of contents AUTODOME IP 5000i IR 6.10 Privacy Masks 6.11 Lens Settings 6.12 PTZ Settings 6.13 Pre-positions and Tours 6.14 Sectors 6.15 Miscellaneous 6.16 Illuminator 6.17 Audio 6.18 Pixel Counter Recording Introduction to recording Storage Management 7.2.1...
  • Page 5 AUTODOME IP 4000i/AUTODOME IP 5000i/ Table of contents | en AUTODOME IP 5000i IR 11.5 Diagnostics 11.6 System Overview AUX Commands Bosch Security Systems User Manual 2018.05 | 1.1 |...
  • Page 6: Browser Connection

    If you cannot connect, the unit may have reached its maximum number of connections. Depending on the device and network configuration, each unit can have up to 50 web browser connections, or up to 100 connections via Bosch Video Client or Bosch Video Management System.
  • Page 7 AUTODOME IP 4000i/AUTODOME IP 5000i/ Browser connection | en AUTODOME IP 5000i IR When you use Configuration Manager to access your device for the first time, you must set the initial password of the device in Configuration Manager. The Users section (General > Unit Access >...
  • Page 8: System Overview

    Configuration To configure the unit, click this icon. Links To navigate to the Bosch download store, click this icon. To get context sensitive help for a particular page, click this icon. Note: None of the pages are accessible until after you set a service-level password.
  • Page 9: Operation Via The Browser

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Operation via the browser | en AUTODOME IP 5000i IR Operation via the browser Live page 3.1.1 Connection Stream 1 Select this option to display stream 1 of the camera. Stream 2 Select this option to display stream 2 of the camera.
  • Page 10: Aux Control

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Operation via the browser AUTODOME IP 5000i IR 3.1.4 AUX Control With the tab AUX Control you can enter pre-programmed keyboard control commands. These commands are composed of a command number plus the appropriate function key (Show pre- position, Set pre-position, AUX on, or AUX off).
  • Page 11: Recording Status

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Operation via the browser | en AUTODOME IP 5000i IR The OSD displays the message, “Auto Focus: ONE PUSH.” Nightmode Click this button to activate/deactivate night mode for the camera. After a few seconds, the camera switches modes.
  • Page 12: Status Icons

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Operation via the browser AUTODOME IP 5000i IR If you hover over the middle icon, the CPU load is shown. If you hover over the right-hand icon, the network load is shown. This information can help with problem solving or when fine tuning the unit. For example: –...
  • Page 13: Selecting The Recording Stream

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Operation via the browser | en AUTODOME IP 5000i IR 3.2.1 Selecting the recording stream On the left side of the browser, expand the Connection group if necessary. To view a recording stream: Click the Recording drop-down arrow to see the options.
  • Page 14: General

    A check mark in this check box indicates that at least one certificate is loaded onto the camera. If no certificates are loaded, then “No certificate installed” appears to the right of the text. The Escrypt certificate is a root certificate for Bosch Security Systems that proves that the device meets the following criteria: –...
  • Page 15: Date/Time

    AUTODOME IP 4000i/AUTODOME IP 5000i/ General | en AUTODOME IP 5000i IR – user is the middle authorization level. At this level you can operate the device, play back recordings, and also control camera, for example, but you cannot change the configuration.
  • Page 16: Display Stamping

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | General AUTODOME IP 5000i IR If you decide to create alternative daylight saving time dates by editing the table, note that values occur in linked pairs (DST start and end dates). First, check the time zone setting. If it is not correct, select the appropriate time zone and click Set.
  • Page 17 AUTODOME IP 4000i/AUTODOME IP 5000i/ General | en AUTODOME IP 5000i IR Time stamping This field sets the position of the time overlay. It can be displayed at the Top, at the Bottom or at a position of your choice that you can then specify using the Custom option. Or it can be set to Off for no overlay information.
  • Page 18: Gb/T 28181

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | General AUTODOME IP 5000i IR Telemetry region Select On to set or to edit the position of the telemetry information (azimuth and elevation (pan/tilt position)) and the zoom factor on the OSD. Refer to the section ”PTZ Settings, page 37“...
  • Page 19 AUTODOME IP 4000i/AUTODOME IP 5000i/ General | en AUTODOME IP 5000i IR Server IP address Enter the server IP address. Device ID Enter the ID of the device. Device port Enter the number of the device port. The default is 5060.
  • Page 20: Web Interface

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Web Interface AUTODOME IP 5000i IR Web Interface Appearance You can adapt the appearance of the web interface and change the website language to meet your requirements. GIF or JPEG images can be used to replace the company and device logos. The image can be stored on a web server (for example, http://www.myhostname.com/images/logo.gif).
  • Page 21: Live Functions

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Web Interface | en AUTODOME IP 5000i IR Show VCA items Shows alarm fields, lines and routes configured for the video analytics in the following colors: – Green: Fields, lines and routes used in a task are displayed in green. They can be edited but not deleted.
  • Page 22 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Web Interface AUTODOME IP 5000i IR Allow local recording Here you can specify whether the icon for saving (recording) video sequences on the local memory should be displayed below the live image. Video sequences can only be saved if this icon is visible.
  • Page 23: Camera

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR Camera Installer Menu Base frame rate Select the base frame rate for the camera. Note: Shutter times, frame rates, and the analog output (if present) are affected by this value.
  • Page 24 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR The height of the camera must always be entered manually. Whenever possible, roll angle and tilt angle are provided by the camera itself. The focal length is provided, if the camera has a built-in lens.
  • Page 25 AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR Focal length [mm] Enter the focal length manually, or click the refresh icon to obtain values provided by any sensors that the camera may have. Alternatively, select the Calculate check box to obtain values based on the calibration elements marked on the image.
  • Page 26: Scene Mode

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR Notice! If the distance to the camera (geolocation) is not relevant, it is enough to determine height and focal length in relation to each other. This allows a simple calibration by marking 2-3 persons ‑...
  • Page 27: Color

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR Standard This mode is optimized for most standard scenes both indoor and outdoor but it avoids the limitations imposed by the sun or street lighting as available in sodium lighting mode.
  • Page 28 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR Option in field “White Additional Additional fields for NOTES balance” Input field configuration Basic auto RGB- R-weight The 3 “-weight” fields appear weighted G-weight only when the option in the field...
  • Page 29: Alc

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR B-gain In Manual white balance mode, adjust the blue gain slider to offset the factory white point alignment (reducing blue introduces more yellow). ALC mode Select the mode for automatic light-level control: –...
  • Page 30: Enhance

    Select Off to disable the feature. Note: When the camera is in an indoor room that often has smoke or has low-contrast and the camera monitors an area facing the outdoors (such as large windows), Bosch recommends to select option Auto.
  • Page 31 AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR Caution! The profiles are rather complex. They include a large number of parameters that interact with one another, so it is generally best to use the default profiles.
  • Page 32 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR The value entered here must be at least 10% higher than the value entered in the Target bit rate field. If the value entered here is too low, it will be adjusted automatically.
  • Page 33: Encoder Streams

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR I/P-frame delta QP This parameter sets the ratio of the I-frame quantization (QP) to the P-frame quantization (QP). For example, you can set a lower value for I-frames by moving the slide control to a negative value.
  • Page 34 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR Option selected for Stream 1 Options for Stream 2 (recording) (recording) 720p 720p D1 4:3 (cropped) 640x480 1080p 720p 1080p* D1 4:3 (cropped) 640x480 1280x1024 (cropped) * Note: This option is valid only if the option selected in the field Base frame rate in Camera >...
  • Page 35: Encoder Statistics

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR Profile number Default Profile name Description Profile 8 3G Optimized Ideal for encoding on a 3G uplink where bit rate limitations are critical. Note: Non-recording profiles (streams) are I-frame only.
  • Page 36: Lens Settings

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR Notice! Draw the mask at 50% optical zoom or less for improved masking performance. Draw the mask 10% larger than the object to ensure that the mask completely covers the object as the camera zooms in and out.
  • Page 37: Ptz Settings

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR 6.12 PTZ Settings Auto pan speed Continuously pans the camera at a speed between right and left limit settings. Type a value between 1 and 60 (expressed in degrees), inclusive. The default setting is 30.
  • Page 38: Pre-Positions And Tours

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR Pan limit right Set the appropriate pan limit on the right. Tour A / Tour B Starts and stops the recording of a recorded (guard) tour. The camera can make up to two (2) recorded tours. A recorded tour saves all manual camera movements made during the recording, including its rate of pan, tilt and zoom speeds, and other lens setting changes.
  • Page 39: Sectors

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR – Using the Live preview window as reference, navigate to the scene that you want to define as a pre-position. Click the button Add pre-position (“+”) to define the pre-position.
  • Page 40: Miscellaneous

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Camera AUTODOME IP 5000i IR 6.15 Miscellaneous Fast address This parameter allows the appropriate camera to be operated via the numerical address in the control system. Enter a number between 0000 and 9999, inclusive, to identify the camera.
  • Page 41: Pixel Counter

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Camera | en AUTODOME IP 5000i IR Recording format Select a format for audio recording. The default value is AAC 48 kbps. You can select AAC 80 kbps, G.711 or L16 depending on the required audio quality or sampling rate.
  • Page 42: Recording

    The Storage overview field displays the local media. Note: The recording performance of the SD card depends on the speed (class) and the performance of the SD card. Bosch recommends an SD card of Class 6 or higher. 2018.05 | 1.1 |...
  • Page 43: Activating And Configuring Storage Media

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Recording | en AUTODOME IP 5000i IR Note: For more information about Automatic Network Replenishment (ANR), refer to the White Paper “ANR 2.0 Automatic Network Replenishment (ANR),” available on the product page for your camera. Access the product page on the online product catalog from http:// www.boschsecurity.com/corporate/product-catalog/index.html.
  • Page 44 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Recording AUTODOME IP 5000i IR Stream profile settings Select the encoder profile setting that is to be used with stream 1 and 2 when recording. This selection is independent of the selection for live stream transmission. (The properties of the encoder profiles are defined on the Encoder Profile page.)
  • Page 45: Maximum Retention Time

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Recording | en AUTODOME IP 5000i IR – Video loss Select the Virtual alarm sensors that are to trigger a recording, via RCP+ commands or alarm scripts, for example. Maximum Retention Time Recordings are overwritten when the retention time entered here has expired.
  • Page 46: Recording Status

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Recording AUTODOME IP 5000i IR Activating the Recording After completing configuration you must activate the recording scheduler and start the recording. Once recording is underway, the Recording Profiles and Recording Scheduler pages are deactivated and the configuration cannot be modified.
  • Page 47: Alarm

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Alarm | en AUTODOME IP 5000i IR Alarm Alarm Connections You can select how the camera responds to an alarm. In the event of an alarm, the unit can automatically connect to a pre-defined IP address. You can enter up to ten IP addresses to which the camera will connect in sequence in the event of an alarm, until a connection is made.
  • Page 48 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Alarm AUTODOME IP 5000i IR Remote port Depending on the network configuration, select a browser port here. The ports for HTTPS connections will be available only if the On option is selected in the SSL encryption parameter.
  • Page 49: Video Content Analysis (Vca)

    A separate Help file provides information about configuring for the VCA settings. Note: Full VCA configuration and Help is only available on the web browser when MPEG ActiveX software from Bosch is installed on your computer. MPEG ActiveX software is available from the Bosch Security Systems DownloadStore (https://downloadstore.boschsecurity.com/) To open the VCA Help in the web browser: Select Configuration >...
  • Page 50 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Alarm AUTODOME IP 5000i IR Alarm status The alarm status is displayed here for information purposes. This means you can check the effects of your settings immediately. Aggregation time [s] Set an aggregation time of between 0 and 20 seconds. The aggregation time always starts when an alarm event occurs.
  • Page 51: Audio Alarm

    Name The name makes it easier to identify the alarm in extensive video monitoring systems, for example with the VIDOS and Bosch Video Management System programs. Enter a unique and clear name here. Do not use any special characters, for example &, in the name. Special characters are not supported by the system's internal management.
  • Page 52: Alarm E-Mail

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Alarm AUTODOME IP 5000i IR Threshold Set up the threshold on the basis of the signal visible in the graphic. You can set the threshold using the slide control or, alternately, you can move the white line directly in the graphic using the mouse.
  • Page 53: Alarm Task Editor

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Alarm | en AUTODOME IP 5000i IR Sender address Enter a unique name for the e-mail sender, for example the location of the device. This will make it easier to identify the origin of the e-mail.
  • Page 54 AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Alarm AUTODOME IP 5000i IR – Time range: If you select this option, then two input fields appear to the right. In these fields, enter the time range for the activation of the alarm in hours and minutes. (The default values are 00:00 and 00:01.)
  • Page 55: Interfaces

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Interfaces | en AUTODOME IP 5000i IR Interfaces Alarm Inputs Active Configure the alarm triggers for the unit. Select N.C. (Normally Closed) if the alarm is to be triggered by opening the contact. Select N.O. (Normally Open) if the alarm is to be triggered by closing the contact.
  • Page 56: Network

    If a DHCP server is employed in the network for the dynamic assignment of IP addresses, you can activate acceptance of IP addresses automatically assigned to the camera. Certain applications (Bosch Video Management System, Archive Player, Configuration Manager) use the IP address for the unique assignment of the unit. If you use these...
  • Page 57 AUTODOME IP 4000i/AUTODOME IP 5000i/ Network | en AUTODOME IP 5000i IR Subnet mask Enter the appropriate subnet mask for the selected IP address here. Gateway address If you want the unit to establish a connection to a remote location in a different subnet, enter the IP address of the gateway here.
  • Page 58: Dyndns

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Network AUTODOME IP 5000i IR Notice! If you want to allow only secure connections with SSL encryption, you must select the Off option for each of the parameters HTTP browser port, RCP+ port 1756 and Telnet support.
  • Page 59: Advanced

    This field identifies any cloud-based services with which the camera communicates. – If you have registered the device on a cloud-based service such as Bosch Remote Portal, then this field identifies this fact (“Registered on Bosch Remote Portal”). Note: The button (Connect to Bosch Remote Portal) to connect to the device with that service is active.
  • Page 60: Network Management

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Network AUTODOME IP 5000i IR To configure the unit, you must connect the camera directly to a computer using a network cable. This is because communication via the network is not enabled until the Identity and Password parameters have been set and successfully authenticated.
  • Page 61: Multicast

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Network | en AUTODOME IP 5000i IR Quality of service The camera offers Quality of Service (QoS) configuration options to ensure fast network response to PTZ data and images. Quality of Service (QoS) is the set of techniques to manage network resources.
  • Page 62: Image Posting

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Network AUTODOME IP 5000i IR Notice! Duplication of data places a heavy demand on the unit and can lead to impairment of the image quality under certain circumstances. Port Assign a different port to each data stream if there are simultaneous data streams at the same multicast address.
  • Page 63: Accounts

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Network | en AUTODOME IP 5000i IR Enable Check the box to enable best face posting. File format Select the type of image to be sent. Target Select the target account for best face posting.
  • Page 64: Service

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | Service AUTODOME IP 5000i IR Service 11.1 Maintenance Update server The address of the update server appears in the address box. Click Check to make a connection to this server. Select the appropriate version for your camera to download the firmware from the server.
  • Page 65: Logging

    AUTODOME IP 4000i/AUTODOME IP 5000i/ Service | en AUTODOME IP 5000i IR – Click Upload. – Generate signing request for a signing authority to create a new certificate: – Fill in all the required fields and click Generate. – Generate certificate to create a new self-signed certificate: –...
  • Page 66: Aux Commands

    AUTODOME IP 4000i/AUTODOME IP 5000i/ en | AUX Commands AUTODOME IP 5000i IR AUX Commands Function Command Description On/Off AutoPan without limits (Continuous) On/Off Auto Pan between limits On/Off Run Custom Pre-Position Tour On/Off Run Pre-Position Tour On/Off AutoPivot Enable...
  • Page 68 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2018...
