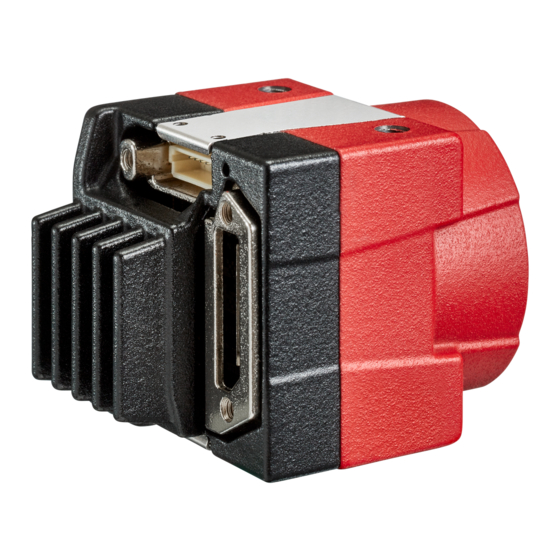

Allied Vision Alvium Series User Manual
Usb vision cameras
Hide thumbs
Also See for Alvium Series:
- Quick start manual (330 pages) ,
- Safety and usage instructions (330 pages) ,
- User manual (320 pages)
Related Manuals for Allied Vision Alvium Series
Summary of Contents for Allied Vision Alvium Series
-
Page 1: User Guide
USB3 V ISION AMERAS Alvium USB Cameras User Guide V2.0.0 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2019-Oct-18... -
Page 2: Alvium Usb Cameras At A Glance
Alvium USB cameras at a glance Alvium USB cameras at a glance Read this document carefully Learn to avoid damage to your Alvium USB camera and use it in the most safe and efficient way. Bandwidth and maximum frame rate The default bandwidth for Alvium USB is 200 MBps. -
Page 3: Contact Us
T// +1 978 225 2030 California: +1 408 721 1965 Asia-Pacific T// +65 6634 9027 China T// +86 21 64861133 Headquarters Allied Vision Technologies GmbH Taschenweg 2a 07646 Stadtroda, Germany T// +49 36428 677-0 F// +49 36428 677-28 Alvium USB Cameras User Guide V2.0.0... -
Page 4: Table Of Contents
Contents Contents Alvium USB cameras at a glance ..........2 Shipping contents . - Page 5 Contents USB 3.1 Gen 1 ............... . . 27 USB3 Vision 1.0.1 .
- Page 6 Contents Type 1/2.5 ................61 Type 1/3.
- Page 7 Contents Troubleshooting common issues ............. 98 Camera recognition .
-
Page 8: Document History And Conventions
Document history and conventions This chapter includes: Document history ..............9 Conventions used in this user guide........9 Naming and terms ..............11 Terms and acronyms ............. 11 Alvium USB Cameras User Guide V2.0.0... -
Page 9: Document History
Document history and conventions Document history Version Date Remarks V2.0.0 2019-Oct-18 • Added Alvium 1800 U-050 and U -120 models. • Updated contents about bandwidth. • Updated screenshots for camera driver installation. • Added Dark current compensation on page 90. •... -
Page 10: Symbols And Notes
Document history and conventions Symbols and notes CAUTION Personal injuries Precautions are described. NOTICE Material damage Precautions are described. Practical tip Additional information helps to understand or ease handling the camera. Avoiding malfunctions Precautions are described. Additional information Web address or reference to an external source with more information is shown. Alvium USB Cameras User Guide V2.0.0... -
Page 11: Naming And Terms
Document history and conventions Naming and terms Camera model naming Alvium cameras are named to identify model properties. For example, Alvium 1800 U-500c is composed of: Alvium 1800 Content Camera Camera series details Interface Resolution Color/ series monochrome Examples Alvium 1500: Video4Linux Access C: MIPI CSI-2 500: 5.0 MP... - Page 12 Document history and conventions Term or acronym Description Reference GPIOs General purpose inputs and outputs GPIOs description on page 78 (non-isolated) H × V Horizontal × Vertical (sensor resolution) Specifications on page 26 Kilobyte Specifications on page 26 MBps Megabytes per second Specifications on page 26 open...
-
Page 13: Compliance, Safety, And Intended Use
Compliance, safety, and intended use This chapter includes: Compliance notifications ............14 Camera applications and intended use ........ 17 Copyright and trademarks ............ 18 Your safety................19 Product safety ............... 20 Alvium USB Cameras User Guide V2.0.0... -
Page 14: Compliance Notifications
Compliance, safety, and intended use Compliance notifications For customers in Europe For customers in the USA Closed housing cameras only: FCC Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 15: For Customers In Canada
Compliance, safety, and intended use Party issuing Supplier's Declaration of Conformity Allied Vision Technologies GmbH Taschenweg 2a 07646 Stadtroda Germany T// +49 (36428) 677-106 quality@alliedvision.com Responsible Party - U.S. Contact Information Allied Vision Technologies, Inc. 102 Pickering Way – Suite 502... -
Page 16: Bare Board And Open Housing Cameras
Interface cables, power cables, and I/O cables are sensitive to electromagnetic interference. • Use shielded cables only. • We recommend using cables offered by Allied Vision. • Avoid coiling. • We recommend using GPIOs only in environments with low electromagnetic interference. -
Page 17: Camera Applications And Intended Use
• The camera-supporting software can be obtained and installed separately from the camera. Usage of the software is solely the responsibility of the user. • The camera must not be opened. For all repair tasks, contact Allied Vision or one of Allied Vision's authorized representatives. -
Page 18: Copyright And Trademarks
All trademarks, logos, and brands cited in this document are property and/or copyright material of their respective owners. Use of these trademarks, logos, and brands does not imply endorsement. Copyright © 2019 Allied Vision Technologies GmbH. All rights reserved. Alvium USB Cameras User Guide V2.0.0... -
Page 19: Your Safety
Compliance, safety, and intended use Your safety This section informs about issues related to your personal safety. Descriptions explain how to avoid hazards and operate Alvium USB cameras safely. Handling lens mounts The lens mount thread has sharp edges. Be careful these edges do not cut your skin when mounting or unmounting lenses. -
Page 20: Product Safety
Compliance, safety, and intended use Heat sink Camera housing Lens Max. 65 °C Base More information For more information on heat dissipation, see the Optimum Heat Dissipation for Housed Alvium Cameras application note at www.alliedvision.com/en/support/technical-documentation/ alvium-usb-documentation under Additional documents. Product safety To prevent material damage, read the following and understand how to safely handle and operate the camera. -
Page 21: Camera Power
Compliance, safety, and intended use PCBAs Alvium USB cameras enable access to PCBAs. Keep away from camera electronics to avoid damage. Camera power Operating the camera beyond the specified range damages the camera. Cameras are powered over USB. Alternatively, cameras can be powered using the I/O connector at a maximum input of 5.5 VDC, using a limited power source (LPS), according to IEC62368-1: 2014 (Second Edition) with maximum 1.5 A. -
Page 22: Camera Mounting
Proper cable handling enables reliable performance: • Use only shielded cables to avoid electromagnetic interferences. • Please use cables recommended by Allied Vision. • Avoid unnecessary bending to prevent damage to the cables. • Avoid coiling to prevent electromagnetic interference. -
Page 23: Optical Components
Compliance, safety, and intended use Observe for mounting bare board cameras: • Allow mechanical contact only at the mounting area. (This does not apply to the cooling area.) • Enable proper cooling at the cooling area, see Mounting bare board cameras on page 65. - Page 24 Compliance, safety, and intended use Lenses Maximum protrusion The sensor, filter, or lens can be damaged if a lens exceeding maximum protrusion is mounted to the camera. Use lenses with a maximum protrusion within camera specifications. Figure 2 shows maximum protrusion. For details, see Lens mounts and maximum protrusion on page 57.
-
Page 25: Heat Sinks And Conductive Media
Compliance, safety, and intended use Heat sinks and conductive media The camera can be damaged by overheating if heat sink or conductive media are not used properly. Heat sinks Adhere to the instructions and safety notes provided by the manufacturer of the heat sink. -
Page 26: Specifications
Specifications This chapter includes: Applied standards ..............27 Notes on specifications............28 Alvium 1800 U-050m/c ............30 Alvium 1800 U-120m/c ............33 Alvium 1800 U-500m/c ............36 Dimensions, mass, and temperature........40 Technical drawings ..............42 Lens mounts and maximum protrusion ....... 57 IR cut filter................ -
Page 27: Applied Standards
This enables to operate cameras with USB3 Vision, GigE Vision, or CoaXPress interfaces and Alvium USB cameras with a common software. GenICam consists of multiple modules for different tasks. Allied Vision cameras and software use these modules, like the SFNC that standardizes feature names and types via an XML file or the transport layer interface (GenTL) used to grab images. -
Page 28: Notes On Specifications
Specifications Notes on specifications This section defines the conditions for specifications stated in this chapter.. Sensor Absolute QE plots Measurements for color cameras were done with IR cut filter, measurements for monochrome and S-Mount cameras were done without optical filters. With optical filters, QE decreases by approximately 10 percent. -
Page 29: Triggering And Sensor Shutter Types
Specifications Bandwidth: Data is calculated for eight steps in a range of 200 MBps to 450 MBps. The default value for is 200 MBps for Alvium DeviceLinkThroughputLimit 1800 U cameras measured as average sensor readout. Bit depth: Values are calculated for Mono8. If you are using color formats or 10-bit or 12-bit pixel formats, frame rates fall below values for Mono8. -
Page 30: Alvium 1800 U-050M/C
Specifications Alvium 1800 U-050m/c Specification Feature 1800 U-050m (monochrome) 1800 U-050c (color) Sensor model ON Semiconductor PYTHON 480 Resolution 808 (H) × 608 (V); 0.5 megapixels Sensor type CMOS Shutter type Global Shutter Sensor size Type 1/3.6; 3.92 mm × 2.96 mm; 4.91 mm diagonal Pixel size 4.8 µm ×... -
Page 31: Absolute Qe
Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semiconductor PYTHON 480 absolute QE 1000 1050 1100 Wavelength [nm] Figure 3: Absolute QE for 1800 U-050m/c (ON Semiconductor PYTHON 480) Spectral response Figure 4: Spectral response for 1800 U-050m/c (ON Semiconductor PYTHON 480) Alvium USB Cameras User Guide V2.0.0... -
Page 32: Frame Rates Vs. Roi
Specifications Frame rates vs. ROI Values were calculated for typical operation defined in Maximum frame rates and on page 28. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is 200 MBps. Increasing the value DeviceLinkThroughputLimit does not increase frame rates. -
Page 33: Alvium 1800 U-120M/C
Specifications Alvium 1800 U-120m/c Specification Feature 1800 U-120m (monochrome) 1800 U-120c (color) Sensor model ON Semiconductor AR0135CS Resolution 1280 (H) × 960 (V); 1.2 megapixels Sensor type CMOS Shutter type Global Shutter Sensor size Type 1/3; 4.8 mm × 3.6 mm; 6.0 mm diagonal Pixel size 3.75 µm ×... -
Page 34: Absolute Qe
Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semiconductor AR0135CS absolute QE 1000 1050 1100 Wavelength [nm] Figure 5: Absolute QE for 1800 U-120m/c (ON Semiconductor AR0135CS) Spectral response Figure 6: Spectral response for 1800 U-120m/c (ON Semiconductor AR0135CS) Alvium USB Cameras User Guide V2.0.0... -
Page 35: Frame Rates Vs. Roi
Specifications Frame rates vs. ROI Values were calculated for typical operation defined in Maximum frame rates and on page 28. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is 200 MBps. Increasing the value DeviceLinkThroughputLimit does not increase frame rates. -
Page 36: Alvium 1800 U-500M/C
Specifications Alvium 1800 U-500m/c Specification Feature 1800 U-500m (monochrome) 1800 U-500c (color) Sensor model ON Semiconductor AR0521 Resolution 2592 (H) × 1944 (V); 5.1 megapixels Sensor type CMOS Shutter type Rolling shutter Sensor size Type 1/2.5; 5.7 mm × 4.3 mm; 7.13 mm diagonal Pixel size 2.2 µm ×... -
Page 37: Absolute Qe
Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE 100% ON Semiconductor AR0521 absolute QE 1000 1050 1100 Wavelength [nm] Figure 7: Absolute QE for 1800 U-500m/c (ON Semiconductor AR0521) Spectral response Figure 8: Spectral response for 1800 U-500m/c (ON Semiconductor AR0521) Alvium USB Cameras User Guide V2.0.0... -
Page 38: Frame Rates Vs. Roi
Specifications Frame rates vs. ROI 200 to 300 MBps Values were calculated for typical operation defined in Maximum frame rates and on page 28. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is 350 MBps. Increasing the value DeviceLinkThroughputLimit does not increase frame rates. - Page 39 Specifications 330 to 375 MBps Values were calculated for typical operation defined in Maximum frame rates and on page 28. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is 350 MBps. Increasing the value DeviceLinkThroughputLimit does not increase frame rates.
-
Page 40: Dimensions, Mass, And Temperature
Specifications Dimensions, mass, and temperature Bare board Feature Standard USB 90° Dimensions (L × W × H [mm]) 13 × 26 × 26 13 × 30 × 26 Mass 15 g 15 g Table 14: Bare board dimensions and mass Open housing Open housing S-Mount... - Page 41 Specifications Closed housing Closed housing S-Mount CS-Mount C-Mount Flange focal distance, optical [mm] 12.63 (in air) 12.526 (in air) 17.526 (in air) Thread [mm] M12 × 0.5 1x32TPI-UNS-2B 1x32TPI-UNS-2B 11.0 13.6 Maximum protrusion [mm] Body dimensions (L × W × H [mm]) 33 ×...
-
Page 42: Technical Drawings
Specifications Technical drawings USB connector position • Standard: the connector is at the camera backside. This option is not mentioned in the naming for camera hardware options. • 90°: the connector is at the camera left side, as seen from the lens mount. -
Page 43: Bare Board
Specifications Bare Board 26.4 A (10 : 1) 0.05 (gap) Figure 9: Dimensions for Bare Board Dimensions that are common between different models are shown in Figure model specific dimensions are listed in Table 20. Mechanical length (M ) defines the mechanical distance from the mounting area to the lens mount front flange. -
Page 44: Bare Board 90
Specifications Bare Board 90° 26.4 0.05 30.1 Sensor area Do not mount here Figure 10: Dimensions for Bare Board 90° Dimensions that are common between different models are shown in Figure model specific dimensions are listed in Table 21. Mechanical length (M ) defines the mechanical distance from the mounting area to the lens mount front flange. -
Page 45: Open Housing S-Mount
Specifications Open Housing S-Mount M3 - 2.5 (2x) 29.4 25.4 M2 - 2 M2 - 2 (4x) M12 x 0.5 - 12 M2 - 3.3 (2x) M3 - 2.5 (2x) Figure 11: Dimensions for Open Housing S-Mount Alvium USB Cameras User Guide V2.0.0... -
Page 46: Open Housing Cs-Mount
Specifications Open Housing CS-Mount M3 - 2.5 (2x) 29.4 24.9 MIN - 25.3 MAX M2 - 2 M2 - 2 (4x) M2 - 3.3 (2x) CS-Mount M3 - 2.5 (2x) Figure 12: Dimensions for Open Housing CS-Mount Alvium USB Cameras User Guide V2.0.0... -
Page 47: Open Housing C-Mount
Specifications Open Housing C-Mount M3 - 2.5 (2x) 29.4 29.9 min. to 30.3 max. M2 - 2 M2 - 2 (4x) M2 - 3.3 (2x) C-Mount M3 - 2.5 (2x) Figure 13: Dimensions for Open Housing C-Mount Alvium USB Cameras User Guide V2.0.0... -
Page 48: Open Housing S-Mount 90
Specifications Open Housing S-Mount 90° M3 - 2.5 (2x) 31.6 25.4 ±1 29.4 ±1 16.9 M2 - 2 M2 - 2 (2x) M2 - 3.3 (2x) M12x0.5 - 12 M3 - 2.5 (2x) 16.8 Figure 14: Dimensions for Open Housing S-Mount 90° Alvium USB Cameras User Guide V2.0.0... -
Page 49: Open Housing Cs-Mount 90
Specifications Open Housing CS-Mount 90° M3 - 2.5 (2x) 24.9 min. - 25.3 max. 31.6 18.5 min. - 18.9 max. 29.4 M2 - 2 16.9 M2 - 2 (4x) M2 - 3.3 (2x) CS-Mount M3 - 2.5 (2x) 16.8 Figure 15: Dimensions for Open Housing CS-Mount 90° Alvium USB Cameras User Guide V2.0.0... -
Page 50: Open Housing C-Mount 90
Specifications Open Housing C-Mount 90° M3 - 2.5 (2x) 29.9 min. to 30.3 max. 31.6 23.5 min. to 23.9 max. 29.4 M2 - 2 16.9 M2 - 2 (4x) M2 - 3.3 (2x) C-Mount M3 - 2.5 (2x) 21.8 Figure 16: Dimensions for Open Housing C-Mount 90° Alvium USB Cameras User Guide V2.0.0... -
Page 51: Closed Housing S-Mount
Specifications Closed Housing S-Mount 24.6 M3 - 2.5 (2x) 29.4 33.2 M2 - 2 M2 - 2 (4x) M2 - 3.3 (2x) M12x0.5 - 12 33.2 M3 - 2.5 (2x) Figure 17: Dimensions for Closed Housing S-Mount Alvium USB Cameras User Guide V2.0.0... -
Page 52: Closed Housing Cs-Mount
Specifications Closed Housing CS-Mount 24.6 M3 - 2.5 (2x) 29.4 33.2 M2 - 2 M2 - 2 (4x) M2 - 3.3 (2x) CS-Mount 28.2 M3 - 2.5 (2x) Figure 18: Dimensions for Closed Housing CS-Mount Alvium USB Cameras User Guide V2.0.0... -
Page 53: Closed Housing C-Mount
Specifications Closed Housing C-Mount 29.6 M3 - 2.5 (2x) 29.4 38.2 M2 - 2 M2 - 2 (4x) M2 - 3.3 (2x) C-Mount 33.2 M3 - 2.5 (2x) Figure 19: Dimensions for Closed Housing C-Mount Alvium USB Cameras User Guide V2.0.0... -
Page 54: Closed Housing S-Mount 90
Specifications Closed Housing S-Mount 90° 33.2 M3 - 2.5 (2x) 31.6 33.2 29.4 M2 - 2 (4x) M2 - 2 16.9 M2 - 3.3 (2x) M12x0,5 - 12 M3 - 2,5 (2x) 16.9 Figure 20: Dimensions for Closed Housing S-Mount 90° Alvium USB Cameras User Guide V2.0.0... -
Page 55: Closed Housing Cs-Mount 90
Specifications Closed Housing CS-Mount 90° 28.2 M3 - 2.5 (2x) 31.6 33.2 18.5 min. to 18.9 max. 29.4 16.9 M2 - 2 M2 - 2 (4x) M2 - 3.3 (2x) CS-Mount M3 - 2.5 (2x) 16.8 Figure 21: Dimensions for Closed Housing CS-Mount 90° Alvium USB Cameras User Guide V2.0.0... -
Page 56: Closed Housing C-Mount 90
Specifications Closed Housing C-Mount 90° 33.2 M3 - 2.5 (2x) 38.2 31.6 23.5 min. to 23.9 max. 29.4 M2 - 2 16.9 M2 - 2 (4x) M2 - 3.3 (2x) C-Mount M3 - 2.5 (2x) 21.8 Figure 22: Dimensions for Closed Housing C-Mount 90° Alvium USB Cameras User Guide V2.0.0... -
Page 57: Lens Mounts And Maximum Protrusion
Specifications Lens mounts and maximum protrusion No need to readjust lens mounts Alvium USB camera mounts are adjusted with high precision during manufacturing. Construction ensures permanent accuracy without need to readjust. Maximum Maximum protrusion protrusion Filter Electronics Sensor Sensor Lens mount Lens mount Figure 23: Maximum protrusion S-Mount (left);... -
Page 58: Ir Cut Filter
Specifications IR cut filter Table 23 shows which Alvium models are equipped with an IR cut filter. The filter is permanently installed and cannot be removed. Color or monochrome model Bare board S-Mount CS-Mount C-Mount Color No filter IR cut filter type Hoya C5000 Monochrome No filter Table 23: Optical filters availability... -
Page 59: Lenses: Focal Length Vs. Field Of View
Lenses: Focal length vs. field of view This chapter includes: About this chapter ..............60 Optical vignetting with certain lenses ........60 About S-Mount lenses ............61 Focal length vs. field of view..........61 Alvium USB Cameras User Guide V2.0.0... -
Page 60: About This Chapter
Production spread causes tolerances for all values, including actual focal lengths. Calculations apply for image reproduction without distortion. Therefore, values do not apply for fisheye lenses. Please ask your Allied Vision Sales representative in case you need more information. Optical vignetting with certain lenses Lenses with short focal lengths may show optical vignetting at the edges of the image. -
Page 61: About S-Mount Lenses
Lenses: Focal length vs. field of view About S-Mount lenses Alvium S-Mount models have no filter. We recommend using S-Mount lenses with an integrated IR-cut filter for a better image quality. Read Mounting and focusing S-Mount lenses on page 67 to avoid damage when using S-Mount lenses. -
Page 62: Type 1/3.6
Lenses: Focal length vs. field of view Type 1/3.6 Values apply to 1800 U-050 cameras. Field of view (H × V [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 689 × 517 1381 × 1036 535 ×... -
Page 63: Installing The Camera
Installing the camera This chapter includes: Mounting the heat sink............64 Mounting the camera ............65 Mounting the lens..............67 Software and driver installation on the host ......70 Alvium USB Cameras User Guide V2.0.0... -
Page 64: Mounting The Heat Sink
Installing the camera Mounting the heat sink Keep the operating temperature in the specified range to enable best image quality and to protect the camera from damage. We recommend you to equip Alvium bare board and open housing cameras with heat sinks. Optimizing heat dissipations For estimating requirements for your application and for designing heat dissipative housings, see the Optimum Heat Dissipation for Housed Alvium Cameras... -
Page 65: Mounting The Camera
Installing the camera Mounting the camera Mounting bare board cameras Heat dissipation and housings for bare board cameras For heat dissipation, see the Optimum Heat Dissipation for Housed Alvium Cameras application note. For electromagnetic compatibility, see the Electromagnetic Compatibility for Open Housing Alvium Cameras application note. -
Page 66: Mounting Housed Cameras
Installing the camera Mounting housed cameras Tripod adapter For more information, see the Alvium Cameras Accessory Guide at www.alliedvision.com/en/support/technical-documentation/ alvium-usb-documentation under Additional documents. Bottom or top mounting Camera top and bottom mounting is done the same way. c = Mounting thread M3-↓2 20 mm Figure 28: Top and bottom with mounting threads 1. -
Page 67: Mounting The Lens
67. • Avoid short S-Mount lenses falling into the camera. Mounting and focusing S-Mount lenses Allied Vision S-Mount lenses For technical data of Allied Vision S-Mount lenses with dedicated operating instructions, see the S-Mount Lenses User Guide at www.alliedvision.com/en/support/technical-documentation/alvium-usb- documentation under Additional documents. - Page 68 Installing the camera NOTICE Damage to sensor or optics by improper handling If an S-Mount lens is screwed against the sensor, sensor and lens can be damaged. • Screw in the lens at 11.0 mm maximum protrusion. • Follow the instructions carefully. Determining the allowed range for the position of the lens 1.
- Page 69 Installing the camera NOTICE Damage to lens threads and fixing nut by excessive force If the fixing nut is screwed with too much force, threads are worn out and the lens cannot be locked anymore. Screw fixing nuts hand tight to keep the lens in a fixed position. Locking focus Pinch nose pliers are used to screw the fixing nut: 7.
-
Page 70: Software And Driver Installation On The Host
Windows: Please use Vimba to install the camera driver. For Vimba system requirements and supported Windows versions, see www.alliedvision.com/software. Linux: Allied Vision does not provide a special driver. For Vimba system requirements and supported operating systems, see www.alliedvision.com/software. You need the following accessories: •... -
Page 71: Installing Drivers For Camera And Host Adapter
Installing the camera Using the camera with third-party drivers Alvium USB cameras may not support third-party drivers. We recommend using the Vimba camera driver. Installing drivers for camera and host adapter Installing the host adapter and Vimba 1. Install the USB 3.0 or 3.1 Gen 1 host controller card and driver according to the manufacturer’s instructions. - Page 72 Installing the camera 4. Open Install driver > USB3 Vision Camera and click the driver popup. Figure 36: Vimba Driver Installer, camera driver not installed 5. Click Apply to install the Vimba driver for the camera. Figure 37: Vimba Driver Installer, driver installation started The driver has been installed successfully, the camera is recognized.
- Page 73 Installing the camera Manual Vimba Driver installation Windows: For manual Vimba driver installation, see following instructions. Installing the camera driver with Windows tools As alternative practice, you can install the Vimba driver manually. Check for connected USB devices on your Windows system. Screenshots are examples The following screenshots were taken on a test system.
- Page 74 Installing the camera 3. Right-click the unrecognized USB3 Vision Device. Figure 40: Windows Device Manager, Windows Driver Installer 4. Click: “Browse my computer for driver software”. 5. Select [Your local Vimba directory]\Allied Vision\Vimba_V.x.x\VimbaUSBTL\Driver. 6. Follow the instructions. The camera driver is installed successfully. Figure 41: Windows Device Manager, USB3 Vision camera installed successfully Alvium USB Cameras User Guide V2.0.0...
-
Page 75: Camera Interfaces
Camera interfaces This chapter includes: Recommended accessories ..........76 Back panel ................76 I/O connector pin assignment ..........77 Non-isolated, programmable GPIOs........78 Status LED................80 Alvium USB Cameras User Guide V2.0.0... -
Page 76: Recommended Accessories
Camera interfaces Recommended accessories Compatible electronics accessories See the Alvium Cameras Accessory Guide at www.alliedvision.com/en/support/technical-documentation/ alvium-usb-documentation under Additional documents. Back panel I/O connector Pin 1 USB connector Figure 42: Bare board camera Interface descriptions Interface Section in this user guide I/O connector Non-isolated, programmable GPIOs on page 78... -
Page 77: I/O Connector Pin Assignment
See www.jst.de. for details. I/O cables and electromagnetic interference (EMI) Consider for I/O cables by Allied Vision: • 12319 JST I/O cables without screw lock have no shielding and are designed to be used with bare board or open housing Alvium cameras. -
Page 78: Non-Isolated, Programmable Gpios
Camera interfaces Signal Direction Level Description VCC-EXT-IN PWR IN 4.5 to 5.5 VDC Power supply voltage Camera power on page 21. EXT-GPIO 0 IN/OUT (low) = -0.3 to 0.8 VDC GPIOs Internal pull-up resistor: 33 kΩ to 63 kΩ (high) = 2.0 to 5.5 VDC (low) = 0 to 0.4 VDC (high) = 2.4 to 3.3 VDC at max. -
Page 79: Input Levels
Camera interfaces Input levels The GPIOs can be connected directly to the system controlling the camera for voltages up to 5.5 VDC. An external resistor is not necessary. NOTICE Damage to the camera by high input voltage Exceeding maximum input voltage can damage the camera. Keep maximum input voltage below 5.5 VDC. -
Page 80: Status Led
Camera interfaces Status LED Alvium USB cameras have a green status LED. The following tables describe the flashing pattern indicating different events. Inverse flashing: If an LED is already on, it is switched off for a short time. LED settings You can define LED settings with the DeviceIndicatorLuminance feature: •... -
Page 81: Triggering And Timings
Triggering and timings This chapter includes: Compensation for the rolling shutter effect......82 Trigger signal flow ..............83 Trigger latency............... 83 Triggering with rolling shutter cameras........ 84 Value changes by features interdependencies..... 85 Alvium USB Cameras User Guide V2.0.0... -
Page 82: Compensation For The Rolling Shutter Effect
Triggering and timings Compensation for the rolling shutter effect This section is about sensor shutter types affecting moving images. Alvium 1800 U-050 and U-120 models have global shutter sensors, see Figure 45 shows the global shutter effect: All sensor lines (left) are integrated simultaneously, the image (right) of a rotating fan appear natural. -
Page 83: Trigger Signal Flow
Triggering and timings Trigger signal flow Figure 48 shows a general diagram for the trigger signal flow. The external signal can be a physical source, such as light barrier as hardware trigger or a software trigger. This external signal starts the exposure of a frame. -
Page 84: Triggering With Rolling Shutter Cameras
Triggering and timings Triggering with rolling shutter cameras This section describes triggering behavior for 1800 U-500 cameras with rolling shutter sensor. Figure 49 shows how an external signal triggers exposure and readout for cameras with rolling shutter sensors. Like for global shutter sensors, readout has a constant duration, acquisition must be active to enable exposure, the end of exposure starts readout. -
Page 85: Value Changes By Features Interdependencies
Triggering and timings Value changes by features interdependencies The conversion between time and clock cycles affects control values. Features for pixel format, bandwidth, ROI, exposure time, and triggering are related to each other. Changing values for one feature can change values for another feature. For example, frame rates can be reduced when the pixel format is changed subsequently. -
Page 86: Image Data Flow
Image data flow Image data flow The following flow chart shows image data processing for Alvium USB cameras in general. Region of interest Region of interest Region of interest Region of interest Sensor Sensor Sensor Black level Black level Black level (ROI) (ROI) (ROI) -
Page 87: Firmware Update
Firmware update Firmware update You should update firmware only to change camera functions or fix known issues. Consider: Any firmware update may not only add new features to a camera or fix known issues. It may also replace previous features or change camera characteristics. -
Page 88: Performance And Troubleshooting
Performance and troubleshooting This chapter includes: Optimizing performance............89 Troubleshooting common issues .......... 98 Alvium USB Cameras User Guide V2.0.0... -
Page 89: Optimizing Performance
Performance and troubleshooting Optimizing performance Frame rate jitter Affected model: Alvium 1800 U-120 and U-500 Generally, some parameters can be changed during exposure without affecting the timing. When the camera is operated in freerun mode without triggering, changing parameters during exposure leads to a frame rate jitter. When parameters are entered, the next frame starts only after readout and sensor reconfiguration delay are finished. -
Page 90: Dark Current Compensation
Performance and troubleshooting Dark current compensation All sensors accumulate dark current in the pixels. Dark current increases the signal level and black level. Most sensors in Alvium USB cameras compensate for this. For Alvium 1800 U-050 with PYTHON 480 sensor, see Black level compensation for certain sensors on page 91. - Page 91 Performance and troubleshooting Additional compensation If compensation limits are reached and you cannot decrease operating temperature or exposure time, what can you do to keep signal quality high? Measures for type 1 compensation Typically, there is no measure to improve the image signal. The rising black level shifts black and dark gray values to gray.
-
Page 92: Operating Systems And Bandwidth
Performance and troubleshooting Operating systems and bandwidth If the camera data output exceeds the bandwidth supported by the host computer, images may be corrupted. This section gives some background information to enable proper image transfer. Sensor data output and camera data output For cameras with an image buffer, the required bandwidth for image acquisition can be estimated for a given frame rate, pixel format, and resolution by over-the thumb calculations. - Page 93 Suitable USB 3.0 accessories www.alliedvision.com/en/products/accessories for suitable USB 3.0 or 3.1 Gen 1 host controller cards and cables or contact your Allied Vision Sales representative. Vimba settings During freerun, Alvium cameras do not automatically adapt the frame rate to the USB controller's limits.
- Page 94 Performance and troubleshooting Performance on reference systems We have tested available frame rates on real systems, using an embedded board and a desktop PC. Cameras were operated in AquisitionMode Continuous frame rates were measured using Vimba Viewer. Hardware and software Camera Specification Model...
- Page 95 Performance and troubleshooting Frame rates and CPU payload Property Linux desktop system Linux ARM system Pixel format RGB8 Image size 2592 × 1944 Frame rate 25.7 fps 28.6 fps CPU payload 30% (4 cores) 50% (4 cores) Table 40: CPU payload for RGB8 Property Linux desktop system Linux ARM system...
-
Page 96: Dividing Bandwidth Between Devices On A Common Usb 3.0 Or 3.1 Gen 1 Bus
Performance and troubleshooting Dividing bandwidth between devices on a common USB 3.0 or 3.1 Gen 1 bus Ideal setup for two cameras Preconditions • Control traffic is ignored. • The possibility of the host being busy with other tasks is ignored. •... - Page 97 Performance and troubleshooting Cascading hubs divide bandwidth The following example applies to standard behavior without individual settings. The graphics show bandwidth distribution on a common bus. Three cameras try to use full bandwidth at the same time. If one camera is inactive, the host will provide its share to the others until this camera sends data again.
-
Page 98: Troubleshooting Common Issues
Performance and troubleshooting Troubleshooting common issues This section is about unexpected events with the operation of Alvium USB cameras. The events are ordered from general to detail: • Camera recognition • Unexpected events • Performance • Radio signal interference Each entry consists of: •... - Page 99 Performance and troubleshooting The camera, connected to a USB 3.0 or 3.1 Gen 1 hub, is not recognized anymore. Check if the USB 3.0 or 3.1 Gen 1 hub has crashed. Disconnect the USB and power supply cable from the hub. Reconnect both.
-
Page 100: Unexpected Events
The camera is intact, but your previous computer or cable has a defect. Continue with 2. The camera does not work properly. Then: Most likely, the camera has a defect. Please contact Allied Vision support. Connect the camera with the previous cable to the different computer. The camera works properly. Then: Replace the cable. -
Page 101: Performance
Performance and troubleshooting Performance How can I improve camera performance? Check if the hardware sufficiently supports your USB camera. See the Alvium USB Cameras Accessory Guide at www.alliedvision.com/en/support/technical-documentation/ alvium-usb-documentation under Additional documents. Check if the camera shares the bus with other devices reducing the available bandwidth. -
Page 102: Radio Signal Interference
Performance and troubleshooting Radio signal interference How can I avoid radio signal interference from wireless devices? Ensure camera installation complies with Electromagnetic Compatibility. Wireless devices and USB 3.0 or 3.1 Gen 1 commonly use 2.4 GHz frequency (WLAN uses 2.4, 3.6, and 4.9 GHz). Even USB 3.0 and 3.1 Gen 1 cables can interfere harmfully with other electromagnetic devices. -
Page 103: Index
Index image data flow ..........86 intended use ........... 17 interfaces ............75 IR cut filter ............58 AcquisitionActive ..........83 Allied Vision contact ..........3 LEDs ..............80 lens mounts ............. 57 bandwidth lenses .............. 59 cascading hubs ..........97 maximum protrusion ....... 24 division on a common bus ......96... - Page 104 Index camera recognition ........98 performance .......... 101 USB 2.0 ............22 radio signal interference ......102 USB 3.1 Gen 1 ..........27 unexpected events ........ 100 USB cables ............22 typical operation ..........29 USB host controllers and hubs ....... 22 USB3 Vision .............
