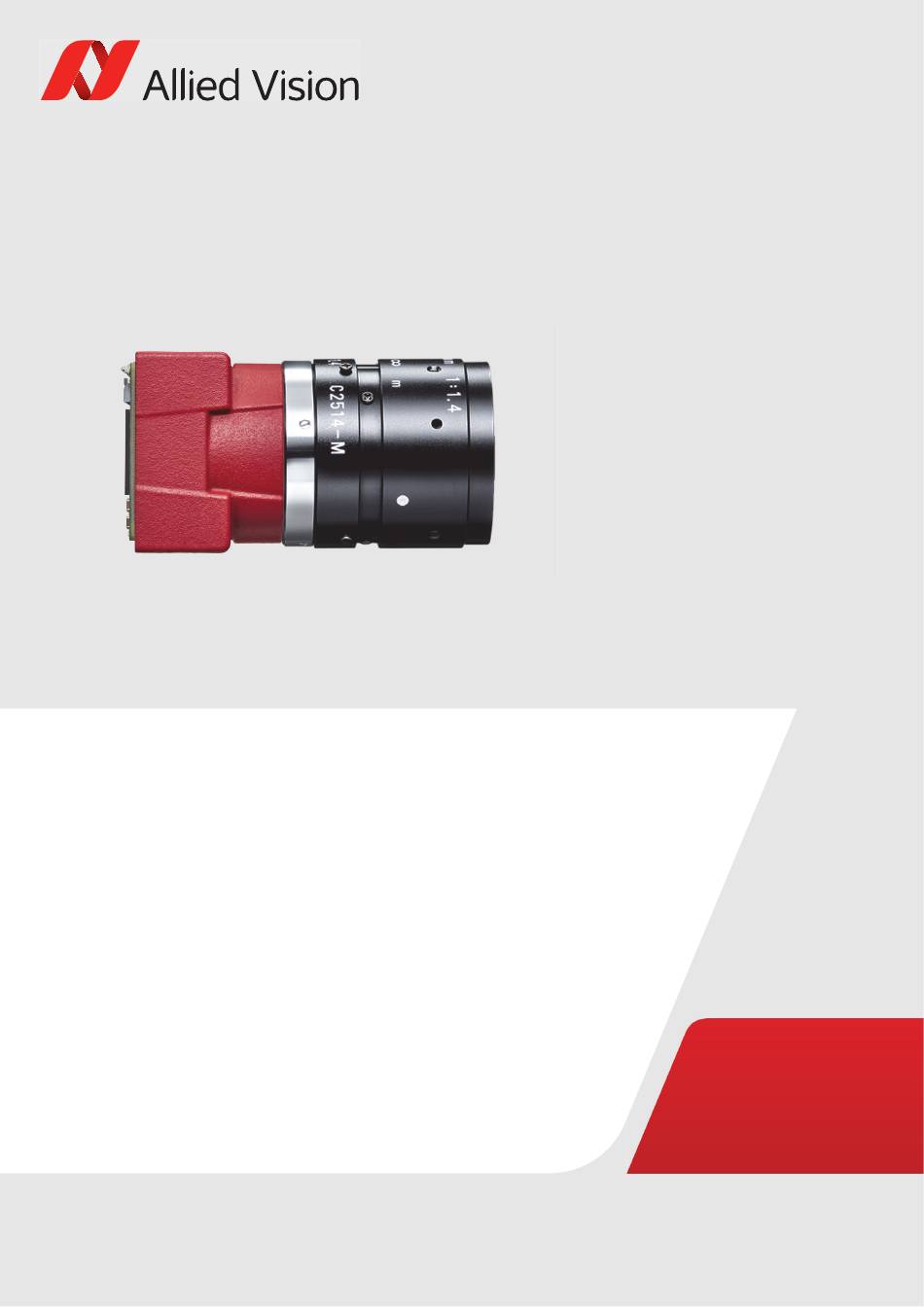

MIPI CSI-2 C
AMERAS
Alvium CSI-2 Cameras
User Guide
V2.6.2
Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany
2021-Dec-17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alvium Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allied Vision Alvium Series

Summary of Contents for Allied Vision Alvium Series

  • Page 1: Read Before Use

    MIPI CSI-2 C AMERAS Alvium CSI-2 Cameras User Guide V2.6.2 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2021-Dec-17...

  • Page 2: Dansk

    The threads of the lens mount can have sharp edges. Intended use Intended use of Allied Vision product is the integration into vision systems by professionals. All Allied Vision product is sold in a B2B setting. Cameras without closed housings Cameras without housing or with incomplete housing must be shielded against EMC emission by professionals according to local EMC provisions.

  • Page 3: Deutsch

    Fare for snitsår på linsemodulets skarpe kanter Linsemodulets gevind kan have skarpe kanter. Tilsigtet brug Allied Vision produktets tilsigtede brug er en indbygning i et visionssystem, udført af fagfolk. Alle Allied Vision produkter sælges i B2B. Kameraer uden lukket hus Kameraer uden hus eller uden komplet hus skal beskyttes mod EMC emissioner iht.

  • Page 4: EspaƱol

    VORSICHT Schnitte durch scharfkantige Objektivgewinde Objektivgewinde können scharfe Kanten haben. Bestimmungsgemäßer Gebrauch Allied Vision Produkte sind bestimmt für die Integration in Bildverarbeitungs- systeme durch Fachpersonal. Alle Allied Vision Produkte werden in einer B2B-Umgebung verkauft. Kameras ohne geschlossenes Gehäuse Für Kameras ohne Gehäuse oder mit unvollständigem Gehäuse muss die Abschirmung gegen EMV-Emissionen gemäß...

  • Page 5: Suomi

    Las roscas de los objetivos pueden tener bordes afilados. Uso previsto El uso previsto del producto Allied Vision es la integración en el sistema de visión por parte de profesionales. Todos los productos Allied Vision se venden dentro de una relación B2B.

  • Page 6: FranƧais

    Linssin kiinnikkeiden kierteiden reunat voivat olla teräviä. Käyttötarkoitus Allied Vision -tuotteen käyttötarkoitus on integrointi kuvajärjestelmiin ammattilaisten toimesta. Kaikki Allied Vision -tuotteet myydään B2B-ympäristössä. Kamerat, joissa ei ole suljettuja koteloita Ammattilaisten on suojattava kamerat, joissa ei ole koteloa tai joiden kotelo on epätäydellinen, EMC-päästöiltä...

  • Page 7: Italiano

    Les filetages des montures d’objectif peuvent présenter des bords tranchants. Utilisation prévue L’utilisation prévue du produit Allied Vision est son intégration dans des systèmes de vision par le soin de professionnels. Tout produit Allied Vision est vendu dans un cadre B2B. Caméras sans boîtier fermé...

  • Page 8: Ja - ę—„ęœ¬čŖž

    Pericolo di tagliarsi sui bordi affilati degli attacchi della lente I bordi della filettatura dell’attacco della lente possono essere affilati. Uso previsto Il prodotto Allied Vision è concepito per essere integrato in sistemi di monitoraggio in campo professionale. Tutti i prodotti Allied Vision sono venduti in uno scenario B2B.

  • Page 9: Nederlands

    Read before use JA - 日本語 安全性 本カメラを使用する前に、この安全の手引きをお読みください。常に、 警告事項を守ってください。必ず、Intended use 35 ページの通りに、本 カメラを使用してください。 注意 やけどの危険性 作動中のカメラは、やけどを引き起こす温度まで熱くなる恐れがありま す。 注意 カメラまたはレンズの落下によるけが カメラまたはレンズが落下すると、けがをする恐れがあります。 注意 レンズマウントの鋭利な端部で切り傷の危険性 レンズマウントのギザギザの部分が鋭利である可能性があります。 用途 Allied Vision製品は、専門家が視覚装置に統合することを意図したもの です。すべてのAllied Vision製品は、企業間取り引き用に販売されてい ます。 ハウジングで閉じられていないカメラ ハウジングのないカメラまたはハウジングが不完全なカメラは、現地の 電磁両立性（EMC）規定に従い、専門家によって、EMCエミッションから 保護される必要があります。 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 10: Norsk

    Risico van snijwonden door scherpe randen van lensbevestigingen Het schroefdraad van de lensbevestiging kan scherpe randen hebben. Beoogd gebruik Het beoogde gebruik van het Allied Vision-product is de integratie in optische systemen door professionals. Alle Allied Vision-producten worden verkocht in de B2B-markt.

  • Page 11: Svenska

    Risiko for kutt fra skarpe kanter på linsefester Sporene på linsefestet kan ha skarpe kanter. Tiltenkt bruk Den tiltenkte bruken av Allied Vision-produktet er integrering i visjonssystemer av profesjonelle. Alle Allied Vision-produkter selges i en forretning til forretning-situasjon. Kameraer uten lukkede kamerahus Kameraer uten kamerahus eller med ufullstendige kamerahus må...

  • Page 12: Zh - ē®€ä½“äø­ę–‡ē‰ˆ

    Objektivets gängor kan ha vassa kanter. Avsedd användning Den avsedda användningen av Allied Vision-produkter är integrering i visionssystem av fackmän. Samtliga Allied Vision-produkter säljs i en B2B-miljö. Kameror utan slutna kamerahus Kameror utan eller med ofullständiga kamerahus måste skyddas mot elektromagnetiska emissioner av fackmän enligt lokala bestämmelser för...

  • Page 13: Alvium Csi-2 Cameras At A Glance

    ZH - 简体中文版 安全需知 使用本相机前，请阅读本安全说明书。请务必遵守相关警告 和 Intended 于第 35 页 . 注意事项 烫伤风险 相机操作过程中温度可能上升并导致烫伤风险。 注意事项 相机或者镜头跌落造成伤害 相机或者镜头可能会跌落并造成伤害。 注意事项 镜头接口的锐利边缘划伤风险 镜头接口螺纹边缘可能较为锐利。 预期用途 Allied Vision 产品的预期用途是由专业人士整合到视觉系统中。所有 Allied Vision 的产品均通过 B2B 渠道销售。 无封闭式外壳相机 使用不带外壳或外壳不完整的相机时，必须由专业人员根据当地的 EMC 规 定，对其进行 EMC 屏蔽。 Alvium CSI-2 Cameras User Guide V2.6.2...
  • Page 14 Alvium CSI-2 cameras at a glance Get an overview of Alvium CSI-2 camera documentation. Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 15: Shipping Contents

    Alvium CSI-2 cameras at a glance Read this document carefully Learn to avoid damage to your Alvium CSI-2 camera and use it in the most safe and efficient way. NOTICE Damage to camera and embedded hardware by improper handling Setup and operation for Alvium CSI-2 cameras in embedded systems is different than for cameras in PC-based systems.

  • Page 16: Contact Us

    Alvium CSI-2 cameras at a glance Shipping contents • Alvium CSI-2 camera • Download Instructions for First Camera Operation document What else do you need? This is a selection of helpful downloads: Download Link Direct Register Access Controls Reference www.alliedvision.com/en/support/ technical-documentation/ Application notes alvium-csi-2-documentation...
  • Page 17 Shanghai 200235, China T// +86 21 64861133 Allied Vision Technologies, Inc. Singapore 102 Pickering Way - Suite 502 Allied Vision Technologies Asia Pte. Ltd Exton, PA 19341, USA 82 Playfair Rd, #07-02 D'Lithium Toll-free// +1-877-USA-1394 Singapore 368001 T// +1 978 225 2030 T// +65 6634 9027 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 18: Table Of Contents

    Contents Contents Read before use EN - English ................2 DA - Dansk .
  • Page 19 Contents ESD................38 Cable connections .
  • Page 20 Contents Frame rates with Cropping ............63 Alvium 1500 C-500m/c.
  • Page 21 Contents Alvium 1800 C-1236m/c............. . . 110 Absolute QE .
  • Page 22 Contents Alvium 1500 C-210m/c..............152 Alvium 1500 C-500m/c, 1500 C-501m/c NIR .

  • Page 23: Document History And Conventions

    Contents Output levels ............... . 184 Status LED .

  • Page 24: Document History

    Document history and conventions This chapter includes: Document history ..............25 Conventions used in this user guide........29 Naming and terms ..............31 Alvium CSI-2 Cameras User Guide V2.6.2...
  • Page 25 Document history and conventions Document history Version Date Remarks V2.6.2 2021-Dec-17 • Removed icon for compliance with UKCA in Compliance notifications on page 34. (The icon was previously added by mistake.) • Removed information on Digital Binning because it is not supported by the current camera driver. V2.6.1 2021-Nov-23 •...
  • Page 26 Document history and conventions Version Date Remarks V2.4.0 2021-Apr-08 • Added RAW pixel formats for 10-bit and 12-bit Mono in Specifications on page 44. • Added 1800 C-2460m/c models in Specifications on page 44. • Updated mass values in Dimensions and mass page 139.
  • Page 27 Document history and conventions Version Date Remarks V2.2.0 2020-Jul-22 • Added Alvium 1800 C-240m/c, 1800 C-508m/c, and 1800 C-1240m/c models. • Updated ROI frame rates and pixel formats in Specifications on page 44. • Updated Type for Alvium 1500 C-210m/c on page •...

  • Page 28: Conventions Used In This User Guide

    Document history and conventions Version Date Remarks V1.1.0 2019-Jul-01 • Removed separate bit depth for maximum frame rates in Specifications on page 44. • Corrected ADC bit depth for Alvium 1500 C-500m/c in Specifications on page 44 and for all models in Image data flow on page 190.

  • Page 29: Symbols And Notes

    Document history and conventions Symbols and notes CAUTION Risk of burns Precautions are described CAUTION Injury by falling cameras or lenses Precautions are described CAUTION Risk of cuts by sharp edges of lens mounts Precautions are described NOTICE Material damage Precautions are described.

  • Page 30: Naming And Terms

    Document history and conventions Naming and terms Camera model naming Alvium cameras are named to identify model properties. For example, Alvium 1500 C-500c is composed of: Alvium 1500 Content Camera Camera series detail Interface Resolution Color/ element series monochrome Examples Alvium 1500: Basic feature set C: MIPI CSI-2...
  • Page 31 Document history and conventions Term or acronym Description Reference Ground (power) FPC connector pin assignment page 181 Gbps Gigabit per second Alvium 1500 C-050m/c on page 52 Global shutter Shutter types affecting image readout on page 198 H × V Horizontal ×...

  • Page 32: Compliance, Safety, And Intended Use

    Compliance, safety, and intended use This chapter includes: Compliance notifications ............34 Intended use ................. 35 Copyright and trademarks ............ 35 Your safety................36 Product safety ............... 38 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 33: Compliance Notifications

    Interface cables, power cables, and I/O cables are sensitive to electromagnetic interference. • Use shielded cables only. • We recommend using cables offered by Allied Vision. • Avoid coiling. • We recommend using GPIOs only in environments with low electromagnetic interference.

  • Page 34: Intended Use

    We are offering standard products as well as customized solutions. Intended use of Allied Vision product is the integration into Vision systems by professionals. All Allied Vision product is sold in a B2B setting.

  • Page 35: Your Safety

    Compliance, safety, and intended use Your safety This section informs about issues related to your personal safety. Descriptions explain how to avoid hazards and operate Alvium CSI-2 cameras safely. Handling lens mounts The lens mount thread has sharp edges. Be careful these edges do not cut your skin when mounting or unmounting lenses.

  • Page 36: Camera Mounting

    Compliance, safety, and intended use For your safety and to improve camera performance, operate the camera: • Mounted to a base with a high thermal conductivity • With lens or other optical components mounted • With a heat sink mounted that has large surface areas (closed housing cameras include a heat sink) •...

  • Page 37: Product Safety

    The MIPI CSI-2 standard does not specify electrical connections as extensively as the USB or GigE standard. Read specifications carefully. Allied Vision accessories help to avoid damage to the camera and connected components. See the Alvium Cameras Accessory Guide for suitable accessories.

  • Page 38: Cable Connections

    Compliance, safety, and intended use • Housing: use an ESD housing, including the camera, embedded board, adapter board, and MIPI CSI-2 FPC cable. Cable connections Provide sufficient strain relief for all cable connections to avoid short circuits and malfunctions. PCBAs Alvium CSI-2 cameras enable access to PCBAs.

  • Page 39: Fpc Connectors

    MIPI CSI-2 FPC cables Manufacturing FPC cables or embedded boards If you want to design your own components to connect Alvium CSI-2 cameras to embedded boards, contact your Allied Vision Sales representative or visit www.alliedvision.com/en/about-us/contact-us/technical-support-repair-/-rma. FPC cable position Short circuits of the FPC cable can damage the camera or connected hardware.

  • Page 40: Handling Bare Board Cameras

    Noise and electromagnetic interference can disable camera functions. • Avoid contact to metal surfaces, causing electromagnetic interference. • Please use cables recommended by Allied Vision. Handling bare board cameras Bare board cameras are an electronic assembly without a protective housing.

  • Page 41: Optical Components

    Compliance, safety, and intended use Optical components Provide the following conditions to keep dirt and droplets out of the optical system of camera and lens: • Dust-free environment • Low relative humidity • No condensation. When camera or lens are stored: •...

  • Page 42: Lenses

    Compliance, safety, and intended use Lenses Maximum protrusion The sensor, filter, lens, or camera electronics can be damaged if a lens exceeding maximum protrusion is mounted to the camera. Use lenses with a maximum protrusion within camera specifications. Figure 4 shows maximum protrusion.

  • Page 43: Specifications

    Specifications This chapter includes: Applied standards ..............45 Notes on specifications............47 Alvium 1500 C model specifications........52 Alvium 1800 C model specifications........72 White balance default............138 Dimensions and mass ............139 Technical drawings .............. 139 Lens mounts and maximum protrusion ......145 IR cut filter................

  • Page 44: Applied Standards

    • D-PHY V1.1. V4L2 The current V4L2 framework is described at linuxtv.org. Allied Vision provides V4L2 drivers. You can download Allied Vision V4L2 drivers from www.alliedvision.com/en/products/software/embedded-software-and-drivers. Shock and vibration Alvium closed and open housing cameras were tested according to the following standards: •...

  • Page 45: Iec 60068-2-6: Sinusoidal Vibration

    Specifications The conditions for cameras and lenses were the same for all tests. Solid aluminum tubes were used to represent real lenses: Parameter Value Lens dummy length 38 mm Lens dummy mass 70 g 20 mm Center of gravity (CoG) For camera and lens dummy assemblies, measured from the lens mount front flange Table 8: Conditions for lenses IEC 60068-2-6: Sinusoidal vibration...

  • Page 46: Iec 60068-2-64: Random Vibration

    Specifications IEC 60068-2-64: Random vibration Frequency Acceleration 15 Hz to 500 Hz 0.05 g Table 12: Frequency and acceleration for IEC 60068-2-64 tests Parameter Value Axis x, y, z Acceleration RMS (Sigma) 4.9 g Acceleration peak (Sigma) 14.8 g Duration per axis [hh:mm:ss] 00:30:00 Table 13: Other parameters for IEC 60068-64 tests Notes on specifications...

  • Page 47: Spectral Response Plots

    Specifications Wavelength The wavelength range in the absolute QE plots reflects the information available in the sensor manufacturer data sheet at the time of publishing. For additional wavelength information, contact the sensor manufacturer. Spectral response plots The curves in the spectral response plots shown in this chapter were calculated from measured quantum efficiencies at 448 nm, 529 nm, and 632 nm.

  • Page 48: Exposure Time, Bandwidth, And Frame Rates

    Specifications Availability of pixel formats The availability of pixel formats depends on camera models and the abilities of the connected system. Exposure time, bandwidth, and frame rates Exposure time values Interdependencies between controls affect each other. See Value changes by control interdependencies on page 194.

  • Page 49: Typical Operation

    Specifications Typical operation • Factory settings (camera after startup) • Minimum exposure time • Full resolution • RAW8 (GREY) pixel format • Camera operation in freerun mode • Sensor readout using ADC bit depth • Without bandwidth limitations. Achieved values for your system may not match specified values Values stated in this chapter show the available frame rates on an ideal system, supporting a bandwidth of 1.051 Gbps per lane.

  • Page 50: Triggering

    Specifications Triggering The following table shows how the shutter type impacts available frame rates. Reducing the area for ROI reduces readout time. The relations in Table 16 apply only if exposure time is shorter than readout time. Sensor type Shutter type Trigger mode Available frame rates ROI frame rates...

  • Page 51: Alvium 1500 C Model Specifications

    Specifications Alvium 1500 C model specifications Alvium 1500 C-050m/c Feature Specification 1500 C-050m (monochrome) 1500 C-050c (color) Sensor model ON Semiconductor PYTHON 480 Resolution 808 (H) × 608 (V); 0.5 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/3.6;...
  • Page 52 Specifications Feature Specification 1500 C-050m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 53: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semi PYTHON 480 absolute QE 1000 1050 1100 Wavelength [nm] Figure 5: Alvium 1500 C-050m/c (ON Semi PYTHON 480) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.300 ON Semi PYTHON 480 spectral response...

  • Page 54: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 1 lane with 1.051 Gbps.

  • Page 55: Alvium 1500 C-120M/C

    Specifications Alvium 1500 C-120m/c Feature Specification 1500 C-120m (monochrome) 1500 C-120c (color) Sensor model ON Semiconductor AR0135CS Resolution 1280 (H) × 960 (V); 1.2 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/3; 4.8 mm × 3.6 mm; 6.0 mm diagonal Pixel size 3.75 µm ×...
  • Page 56 Specifications Feature Specification 1500 C-120m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 57: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE ON Semi AR0135CS absolute QE 1000 1050 1100 Wavelength [nm] Figure 7: Alvium 1500 C-120m/c (ON Semi AR0135CS) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.350 ON Semi AR0135CS spectral response 0.300...

  • Page 58: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 1 lane with 1.051 Gbps.

  • Page 59: Alvium 1500 C-210M/C

    Specifications Alvium 1500 C-210m/c Feature Specification 1500 C-210m (monochrome) 1500 C-210c (color) Sensor model ON Semiconductor AR0521SR Resolution 1928 (H) × 1088 (V); 2.1 MP Sensor type CMOS Shutter type Rolling shutter (RS) Sensor size Type 1/3.6; 4.2 mm × 2.4 mm; 4.9 mm diagonal Pixel size 2.2 µm ×...
  • Page 60 Specifications Feature Specification 1500 C-210m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 61: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE 100% ON Semi AR0521 absolute QE 1000 1050 1100 Wavelength [nm] Figure 9: Alvium 1500 C-210m/c (ON Semi AR0521HD) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.400 ON Semi AR0521 spectral response...

  • Page 62: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 2 lanes with 2.102 Gbps.

  • Page 63: Alvium 1500 C-500M/C

    Specifications Alvium 1500 C-500m/c Feature Specification 1500 C-500m (monochrome) 1500 C-500c (color) Sensor model ON Semiconductor AR0521SR Resolution 2592 (H) × 1944 (V); 5.0 MP Sensor type CMOS Shutter type Rolling shutter (RS) Sensor size Type 1/2.5; 5.7 mm × 4.3 mm; 7.1 mm diagonal Pixel size 2.2 µm ×...
  • Page 64 Specifications Feature Specification 1500 C-500m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 65: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE 100% ON Semi AR0521 absolute QE 1000 1050 1100 Wavelength [nm] Figure 11: Alvium 1500 C-500m/c (ON Semi AR0521SR) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.400 ON Semi AR0521 spectral response...

  • Page 66: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 67: Alvium 1500 C-501M/C Nir

    Specifications Alvium 1500 C-501m/c NIR Feature Specification 1500 C-501m NIR (monochrome) 1500 C-501c NIR (color) Sensor model ON Semiconductor AR0522 Resolution 2592 (H) × 1944 (V); 5.0 MP Sensor type CMOS Shutter type Rolling shutter (RS) Sensor size Type 1/2.5; 5.7 mm × 4.3 mm; 7.1 mm diagonal Pixel size 2.2 µm ×...
  • Page 68 Specifications Feature Specification 1500 C-501m/c NIR Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 69: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE 100% ON Semiconductor AR0522 absolute QE 1000 1050 1100 Wavelength [nm] Figure 13: Alvium 1500 C-501m/c NIR (ON Semi AR0522) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.450 ON Semiconductor AR0522 spectral response...

  • Page 70: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 71: Alvium 1800 C Model Specifications

    Specifications Alvium 1800 C model specifications Alvium 1800 C-030m VSWIR Feature Specification 1800 C-030m VSWIR Sensor model Sony IMX991 Resolution 656 (H) × 520 (V); 0.3 MP Sensor type InGaAs Shutter type Global shutter (GS) Sensor size Type 1/4; 3.28 mm × 2.6 mm; 4.1 mm diagonal Pixel size 5 µm ×...

  • Page 72: Relative Qe

    Specifications Feature Specification 1800 C-030m VSWIR Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 73: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 1 lane with 1.051 Gbps.

  • Page 74: Alvium 1800 C-040M/C

    Specifications Alvium 1800 C-040m/c Feature Specification 1800 C-040m (monochrome) 1800 C-040c (color) Sensor model Sony IMX287 Resolution 728 (H) × 544 (V); 0.4 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/2.9; 5 mm × 3.8 mm; 6.3 mm diagonal Pixel size 6.9 µm ×...
  • Page 75 Specifications Feature Specification 1800 C-040m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 76: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX287 absolute QE 1000 Wavelength [nm] Figure 16: Alvium 1800 C-040m/c (Sony IMX287) absolute QE Spectral response Figure 17: Alvium 1800 C-040m/c (Sony IMX287) spectral response Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 77: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 2 lanes with 2.102 Gbps.

  • Page 78: Alvium 1800 C-130M Vswir

    Specifications Alvium 1800 C-130m VSWIR Feature Specification 1800 C-130m VSWIR Sensor model Sony IMX990 Resolution 1296 (H) × 1032 (V); 1.3 MP Sensor type InGaAs Shutter type Global shutter (GS) Sensor size Type 1/2; 6.4 mm × 5.12 mm; 8.2 mm diagonal Pixel size 5 µm ×...

  • Page 79: Relative Qe

    Specifications Feature Specification 1800 C-130m VSWIR Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 80: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 1 lanes with 1.051 Gbps.

  • Page 81: Alvium 1800 C-158M/C

    Specifications Alvium 1800 C-158m/c Feature Specification 1800 C-158m (monochrome) 1800 C-158c (color) Sensor model Sony IMX273 Resolution 1456 (H) × 1088 (V); 1.6 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/2.9; 5 mm × 3.8 mm; 6.3 mm diagonal Pixel size 3.45 µm ×...
  • Page 82 Specifications Feature Specification 1800 C-158m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 83: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX273 absolute QE 1000 Wavelength [nm] Figure 20: Alvium 1800 C-158m/c (Sony IMX273) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX273 spectral response 0.3000 0.2000 0.1000...

  • Page 84: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 85: Alvium 1800 C-240M/C

    Specifications Alvium 1800 C-240m/c Feature Specification 1800 C-240m (monochrome) 1800 C-240c (color) Sensor model Sony IMX392 Resolution 1936 (H) x 1216 (V); 2.4 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/2.3; 6.7 mm × 4.2 mm; 7.9 mm diagonal Pixel size 3.45 µm ×...
  • Page 86 Specifications Feature Specification 1800 C-240m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 87: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX392 absolute QE 1000 Wavelength [nm] Figure 23: Alvium 1800 C-240m/c (Sony IMX392) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX392 spectral response 0.3000 0.2000 0.1000...

  • Page 88: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 89: Alvium 1800 C-319M/C

    Specifications Alvium 1800 C-319m/c Feature Specification 1800 C-319m (monochrome) 1800 C-319c (color) Sensor model Sony IMX265 Resolution 2064 (H) × 1544 (V); 3.2 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/1.8; 7.1 mm × 5.3 mm; 8.9 mm diagonal Pixel size 3.45 µm ×...
  • Page 90 Specifications Feature Specification 1800 C-319m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 91: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX265 absolute QE 1000 Wavelength [nm] Figure 25: Alvium 1800 C-319m/c (Sony IMX265) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX265 spectral response 0.3000 0.2000 0.1000...

  • Page 92: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 2 lanes with 2.102 Gbps.

  • Page 93: Alvium 1800 C-507M/C

    Specifications Alvium 1800 C-507m/c Feature Specification 1800 C-507m (monochrome) 1800 C-507c (color) Sensor model Sony IMX264 Resolution 2464 (H) × 2056 (V); 5.1 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 2/3; 8.5 mm × 7.1 mm; 11.1 mm diagonal Pixel size 3.45 µm ×...
  • Page 94 Specifications Feature Specification 1800 C-507m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 95: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX264 absolute QE 1000 Wavelength [nm] Figure 27: Alvium 1800 C-507m/c (Sony IMX264) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX264 spectral response 0.3000 0.2000 0.1000...

  • Page 96: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 2 lanes with 2.102 Gbps.

  • Page 97: Alvium 1800 C-508M/C

    Specifications Alvium 1800 C-508m/c Feature Specification 1800 C-508m (monochrome) 1800 C-508c (color) Sensor model Sony IMX250LLR Sony IMX250LQR Resolution 2464 (H) x 2056 (V); 5.1 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 2/3; 8.5 mm × 7.1 mm; 11.1 mm diagonal Pixel size 3.45 µm ×...
  • Page 98 Specifications Feature Specification 1800 C-508m/C Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 99: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX250 absolute QE 1000 Wavelength [nm] Figure 29: Alvium 1800 C-508m/c (Sony IMX250) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX250 spectral response 0.3000 0.2000 0.1000...

  • Page 100: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 101: Alvium 1800 C-511M/C

    Specifications Alvium 1800 C-511m/c Feature Specification 1800 C-511m (monochrome) 1800 C-511c (color) Sensor model Sony IMX547-AAMJ Sony IMX547-AAQJ Resolution 2464 (H) × 2064 (V); 5.1 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/1.8; 6.75 mm × 5.66 mm; 8.8 mm diagonal Pixel size 2.74 µm ×...
  • Page 102 Specifications Feature Specification 1800 C-511m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 103: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 31: Alvium 1800 C-511m/c (Sony IMX547) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...

  • Page 104: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 105: Alvium 1800 C-811M/C

    Specifications Alvium 1800 C-811m/c Feature Specification 1800 C-811m (monochrome) 1800 C-811c (color) Sensor model Sony IMX546-AAMJ Sony IMX546-AAQJ Resolution 2848 (H) × 2848 (V); 8.1 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 2/3; 7.8 mm × 7.8 mm; 11 mm diagonal Pixel size 2.74 µm ×...
  • Page 106 Specifications Feature Specification 1800 C-811m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 107: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 33: Alvium 1800 C-811m/c (Sony IMX546) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...

  • Page 108: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 109: Alvium 1800 C-1236M/C

    Specifications Alvium 1800 C-1236m/c Feature Specification 1800 C-1236m (monochrome) 1800 C-1236c (color) Sensor model Sony IMX304 Resolution 4112 (H) × 3008 (V); 12.4 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1.1; 14.2 mm × 10.4 mm; 17.6 mm diagonal Pixel size 3.45 µm ×...
  • Page 110 Specifications Feature Specification 1800 C-1236m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C +5 °C to +88 °C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 111: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX304 absolute QE 1000 Wavelength [nm] Figure 35: Alvium 1800 C-1236m/c (Sony IMX304) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX304 spectral response 0.3000 0.2000 0.1000...

  • Page 112: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 113: Alvium 1800 C-1240M/C

    Specifications Alvium 1800 C-1240m/c Feature Specification 1800 C-1240m (monochrome) 1800 C-1240c (color) Sensor model Sony IMX226 Resolution 4024 (H) x 3036 (V); 12.2 MP Sensor type CMOS Shutter type Rolling shutter (RS) Sensor size Type 1/1.7; 7.4 mm × 5.6 mm; 9.33 mm diagonal Pixel size 1.85 µm ×...
  • Page 114 Specifications Feature Specification 1800 C-1240m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C +5 °C to +88 °C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 115: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX226 absolute QE 1000 Wavelength [nm] Figure 37: Alvium 1800 C-1240m/c (Sony IMX226) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX226 spectral response 0.3000 0.2000 0.1000...

  • Page 116: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 117: Alvium 1800 C-1242M/C

    Specifications Alvium 1800 C-1242m/c Feature Specification 1800 C-1242m (monochrome) 1800 C-1242c (color) Sensor model Sony IMX545-AAMJ Sony IMX545-AAQJ Resolution 4128 (H) × 3008 (V); 12.4 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1/1.1; 11.31 mm × 8.24 mm; 14 mm diagonal Pixel size 2.74 µm ×...
  • Page 118 Specifications Feature Specification 1800 C-1242m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 119: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 39: Alvium 1800 C-1242m/c (Sony IMX545) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...

  • Page 120: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 121: Alvium 1800 C-1620M/C

    Specifications Alvium 1800 C-1620m/c Feature Specification 1800 C-1620m (monochrome) 1800 C-1620c (color) Sensor model Sony IMX542-AAMJ Sony IMX542-AAQJ Resolution 5328 (H) × 3040 (V); 16.2 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1.1; 14.6 mm × 8.33 mm; 16.8 mm diagonal Pixel size 2.74 µm ×...
  • Page 122 Specifications Feature Specification 1800 C-1620m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 123: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 41: Alvium 1800 C-1620m/c (Sony IMX542) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...

  • Page 124: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 125: Alvium 1800 C-2040M/C

    Specifications Alvium 1800 C-2040m/c Feature Specification 1800 C-2040m (monochrome) 1800 C-2040c (color) Sensor model Sony IMX541-AAMJ Sony IMX541-AAQJ Resolution 4512 (H) × 4512 (V); 20.4 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1.1; 12.36 mm × 12.36 mm; 17.5 mm diagonal Pixel size 2.74 µm ×...
  • Page 126 Specifications Feature Specification 1800 C-2040m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 127: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 43: Alvium 1800 C-2040m/c (Sony IMX541) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...

  • Page 128: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 129: Alvium 1800 C-2050M/C

    Specifications Alvium 1800 C-2050m/c Feature Specification 1800 C-2050m (monochrome) 1800 C-2050c (color) Sensor model Sony IMX183 Resolution 5376 (H) × 3672 (V); 19.7 MP Sensor type CMOS Shutter type Rolling shutter (RS) Sensor size Type 1; 13.1 mm × 8.8 mm; 15.86 mm diagonal Pixel size 2.4 µm ×...
  • Page 130 Specifications Feature Specification 1800 C-2050m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C +5 °C to +88 °C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 131: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX183 absolute QE 1000 Wavelength [nm] Figure 45: Alvium 1800 C-2050m/c (Sony IMX183) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX183 spectral response 0.3000 0.2000 0.1000...

  • Page 132: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation in rolling shutter (RS) mode, as defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 133: Alvium 1800 C-2460M/C

    Specifications Alvium 1800 C-2460m/c Feature Specification 1800 C-2460m (monochrome) 1800 C-2460c (color) Sensor model Sony IMX540-AAMJ Sony IMX540-AAQJ Resolution 5328 (H) × 4608 (V); 24.6 MP Sensor type CMOS Shutter type Global shutter (GS) Sensor size Type 1.2; 14.60 mm × 12.63 mm; 19.3 mm diagonal Pixel size 2.74 µm ×...
  • Page 134 Specifications Feature Specification 1800 C-2460m/c Storage temperature -20° C to +85° C ambient temperature Operating temperature Hardware Housing Cooling areas Mainboard option Not applicable Bare board -20° C to +85° C -20° C to +85° C -20° C to +65° C Open housing Relative humidity 0% to 80% (non-condensing)

  • Page 135: Absolute Qe

    Specifications Absolute QE Blue QE Green QE Red QE Monochrome QE Sony IMX54x absolute QE 1000 Wavelength [nm] Figure 47: Alvium 1800 C-2460m/c (Sony IMX540) absolute QE Spectral response Blue Response Green Response Red Response Monochrome Response 0.4000 Sony IMX54x spectral response 0.3000 0.2000 0.1000...

  • Page 136: Frame Rates With Cropping

    Specifications Frame rates with Cropping Values were calculated for typical operation defined in Frame rates with Cropping/ROI frame rates on page 49. Frame rates at maximum bandwidth calculates for 1.051 Gbps per lane. To reach the maximum frame rate available for typical operation, the bandwidth for image traffic is at 4 lanes with 4.204 Gbps.

  • Page 137: White Balance Default

    Specifications White balance default Alvium color cameras are balanced for neutral color reproduction with an illumination of 5000 °K (warm daylight). Table 59 shows default values for the red and blue channel by model. For different illuminations, use auto white balance or adapt the color channel values manually.

  • Page 138: Dimensions And Mass

    Specifications Dimensions and mass Bare board cameras Specification Dimensions (L × W × H [mm]) [Model specific] × 26 × 26 Mass [g] 10 g Table 60: Bare board dimensions and mass Open housing cameras S-Mount CS-Mount C-Mount Flange focal distance, optical [mm] 12.63 12.526 17.526...

  • Page 139: Bare Board

    Specifications Bare Board 26.3 26.4 ±0.10 A (10 : 1) IPSB CODE B1 ± 10% Sensor area ±0.1 Do not mount here B2 ± 10% B3 ± 10% Figure 49: Bare Board dimensions Dimensions that are common between different models are shown in Figure model specific dimensions are listed in Table...
  • Page 140 Specifications ML: Mechanical CH: Components B1: Board B2: Board B3: Board Camera model length* height, thickness thickness thickness for C-Mount incl. the sensor Alvium 1800 C-507m/c 19.929 mm 2.27 mm 1.25 mm 2.20 mm 3.75 mm Alvium 1800 C-508m/c 19.929 mm 2.27 mm 1.25 mm 2.20 mm...

  • Page 141: Open Housing S-Mount

    Specifications Open Housing S-Mount M3 - 2.5 (2x) 29.4 19.2 M2 - 2 (4x) M12x0.5 - 12 M3 - 2.5 (2x) Figure 50: Open Housing S-Mount dimensions Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 142: Open Housing Cs-Mount

    Specifications Open Housing CS-Mount 19.4 MIN - 21.4 MAX M2 - 2.0 CS - Mount Figure 51: Open Housing CS-Mount dimensions Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 143: Open Housing C-Mount

    Specifications Open Housing C-Mount 29.4 23.5 MIN - 25.5 MAX M2 - 2 C-Mount Figure 52: Open Housing C-Mount dimensions Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 144: Lens Mounts And Maximum Protrusion

    Specifications Lens mounts and maximum protrusion No need to readjust lens mounts Alvium CSI-2 camera mounts are adjusted with high precision during manufacturing. Construction ensures permanent accuracy without need to readjust. Maximum Maximum protrusion protrusion Filter Electronics Sensor Sensor Lens mount Lens mount Figure 53: Maximum protrusion S-Mount (left);...

  • Page 145: Ir Cut Filter

    Specifications IR cut filter Table 64 shows which Alvium models are equipped with an IR cut filter. The filter is permanently installed and cannot be removed. Color or monochrome model Bare Board S-Mount CS-Mount C-Mount Color No filter Type Hoya C-5000 IR cut filter Monochrome and VSWIR No filter Table 64: Optical filter availability...

  • Page 146: Sensor Position Accuracy

    Specifications Sensor position accuracy Sensor shift and rotation Gray rectangle Red rectangle Straight line: Reference edge : Current reference edge Figure 55: Sensor shift and rotation The following table defines the manufacturing accuracy for sensor shift. Criteria Subject Properties Optical alignment of the photosensitive sensor area into the camera Alignment method front module (lens mount front flange) Sensor...

  • Page 147: Sensor Tilt

    Specifications Sensor tilt Gray rectangle Red rectangle Figure 56: Sensor tilt The following table defines sensor tilt as the variance between highest and lowest pixel of a sensor along the z-axis, measured in micrometers. Alvium model Pixel size Maximum tilt Alvium 1500 C-050m/c 4.8 µm ×...

  • Page 148: Lenses: Focal Length Vs. Field Of View

    Lenses: Focal length vs. field of view This chapter includes: About this chapter .............. 150 Optical vignetting with certain lenses ........ 150 About S-Mount lenses ............151 Focal length vs. field of view..........151 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 149: About This Chapter

    Production spread causes tolerances for all values, including actual focal lengths. Calculations apply for image reproduction without distortion. Therefore, values do not apply for fisheye lenses. Please ask your Allied Vision Sales representative in case you need more information. Optical vignetting with certain lenses Lenses with short focal lengths may show optical vignetting at the edges of the image.

  • Page 150: About S-Mount Lenses

    Lenses: Focal length vs. field of view About S-Mount lenses Alvium CSI-2 models with S-Mount have no filter. For typical applications, we recommend using S-Mount lenses with an integrated IR cut filter for a better image quality. Read Mounting and focusing S-Mount lenses on page 176 to avoid damage when using S-Mount lenses.

  • Page 151: Alvium 1500 C-120M/C

    Lenses: Focal length vs. field of view Alvium 1500 C-120m/c Values apply to 1500 C-120m/c cameras with Type 1/3 (6.0 mm diagonal) sensors. Field of view (H × V [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 852 ×...

  • Page 152: Alvium 1500 C-500M/C, 1500 C-501M/C Nir

    Lenses: Focal length vs. field of view Alvium 1500 C-500m/c, 1500 C-501m/c NIR Values apply to 1500 C-500m/c and 1500 C-501m/c NIR cameras with Type 1/2.5 (7.1 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 1013 ×...

  • Page 153: Alvium 1800 C-040M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-040m/c Values apply to 1800 C-040m/c cameras with Type 1/2.9 (6.3 mm diagonal) sensors. Field of view (H × V [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 892 ×...

  • Page 154: Alvium 1800 C-158M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-158m/c Values apply to 1800 C-158m/c cameras with Type 1/2.9 (6.3 mm diagonal) sensors. Field of view (H × V [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 892 ×...

  • Page 155: Alvium 1800 C-319M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-319m/c Values apply to 1800 C-319m/c cameras with Type 1/1.8 (8.9 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 735 ×...

  • Page 156: Alvium 1800 C-511M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-511m/c Values apply to 1800 C-511m/c cameras with Type 1/1.8 (8.8 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 671 ×...

  • Page 157: Alvium 1800 C-1236M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-1236m/c Values apply to 1800 C-1236m/c cameras with Type 1.1 (17.6 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 872 ×...

  • Page 158: Alvium 1800 C-1242M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-1242m/c Values apply to 1800 C-1242m/c cameras with Type 1/1.1 (14 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 931 ×...

  • Page 159: Alvium 1800 C-2040M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-2040m/c Values apply to 1800 C-2040m/c cameras with Type 1.1 (17.5 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 1018 ×...

  • Page 160: Alvium 1800 C-2460M/C

    Lenses: Focal length vs. field of view Alvium 1800 C-2460m/c Values apply to 1800 C-2460m/c cameras with Type 1.2 (19.3 mm diagonal) sensors. Field of view (H × V in [mm]) Focal length [mm] Object distance = 500 mm Object distance = 1000 mm 898 ×...

  • Page 161: Camera Control

    Camera control This chapter includes: Access modes..............163 V4L2 controls and register controls ........165 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 162: Access Modes

    Reference document at www.alliedvision.com/en/support/technical-documentation/ alvium-csi-2-documentation. Video4Linux Access Controls the camera by V4L2 controls, using the Allied Vision driver for CSI-2 cameras directly. Existing PC-based machine vision applications can be scaled down to V4L2 on lean embedded systems, reducing power consumption and costs.

  • Page 163: Access Modes Data Flow

    Camera control Access modes data flow Other Imaging applications application V4L2 GStreamer OpenCV User space Soft ware V4L2 framework Other V4L2 V4L2 Driver for Alvium CSI-2 driver ioctls* cameras Kernel space Direct I2C driver: MIPI CSI-2 driver: Register Control data Image data Access Embedded...

  • Page 164: V4L2 Controls And Register Controls

    Camera control V4L2 controls and register controls Embedded applications often use V4L2 controls provided with the Linux kernel to operate and configure the camera. Machine vision applications typically use GenICam SFNC features enabled by a transport layer communicating between a software development kit (SDK) and the interface driver.

  • Page 165: Installing The Hardware

    Installing the hardware This chapter includes: Touching hot cameras ............167 Scope of instructions ............167 Bare board cameras ............167 Connecting FPC cable and FPC connectors ......169 Mounting the heat sink............171 Mounting the camera ............172 Mounting the lens............... 175 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 166: Touching Hot Cameras

    Installing the hardware Touching hot cameras CAUTION Risk of burns A camera in operation can reach temperature levels which could cause burns. • Wear protective gloves when you touch a camera that is heated up. • Ensure proper cooling of the camera. Scope of instructions Software installation Software downloads and documentation...

  • Page 167: Serial Numbers Of AlviumĀ® Chips And Bare Board Cameras

    11500 Chip SN: 183603543 SN: R7QW5 Alvium® chip SN Allied Vision TASCHENWEG 2A 07646 STADTRODA Made in Germany Figure 59: Sandwich label on blister packs shipped for bare board cameras Before operating the camera, we recommend you to pull the sandwich label off the blister pack and stick it close to the camera.

  • Page 168: Connecting Fpc Cable And Fpc Connectors

    Connecting FPC cable and FPC connectors Connecting Alvium CSI-2 cameras to embedded boards • For evaluation, Allied Vision offers components to connect Alvium CSI-2 cameras to embedded boards. Adapter boards provide common pinning and voltage for connections to the camera using FPC cables.
  • Page 169 Installing the hardware NOTICE Damage to the camera by reverse polarity If Alvium CSI-2 cameras are powered with reverse polarity, camera electronics is damaged. • Before connecting camera power and I/O power, carefully read FPC connector pin assignment on page 181. •...

  • Page 170: Mounting The Heat Sink

    Installing the hardware Mounting the heat sink Keep the operating temperature in the specified range to enable best image quality and to protect the camera from damage. We recommend you to equip Alvium bare board and open housing cameras with heat sinks. Optimizing heat dissipation For details, see the Optimum Heat Dissipation for Housed Alvium Cameras application note at...

  • Page 171: Mounting The Camera

    Installing the hardware Mounting the camera CAUTION Injury by falling cameras or lenses A falling camera or lens can cause injury. • Ensure proper mounting of cameras and lenses, especially for dynamic applications. • Mount cameras as described in the instructions. •...

  • Page 172: Mounting Open Housing Cameras

    Installing the hardware Schematic drawings in Figure 68 show the Alvium CSI-2 bare board camera. Only the mounting area (gray) can be used for mounting. The sensor and electronics area (red) must not be touched nor put at mechanical stress. a = Mounting hole | b = Mounting hole and chassis ground Figure 68: Mounting area of Alvium CSI-2 bare board cameras connector side (left);...

  • Page 173: Front Mounting

    Installing the hardware Front mounting Detail d: Figure 70: Camera front with mounting threads (d) The maximum torque value applies only if the entire thread engagement is used. For other values, see Adapting maximum torque values on page 174. 1. Mount the camera to the base using suitable M2 screws at 0.17 Nm maximum torque for a thread engagement (C) of 1.7 mm between screws and mounting threads, see Figure...

  • Page 174: Mounting The Lens

    Installing the hardware To ensure that the bolts do not become loose over time, we recommend you to use means for securing bolts, such as screw locking varnish. Tripod adapter For more information, see the Alvium Cameras Accessory Guide at www.alliedvision.com/en/support/technical-documentation/ alvium-csi-2-documentation.

  • Page 175: Mounting And Focusing S-Mount Lenses

    Installing the hardware Mounting and focusing S-Mount lenses Allied Vision S-Mount lenses For technical data of Allied Vision S-Mount lenses with dedicated operating instructions, see the S-Mount Lenses User Guide at www.alliedvision.com/fileadmin/content/documents/products/accessories/lenses /Allied_Vision/User_Guide/S-Mount-Lenses_User-Guide.pdf. This section instructs how to use S-Mount lenses with your camera safely.
  • Page 176 Installing the hardware NOTICE Damage to sensor, optics, or electronics by improper handling If an S-Mount lens is screwed against the sensor or electronics, sensor, lens, or electronics can be damaged. • Screw in the lens at less than 11.0 mm maximum protrusion. •...
  • Page 177 Installing the hardware NOTICE Damage to lens threads and fixing nut by excessive force If the fixing nut is screwed with too much force, threads are worn out and the lens cannot be locked anymore. Screw fixing nuts hand tight to keep the lens in a fixed position. Locking focus Pinch nose pliers are used to screw the fixing nut: 7.

  • Page 178: Camera Interfaces

    Camera interfaces This chapter includes: Recommended accessories ..........180 Back panel ................180 FPC connector pin assignment ........... 181 Non-isolated, programmable GPIOs........183 Status LED................185 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 179: Recommended Accessories

    Camera interfaces Recommended accessories Compatible electronics accessories For more information, see the Alvium Cameras Accessory Guide at www.alliedvision.com/en/support/technical-documentation/ alvium-csi-2-documentation. Back panel FPC connector Pin 1 Figure 77: Camera back panel For connector pin assignment, see FPC connector pin assignment on page 181. Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 180: Fpc Connector Pin Assignment

    Camera interfaces FPC connector pin assignment Alvium CSI-2 cameras have a 22-pin Hirose FH55-22S-0.5SH connector. NOTICE Damage to the camera by reverse polarity If Alvium CSI-2 cameras or camera I/Os are powered with reverse polarity, camera electronics can be damaged. Observe polarity for camera and I/O power.
  • Page 181 Camera interfaces Signal Direction Level Description VCC-EXT-IN PWR IN 4.5 to 5.5 VDC Power supply voltage Maximum input current: 1.5 A EXT-GPIO 0 IN/OUT (low) = -0.3 to 0.8 VDC I2C Control Internal pull-up resistor: 33 to 63 kΩ (high) = 2.0 to 5.5 VDC (low) = 0 to 0.4 VDC (high) = 2.4 to 3.3 VDC at 12 mA EXT-GPIO 1...

  • Page 182: Non-Isolated, Programmable Gpios

    Camera interfaces Non-isolated, programmable GPIOs Available GPIOs From four GPIOs, I2C uses two GPIOs for control traffic. Therefore, only two GPIOs are available for user control of the camera. I/O cables maximum length The maximum length for I/O cables must not exceed 30 m. GPIOs description The camera has four non-isolated GPIOs that can be configured by software to act as inputs or outputs.

  • Page 183: Input Levels

    Camera interfaces Input levels The GPIOs can be connected directly to the system controlling the camera for voltages up to 5.5 VDC. An external resistor is not necessary. NOTICE Damage to the camera by high input voltage Exceeding maximum input voltage can damage the camera. Keep maximum input voltage below 5.5 VDC.

  • Page 184: Status Led

    Camera interfaces Status LED Alvium CSI-2 cameras have a green status LED. The following table describes the flashing pattern indicating different events. Inverse flashing: If the LED is already on, it is switched off for a short time. Normal operation LED codes Behavior Status...

  • Page 185: Triggering

    Triggering This chapter includes: Availability of triggering controls ........187 Trigger signal flow ............... 187 Trigger latency..............188 Triggering with rolling shutter cameras......188 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 186: Availability Of Triggering Controls

    Triggering Availability of triggering controls Alvium CSI-2 cameras can be triggered by the following boards: • NVIDIA Jetson AGX Xavier Developer Kit • NVIDIA Jetson Nano Developer Kit • NVIDIA Jetson TX2 Developer Kit • NVIDIA Jetson Xavier NX Developer Kit. Downloads Some boards have restrictions.

  • Page 187: Trigger Latency

    Triggering Term Description External signal Electrical trigger signal starting the signal flow Exposing a frame Exposure Active Readout Active Reading out a frame Waiting for a trigger Frame Start Trigger Wait Acquisition Active Enables frame acquisition: Expose, read out data, or wait for triggers. Table 93: Trigger signal flow, legend Trigger latency In theory, a trigger creates an immediate response of the camera, depending on...

  • Page 188: Trigger Delay With 1500 C-120 Cameras

    Triggering External signal Sensor cycle state Exposure area Readout area Idle Exposure area Readout area Exposure area Readout area Delay Delay Exposure start delay Figure 81: Triggering rolling shutter (RS) cameras Conditions Results Exposure time is shorter than readout time. Trigger 1 starts exposure 1 with a delay Exposure time is shorter than readout time, but Trigger 2 starts exposure 2 with a delay shorter...

  • Page 189: Image Data Flow

    Image data flow This chapter includes an image data flow of Alvium CSI-2 cameras. Alvium CSI-2 Cameras User Guide V2.6.2...
  • Page 190 Image data flow Figure 82 shows image data processing in Alvium CSI-2 cameras in general. Sensor frontend Sensor frontend Sensor Analog Region of interest Region of interest Region of interest Gain Gain Black level ReverseY ReverseY (ROI) (ROI) (ROI) Analog Analog Analog Analog...

  • Page 191: Performance

    Performance This chapter includes: Image transfer with rolling shutter cameras ...... 193 Frame rate jitter ..............193 Control value changes on a streaming camera ....193 Value changes by control interdependencies..... 194 Dark current compensation ..........195 Shutter types affecting image readout ....... 198 Alvium CSI-2 Cameras User Guide V2.6.2...

  • Page 192: Image Transfer With Rolling Shutter Cameras

    Performance Image transfer with rolling shutter cameras Affected models: Alvium 1500 C-210m/c, C-500m/c, 1800 C-1240m/c, and 1800 C-2050m/c If acquisition is started and stopped in a short sequence, no image is transferred to the host. The duration cannot be predicted, because it depends on various factors. Frame rate jitter Affected models: Alvium 1500 C-120m/c, C-210m/c, C-500m/c, 1800 C-1240m/c, and 1800 C-2050m/c...

  • Page 193: Value Changes By Control Interdependencies

    Performance Value changes by control interdependencies The conversion between time and clock cycles affects control values. Controls for pixel format, bandwidth, cropping (ROI), and exposure time are related to each other. Changing values for one control can change values for another control. For example, frame rates can be reduced when is changed MIPI Data Format...

  • Page 194: Impact By Other Controls

    Performance Impact by other controls Output Input Exposure time values Frame rate Exposure Time Affected as expected Affected Affected Affected CSI-2 Lane Count Not affected Affected Height Width May be affected May be affected Table 95: Impact by other controls Exposure times and frame rates with Sony IMX rolling shutter cameras Affected models: Alvium 1800 C-1240 m/c and C-2050m/c...

  • Page 195: Additional Compensation

    Performance Effective signal versus noise Description Margin Saturation = 255 The pixel has accumulated no dark current, the margin has maximum size. Effective image signal Black level = 0 Margin Saturation = 255 Effective The pixel has accumulated some dark current, reducing the size image signal of the margin.

  • Page 196: Black Level Compensation For 1500 C-050M/C

    Performance Measures for type 2 compensation All other Alvium camera models support compensation type 2. You can increase the margin size by using gain, with the following side effects: • To give space to a larger margin, the effective pixel capacity decreases. •...

  • Page 197: Shutter Types Affecting Image Readout

    Performance Shutter types affecting image readout Some Alvium CSI-2 camera models are operated using global shutter (GS), other models use rolling shutter (RS): Property Rolling shutter (RS) Global shutter (GS) Line readout Lines Lines Time Time Line exposure start Deferred from line to line Common for all lines Image acquisition of moving objects...

  • Page 198: Index

    .............. 181 LED ..............185 lens mounts ........... 145 lenses ............149 access modes ..........163 maximum protrusion ....... 43 Allied Vision contact ........17 mounting ..........175 bandwidth ............49 MIPI CSI-2 ............45 black level compensation ......197 performance ..........193 compliance ............34...

This manual is also suitable for:

Alvium 1500 c-050mAlvium 1500 c-050cAlvium 1500 c-120mAlvium 1500 c-120cAlvium 1500 c-210mAlvium 1500 c-210c ... Show all

Table of Contents
