2. Installation

Output Circuits

Notification Appliance Circuits

The control panel provides two Style Z (Class A) or Style Y (Class B) Notification Appliance Circuits,
which are supervised and power-limited.
Each circuit is capable of 1.5 amps of current. Total current drawn from both NACs and both Releasing
Circuits (see "Releasing Circuits" on page 21) cannot exceed 2.25 amps.
Note: Refer to "Appendix B: Compatible Devices" on page 41 for suitable devices.
• For DIP switch configuration, see "Setting Mode of Operation" on page 28.
• For non-silenceable service on NAC#1, see "Non-Silenceable Service" on page 36.
• Unused circuits must be connected with a dummy load as shown.
20
Style Z
(Class A)
Polarized
Bell
Polarized
Strobe
Polarized
Horn

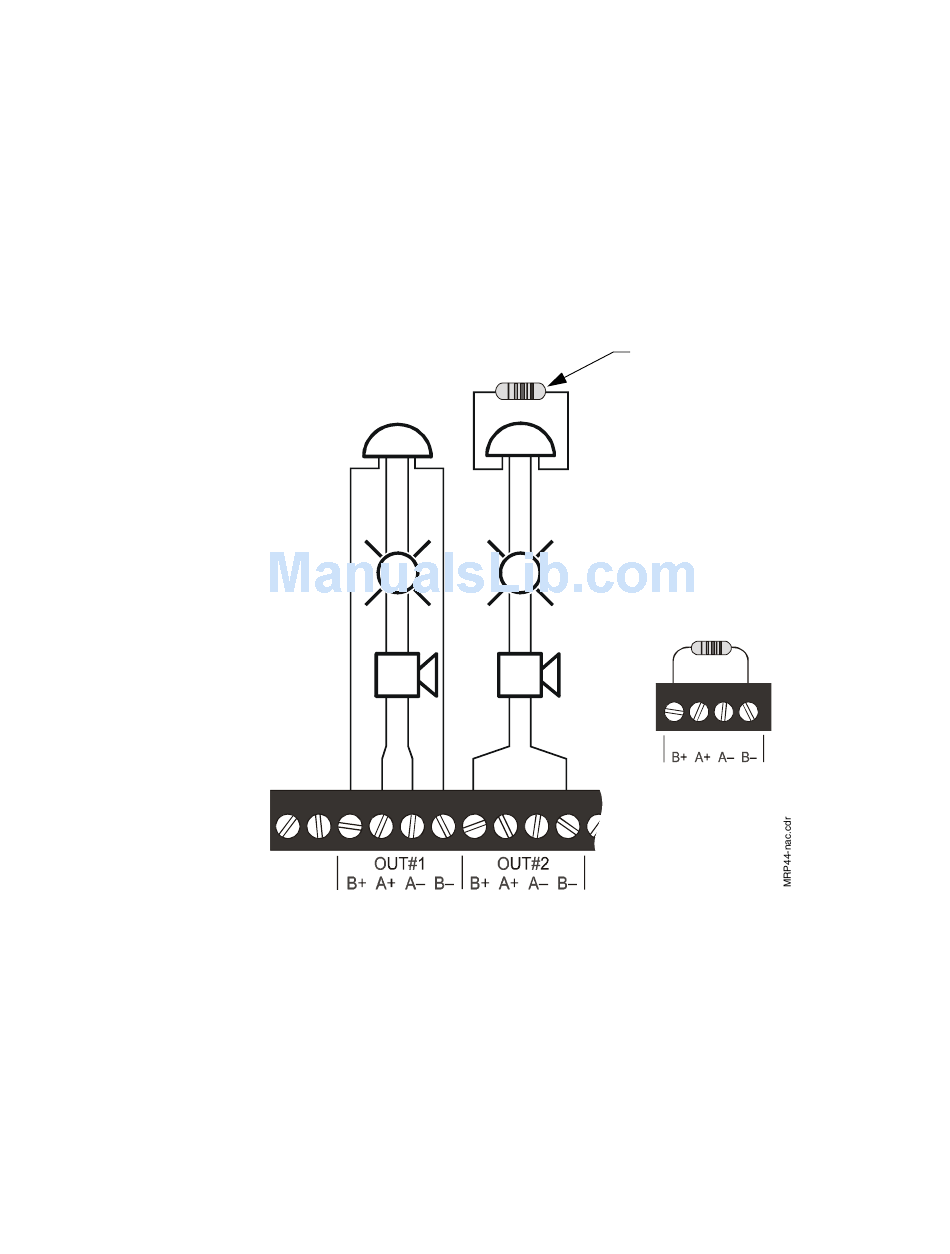

Figure 9 Notification Appliance Circuits
Style Y
4.7K, 1/2-Watt ELR
(Class B)
(PN 71252)
Unused Style Y Circuit
(4.7K, 1/4-Watt ELR)
T B 2
