Power-limited Wiring Requirements

Observe polarity when connecting the batteries. Connect the battery cable (p/n 75203 or 75202, depending
on terminal size of battery) to terminal J9 on the main circuit board using the plug-in connector provided.
Connect red wire to positive (+) terminal and black wire to negative (–) terminal on opposing batteries.
Do NOT connect battery interconnect wire at this time.
Power-limited Wiring Requirements
Power-limited and nonpower-limited circuit wiring must remain separated in the cabinet. All power-
limited circuit wiring must remain at least 0.25 in (6.35 mm) away from any nonpower-limited circuit
wiring. Furthermore, all power-limited circuit wiring and nonpower-limited circuit wiring must pass
through separate knockouts and/or conduits.
PDRP-1002 Instruction Manual PN 51135:B0 04/06/01
J2
J9
J3

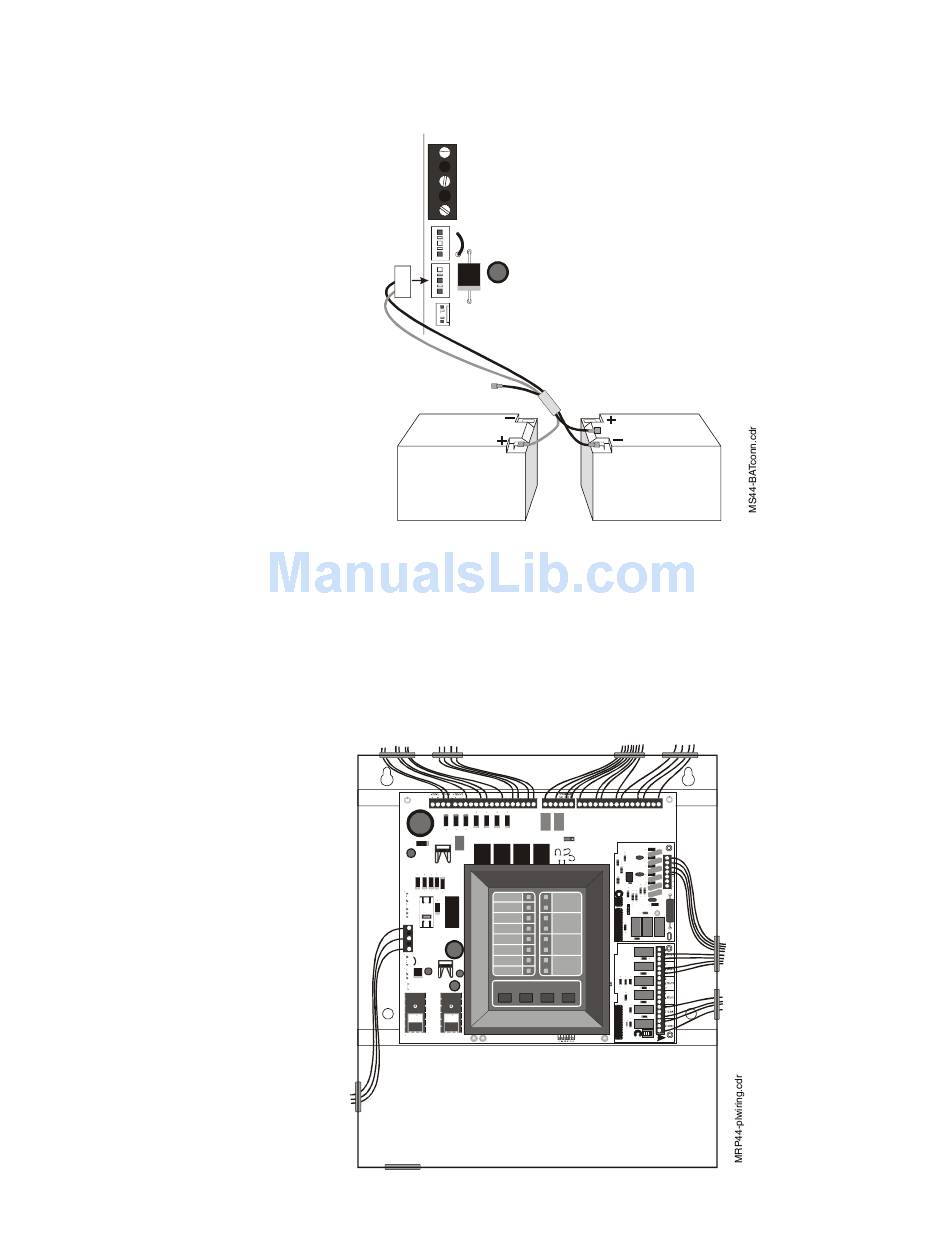

Figure 5 Battery Installation and Connection
Power-limited Nonpower-limited
Circuits
Circuits
TB1
J1
TB5
J2
A MP
J9
J3
AC Power
Figure 6 Power-limited Wiring Requirements
T B 5
A M P
Power-limited Circuits
O UT#4 A L A RM IN # 1 IN # 2 IN # 3
O UT#1 O UT#2 O UT#3
B + A + A– B – B + A + A– B – B + B – B + B – NO NC C B + A + A– B – B + A + A– B – B + A + A– B –
TB2 TB3
JP 1
GE N
S UPV 1
A LM1
S UPR 2
GE N
A LM2
J4
T BL
A C P OW E R
ZO N E 1 J1
J5
S Y ST EM
A LA R M
A LA R M T ES T J2
ZO N E 2
S U P E R V IS O RY
S Y ST EM
TR O UB LE
ZO N E 3
CIR C UIT
TR O UB LE
A LA R M
S IL EN C E D
ZO N E 4
P O W E R
TR O UB LE
J1 0
TO NE A LAR M A LAR M S YS TEM
S ILE NCE S ILE NCE A CTIVATE RE SE T
J7
J8
J2
LAT CH
S W 1
2. Installation
IN # 4
B + A + A– B –
TB4
T B1
OP T1
Power-limited
T B1
Circuits
OP T2
Nonpower-limited
Circuits
DISABLE
