Options

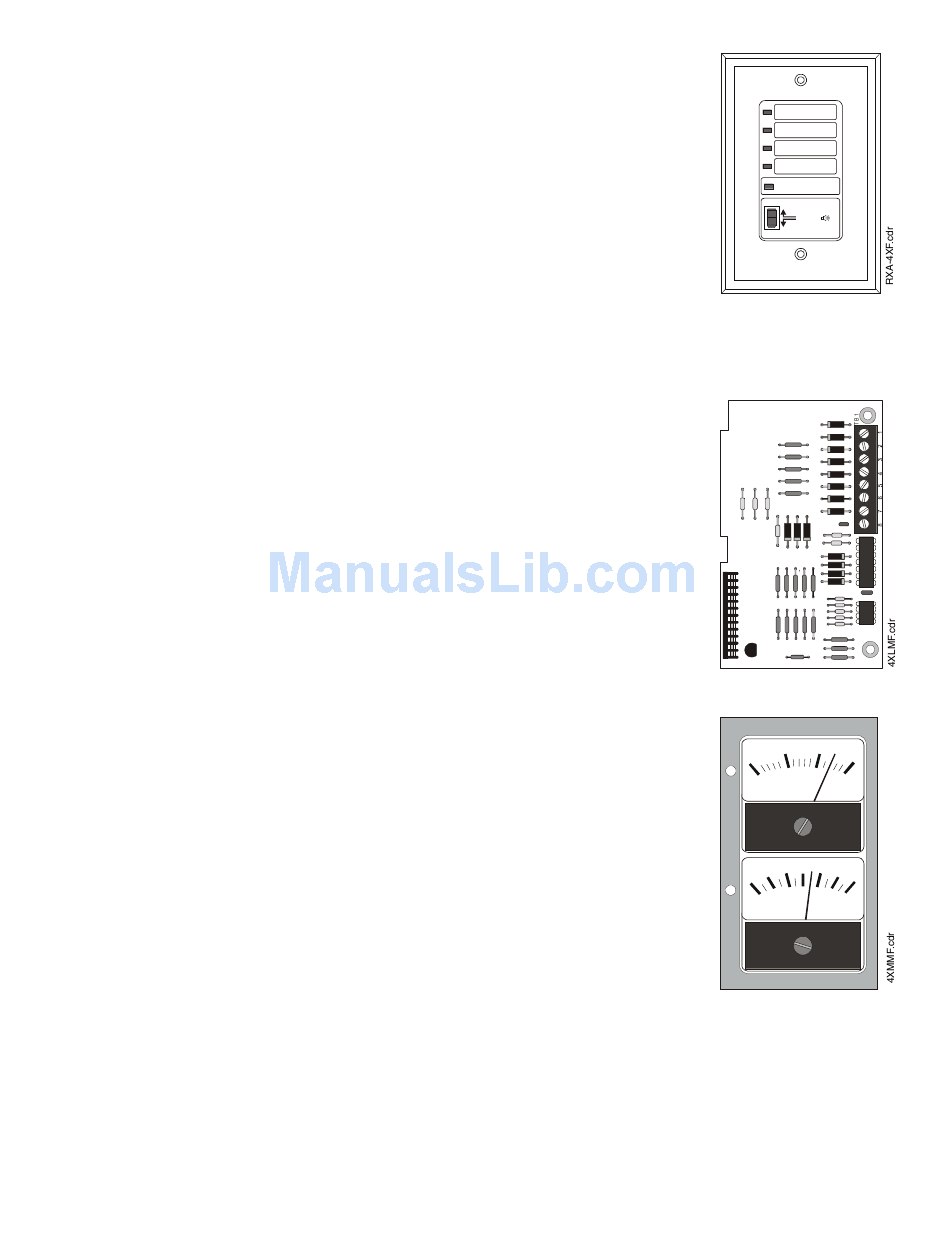

Remote Annunciator - RZA-4X

The Remote Annunciator mounts on a standard single-gang box, and provides
LED indication of the same functions as the zone relay module. For example,
with DIP switch #1 'ON' and DIP switch #2 'OFF':
• One zone in alarm (red)
• Two zones in alarm (red)
• Releasing Circuit 1 (red)
• Releasing Circuit 2 (red)
• System Trouble (yellow)
A local trouble sounder and silence switch are also provided. All LED wiring
is supervised for open conditions. Any open condition will cause the System
Trouble LED to illuminate. Slide-in paper labels permit an easy change of zone information.
Note: The Remote Annunciator requires the use of an LED Interface Module as described below.

LED Interface Module - 4XLM

The LED Interface Module supports the RZA-4X Remote Annunciator
Module. Annunciator wiring is supervised for open conditions by this module.
The module mounts to the main board on the J8 option connector.
Specifications
Maximum voltage/current, each output: 27.6 V / 8 mA.
Outputs are power-limited.
Meter Module (Volts-Amps) - 4XMM
The Meter Module provides a voltmeter to measure the voltage across the
batteries and an ammeter to measure the charging current to the batteries. The
meters are provided as an assembly that mounts to the lower left-hand corner
of the cabinet.
PDRP-1002 Instruction Manual PN 51135:B0 04/06/01
1. Product Description
S Y S TE M TR O U B L E
R E -S O U N D
T O N E
S IL E N C E
FIR E A L A R M A N N U N C IATO R
J 2
1 0 2 0
3 0
0
D C V OLT S
0
3
3
D C A M P E R E S
11
