2. Installation

Power Connections

WARNING: Do not apply any type power to this control panel until all connections have been
!
made and verified.

AC Connections

Disconnect (open) the circuit breaker in the AC main breaker panel and tag it "Out of Service".
Note: Refer to "Power-Up Procedure" on page 31 before closing AC breaker.
Primary power required for the PDRP-1002 control panel is 110/120 VAC, 50/60 Hz, 1.2 amps and for
the PDRP-1002E is 220/240 VAC, 50/60 Hz, 0.6 amps.
Overcurrent protection for this circuit must comply with Article 760 of the National Electrical Code (NEC)
and/or local codes. Use #14 AWG (2.00 mm
A separately fused and protected power connection to the panel should be supplied to prevent voltage
fluctuation and interruption of power.

Battery (DC) Connections

WARNING: Battery contains sulfuric acid which can cause severe burns to the skin and eyes and
!
can destroy fabrics. If contact is made with sulfuric acid, immediately flush the skin or eyes with
water for 15 minutes and seek immediate medical attention.
CAUTION: Do NOT connect the battery interconnect wire at this time. Make this connection AFTER
!
initial system primary power connection.
Place batteries into bottom of cabinet as shown below. See "Appendix A: Secondary Power Calculations"
on page 39 for calculation of correct battery rating.
Note: Batteries are shipped separately and should be mounted only after the cabinet has been installed, the conduit
connected, and all wiring pulled, tested, and made ready to be terminated.
16
2
) or larger wire with 600V insulation rating.
Ground
Neutral
Hot

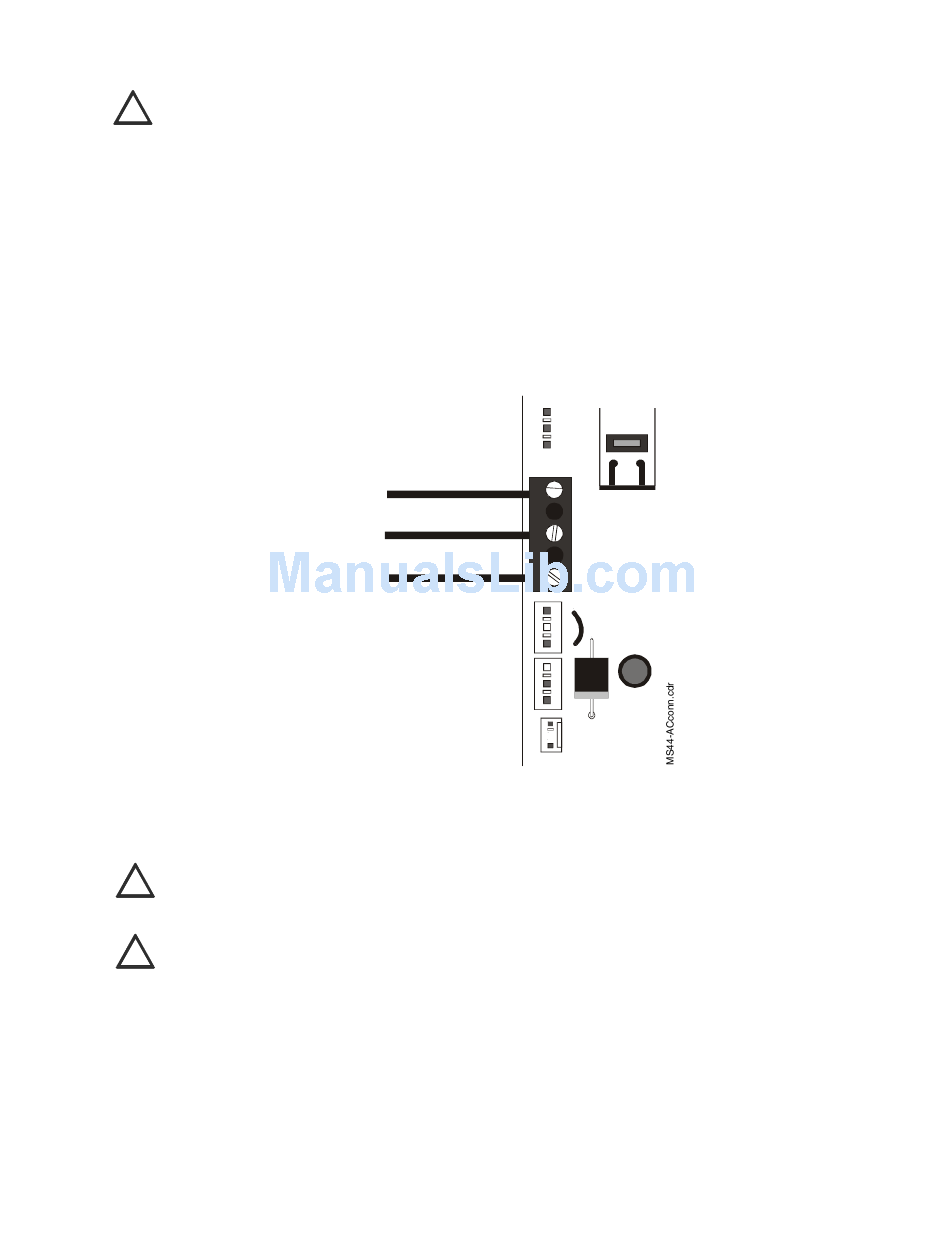

Figure 4 AC Power Connections
Power Connections
TB 5
J2
AM P
J9
J3
Continued on the next page...
