Speco CVC627MT Manual

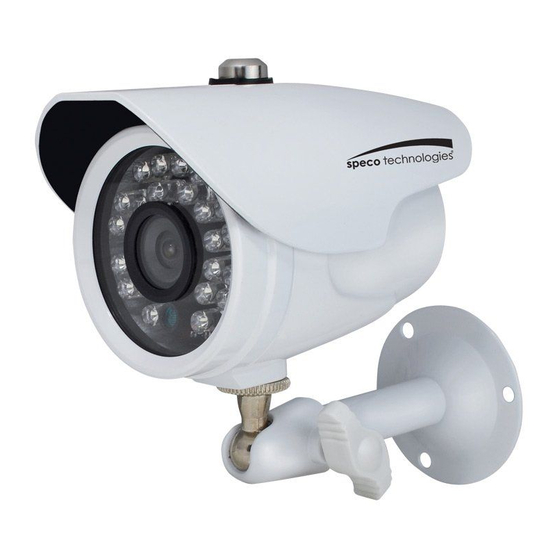

HD-TVI Intense IR 1080p 2MP Outdoor Bullet Camera
For Waterproof Marine, UTC, 2BNC out for TVI & CVBS
CVC627MT
3.6mm fixed lens, white housing
DIMENSIONS
Unit : inch
FEATURES
• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
• Superior low-light performance
• True day/night operation – mechanical IR cut filter
• 24 IR LEDs (IR range 65')
• 3.6mm fixed lens
• Waterproof Marine applications
• 3-axis bracket for wall and ceiling mounting
• Full OSD operation through UTC (up the coax)
• Additional 960H analog output (BNC out in Yellow)
• Signal distance up to 1600 feet*
• 12VDC / 24VAC Dual voltage operation
• IP67 compliant
• 5 year warranty
SPECIFICATIONS
Image Sensor.................. 1/3" Progressive Scan CMOS, 2MP
Minimum Illumination....... 0.00 lux (IR LED on)
IR LED wavelength.......... 850nm
Effective Pixels................ 1984 (H) x 1105 (V)
Total Pixels...................... 2000 (H) x 1121 (V)
Scanning System............ Progressive
S/N Ratio......................... More than 50dB
Output Resolution............ 1920x1080 @ 30fps
Video Output.................... 1.0Vp-p / 75 Ohms
Electronic Shutter............ Auto / Manual (1/30 – 1/30,000 sec.)
Day / Night....................... Auto / Color / BW / External
Test Monitor Output......... CVBS (BNC out in Yellow)
Communication............... UTC (up the coax)
Power............................. 12VDC (power supply not included)
Power Consumption........ 12VDC, 350mA max.
Operating Temperature.... 14° F – 120° F
Unit Dimensions.............. 4.01" (L) x 2.47" (Dia.)
Unit Weight...................... 12 oz.
Certifications.................... FCC, RoHS
Signal Distance............... Up to 1600 feet
(depending on coax quality)*
Front View Side View
OSD M ENU T REE
IRIS
EXPOSURE
• B RIGHTNESS
BACKLIGHT
• W DR • B LC
DAY / N IGHT
• B /W
• C OLOR
COLOR
• A WB • C OLOR G AIN
DNR
• L OW • M IDDLE
• S HARPNESS
• A CE ( D-­‐WDR)
Motion
System
• O UTPUT • F RAME R ATE
• C OLOR S PACE
EXIT
OSD M ENU D etails
※ OSD Menu available only when using TVI output.
Not available in standard analog mode.
IRIS : C ontrols v arious s eHngs r elated t o t he l ens.
E LC ( Electronic L ight C ontrol) : U sed w ith m anual l ens o nly, s tay w ith t his
mode f or t his i tem.
EXPOSURE : A djusts e xposure s eHngs.
B RIGHTNESS : A djusts i mage b rightness. ( 0~ 2 0)
S HUTTER : A uto / M anual S huWer c an b e s electable
-­‐ A UTO : S huWer c an b e s electable a utomaXcally.
-­‐ F LICKER(Flicker L ess) : S elects t his w hen p icture fl ickering. T he p icture
fl ickering c an b e c aused b y a c lash w ith t he f requency o f t he
i nstalled l ighXng.
-­‐ M anual : C ontrols t he s huWer s peed m anually f rom 1 /30 ~ 1/30000
S ENS-­‐UP : S ets t he d esired m ulXple o f t he d igital e xposure l ength.
( OFF/x2 ~ x 32)
A GC(Auto G ain C ontrol): A djusts t he A GC l evel. ( 0~10)
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
Accessories
3 Mounting screws
1 Mounting bracket
( through U TC)
• S HUTTER • S ENS-­‐UP • A GC
• H LC
• E XTERN
• A UTO
• M AIN O UTPUT • A NALOG O UT
• H IGH
• G AMMA • M IRROR
• P RIVACY
• D EFOG
• F REQ • C OM.
• C OLOR B AR • L ANGUAGE • C AMERA T ITLE
• F LIP
• I MAGE R ANGE
• R ESET
