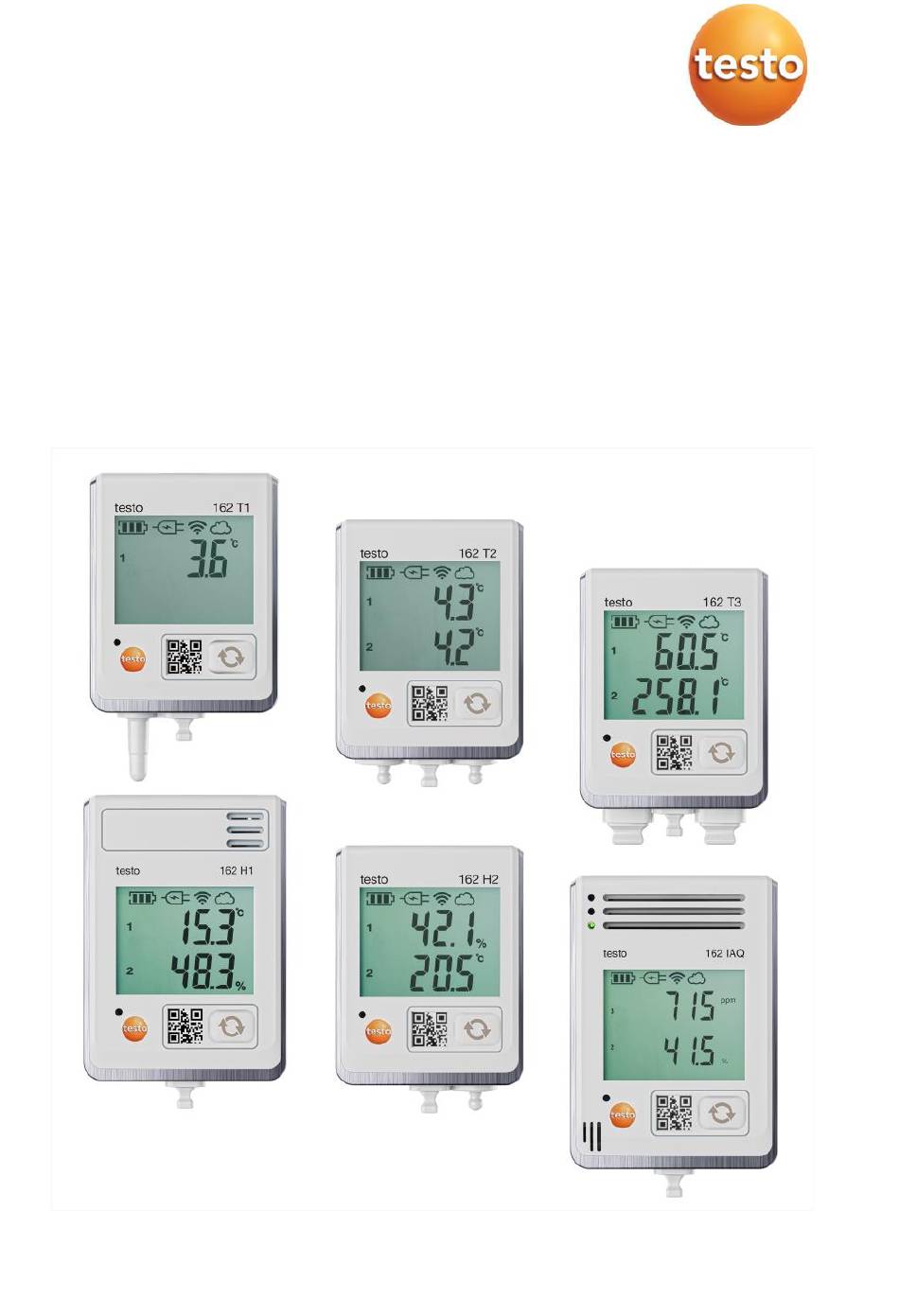

- Page 1 162 Online data loggers 0572 1621 – testo 162 T1 0572 1622 – testo 162 T2 0572 1623 – testo 162 T3 0572 1624 – testo 162 H1 0572 1625 – testo 162 H2 0572 1626 – testo 162 IAQ...
-
Page 3: Table Of Contents
Intended use ..................5 Product description ................6 System overview ..................6 testo Account..................7 testo 162 T1 / T2 / T3 / H2 ..............7 testo 162 H1 / testo 162 IAQ ..............8 Display symbols ..................9 Wall brackets ..................10 First steps ................... -
Page 5: About This Document
Do not store the product together with solvents. • Do not use any desiccants. • Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. - Page 6 2 Safety and disposal Batteries • Improper use of batteries may cause the batteries to be destroyed, or lead to injury due to current surges, fire or escaping chemicals. • Only use the batteries supplied in accordance with the instructions in the instruction manual.
-
Page 7: Disposal
Testo for disposal. WEEE Reg. No. DE 75334352 3 Intended use The testo 162 online data loggers are used for storing and reading out individual readings and series of measurements. The testo 162 online data loggers record measurement values (temperature and... -
Page 8: Product Description
UV can also be measured. The testo 160 online data logger system consists of the hardware components (testo 160, testo 162, testo 164) as well as the testo Saveris Cloud and testo Smart App. The testo Saveris Cloud is the central data platform. Measurement values can be viewed and analyzed there. -
Page 9: Testo Account
162 T1 / T2 / T3 / H2 Temperature measurements can be carried out with the testo 162 T1 / T2 / T3 online data loggers. The testo 162 T2 and testo 162 T3 data loggers also each have two connections for external NTC or PD temperature probes. -
Page 10: Testo 162 H1 / Testo 162 Iaq
162 H1 / testo 162 IAQ Temperature and humidity measurements can be carried out with the testo 162 H1 online data logger. The testo 162 IAQ online data logger can be used to measure temperature, humidity, carbon dioxide concentration and atmospheric pressure. -
Page 11: Display Symbols
4 Product description Display symbols Symbol Description Battery capacity 75% … 100% Battery capacity 50% … 74% Battery capacity 25% … 49% Battery capacity 5% … 24%, Symbol flashes: Battery capacity < 5% External power supply (via USB socket) WLAN signal strength 100% WLAN signal strength 75% WLAN signal strength 50% WLAN signal strength 25%... -
Page 12: Wall Brackets
(left / right) a circle using a screwdriver and slide the cable holder downwards. Can be used for: testo 162 T1 (0572 1621), testo 162 T2 (0572 1622), testo 162 T3 (0572 1623) and testo 162 H2 (0572 1625) - Page 13 4 Magnetic plate (can be ordered as an option, order number: 0554 2001) Can be used for: testo 162 H1 (0572 1624) and testo 162 IAQ (0572 1626) Insert the unlocking tool into the unlocking opening.. Pull the data logger upwards out of the wall bracket.
-
Page 14: First Steps
5 First steps 5 First steps Creating a testo Account If you do not yet have a testo account, register at: https://www.testo.com/login Registration is also possible via the testo Smart App. The testo Smart App is available for iOS devices in the AppStore or for Android devices in the Play Store. - Page 15 The use of the mains adapter included in the scope of delivery is therefore recommended. The testo 162 online data loggers can also be supplied with power via the USB interface instead of batteries. However, the online data loggers do not have a charging function, i.e.
-
Page 16: Integrating Data Loggers Into Testo Account
• Commissioning via testo Smart App (via WLAN hotspot) • Commissioning via desktop computer and testo Saveris Cloud (via USB cable) • Offline commissioning via PDF (via USB cable) In networks with WPA2 Enterprise encryption, commissioning via the testo Smart App is not possible. -
Page 17: Commissioning Via Testo Saveris Cloud (Via Usb Cable)
You will find the Account ID in the testo Account Information. The testo 160 online data loggers can be configured for up to three WLAN networks. Network name (SSID), password and security settings can be stored for each profile. -
Page 18: License
Configuration and operation of online- data loggers The testo 160, testo 162 and testo 164 online data loggers can only be used and operated in conjunction with the testo Saveris Cloud. Information on operating the data loggers (configuration, limit values, alarms,... -
Page 19: Maintaining The Product
Only use new branded batteries. If a partially exhausted battery is inserted, the battery capacity will not be calculated correctly. For testo 162 T1 / T2 / T3 / H2: Remove the battery cover by opening the screws on the back of the housing. -
Page 20: Technical Data
3% RH. After 48 hours at 50% RH ± 10 % and +20 °C ± 5 °C, the sensor regenerates by itself. online data testo 162 T1 testo 162 T2 testo 162 T3 loggers... - Page 21 7 Technical data online data testo 162 H1 testo 162 H2 testo 162 IAQ loggers ±2.0 %RH ±2.0 %RH Accuracy (0 … 90 %RH @ (20 … 80 %RH @ 25 °C) 25 °C) ±1 %RH hysteresis ±3.0 %RH (@ 25 °C &...
- Page 22 7 Technical data General data online data testo 162 T1 testo 162 T2 testo 162 T3 loggers Order number 0572 1621 0572 1622 0572 1623 Operating -30°C…+50°C temperature Without batteries: -40°C … +70°C Storage With supplied batteries: +10°C … +50°C temperature With Energizer Li-Ion batteries: -40°C …...
- Page 23 7 Technical data online data testo 162 H1 testo 162 H2 testo 162 IAQ loggers Order number 0572 1624 0572 1625 0572 1626 0°C…+50°C Operating -30°C…+50°C temperature Storage -40°C…+70°C -20°C…+50°C temperature Protection class IP30 IP54 IP20 Measuring and 1 min to 24 h flexible Mains operation: 1 min …...
- Page 24 PSK; WPA Personal, WPA2 (AES), WPA (TKIP), WEP Technical data for a secure wireless LAN Ports The testo 160 online data loggers use the MQTT protocol, which communicates via port TCP 1883 and 8883. These UDP port approvals are also required: •...
-
Page 25: Tips And Assistance
• Can the online data logger also be used in networks with WPA2 Enterprise encryption? testo 162 data loggers can be used in networks with the following WPA2 Enterprise encryption methods. WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP- TTLS-PSK, EAP-PEAP0-TLS, EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK,... - Page 26 The CO sensor is a precision optical measuring device. Vibrations and shocks may have changed the factory calibration. Recalibration can be carried out by Testo Industrial Services (TIS) or other certified service providers. • The calibration of the humidity sensor has failed. What can I do? When calibrating humidity sensors, ensure sufficiently long adjustment times and sufficient air circulation.
- Page 27 8 Tips and assistance BEGIN CERTIFICATE-----”. If you cannot see this string, the IT department or the user must explicitly export the certificate from the Radius server using BASE64, or convert it using openssl. There must be one certificate only, not a bundle, inside the file.
- Page 28 The servers will be monitored and should be accessible again within a few hours. 2. If the online data logger has not yet been connected to the Testo Cloud: The TCP ports (1883 or 8883) of the access point (WLAN router) are not open.
- Page 29 Alternatively: Initiate data transmission manually by pressing the control key on the online data logger. 2. The Testo Cloud server was not able to process the request for data storage. The servers will be monitored and should be accessible again within a few hours.
-
Page 30: Signals Of Status Led
8 Tips and assistance Signals of status LED The following table provides an overview of the meaning of the various status LED signals of the testo 162 online data logger. Signal Description LED does not flash Sleep mode LED flashes green at one-second... - Page 31 8 Tips and assistance Press the key > 1 s - Not configured data logger: start configurationn mode - Configured data logger: start measurement and communication mode Press the key > 3 s Start recording of log file, to export this via USB cable.
- Page 32 Testo SE & Co. KGaA Celsiusstraße 2 79822 Titisee-Neustadt Germany Telefon: +49 7653 681-0 E-Mail: info@testo.de Internet: www.testo.com 0970 1621 en 02 – 04.2025...
