MadgeTech Temp101 Product Information Card

Product Quick Reference Card
Device Maintenance
Battery Replacement
Materials: Small Phillips Head Screwdriver and LTC-7PN battery
Temp101 and Temp110:
- Puncture the center of the back label with the screw driver
and unscrew the enclosure.
- Remove the battery by pulling it perpendicular to the board.
- Insert the new battery into the terminals and verify it is secure.
- Screw the enclosure back together securely.
Temp100 and TempRetriever:
- Puncture the center of the back label with the screw driver
and unscrew the enclosure.
- Use a small non-metallic device to push the coin-cell battery
out of its holder.
- Hold down the pushbutton in the middle of the circuit board
and insert the new battery into the holder.
- Release the pushbutton and watch to verify that the LED's
blink. (If they do not, then you may have inserted the battery
upside down. Remove the battery and try again.)
- Replace the circuit board in the enclosure.
- Screw the enclosure back together securely.
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT
SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE, DISASSEMBLE,
CRUSH, PENETRATE OR INCINERATE. BATTERY MAY LEAK OR
EXPLODE IF HEATED ABOVE 80°C (176°F).
Recalibration
Standard calibration is one point at 25°C for all 4 devices.
Pricing:
Recalibration traceable to NIST $60.00
Recalibration $40.00
Additional:
As Found Data $15.00 per parameter/channel
Verification Point $15.00 per point
To send the devices back, visit www.madgetech.com, select
Services then RMA Process.
Part Number Temp100 Temp101
Sensor Internal semiconductor
Range –40 to +80°C
Resolution 0.1°C
Accuracy +0.5°C (0 to +50°C)
Memory 32,767 32,767
Sample Rate 2 seconds up to 2 seconds up to
12 hours 12 hours
LED Indicator Red & Green Red
Pushbutton Start Yes No
Alarm Yes Yes
Req. Interface Package IFC110 or IFC200
Baud Rate 2,400 2,400
Battery Life 1 year 1 year
Operating Environment –40 to +80°C, 0 to 95%RH non–condensing
Material ABS plastic
Dimensions 1.4" x 2.2" x 0.6" 1.4" x 2.2" x 0.6"
(36mm x 56mm x (36mm x 56mm x (44mm x 59mm x
16mm) 16mm)
Approvals CE
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
PO Box 50 Warner, NH 03278
l
Phone 603.456.2011 Fax 603.456.2012
l
www.madgetech.com info@madgetech.com
l
Product Information Card
Temp110 TempRetriever
32,767 16,383
2 seconds up to 5 seconds up to
12 hours 30 minutes
Red Red & Green
No Yes
No Yes
57,600 38,400
10 years 1 year

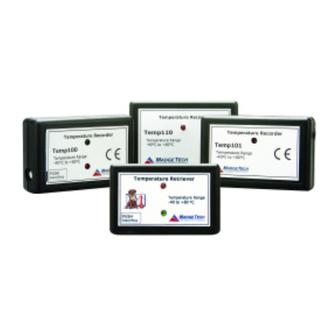

Temp100
Miniature Temperature Recorder with PushButton Start/Stop
1.7" x 2.3" x 0.8" 1.4" x 2.2" x 0.6"
Temp101
(36mm x 56mm x
Miniature Temperature Recorder
21mm) 16mm)
Temp110
Miniature Temperature Recorder with 10 Year Battery Life
TempRetriever
Miniature Temperature Recorder with PushButton Start/Stop
REV F 2009.04.30
Temp100, Temp101, Temp110 and
TempRetriever
