MadgeTech Temp1000S Product Information Card

Description Temp1000S
Integral 1" probe
Temperature Sensor
100Ω Platinum RTD
Temperature Range
Temperature Resolution
Calibrated Accuracy
Memory
Sample Rate
Required Interface Package
Baud Rate
1 year
Typical Battery Life
(15 minute reading rate at 25 °C)
3.6V lithium battery included
Battery Type
*Must be sent to MadgeTech for
battery replacement
Operating Environment -40 °C to +150 °C, 0 to 100%RH, 60 PSIG
Material 303 Stainless Steel
Body: 4.8" x 1.0" dia.
(122mm x 26mm x dia.)
Dimensions
Probe: 1.0" x 3/16" dia.
(26mm x 5mm dia.)
Weight 8 oz (225 g)
Approvals
** The minimum bending radius of the probe is 2", bending only once.
Avoid bending the probe anywhere along the first 2.5" from the tip.
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 150 °C (302 °F).
1.800.561.8187
Temp1000FP
Integral 10.8" flexible
probe** 100Ω Platinum RTD
–40 °C to +150 °C
0.05 °C
+0.5 °C
32,767
2 seconds up to 12 hours
IFC110 or IFC200
2,400
1 year typical
(1 minute reading rate @ 25 °C)
3.6V high-temperature
lithium battery included
*Must be sent to MadgeTech for
battery replacement
Body: 303 Stainless Steel
Probe: 304 Stainless Steel
Body: 5.7" x 1.25" dia.
(145mm x 32mm x dia.)
Probe: 10.8" x 1/8" dia.
(275mm x 4mm dia.)
11.3 oz (320 g)
CE
www.
Product Information Card
Temp1000S

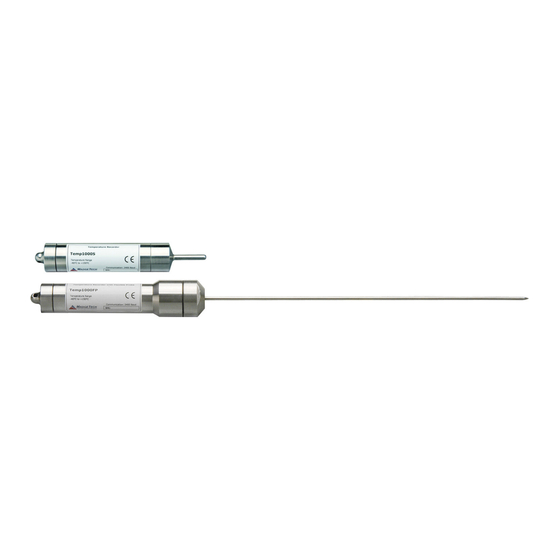

Rugged High Temperature Data Logger with 1" Rigid Probe
Temp1000FP
Rugged Temperature Data Logger with 10.8" Flexible Probe
