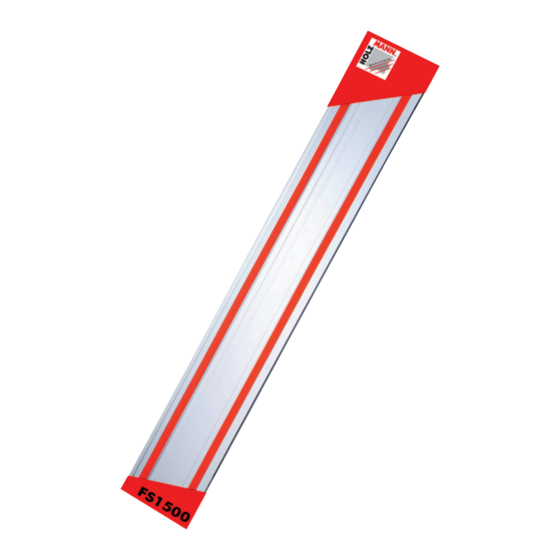

Guide rails

Advertisement

Quick Links

DE
EN

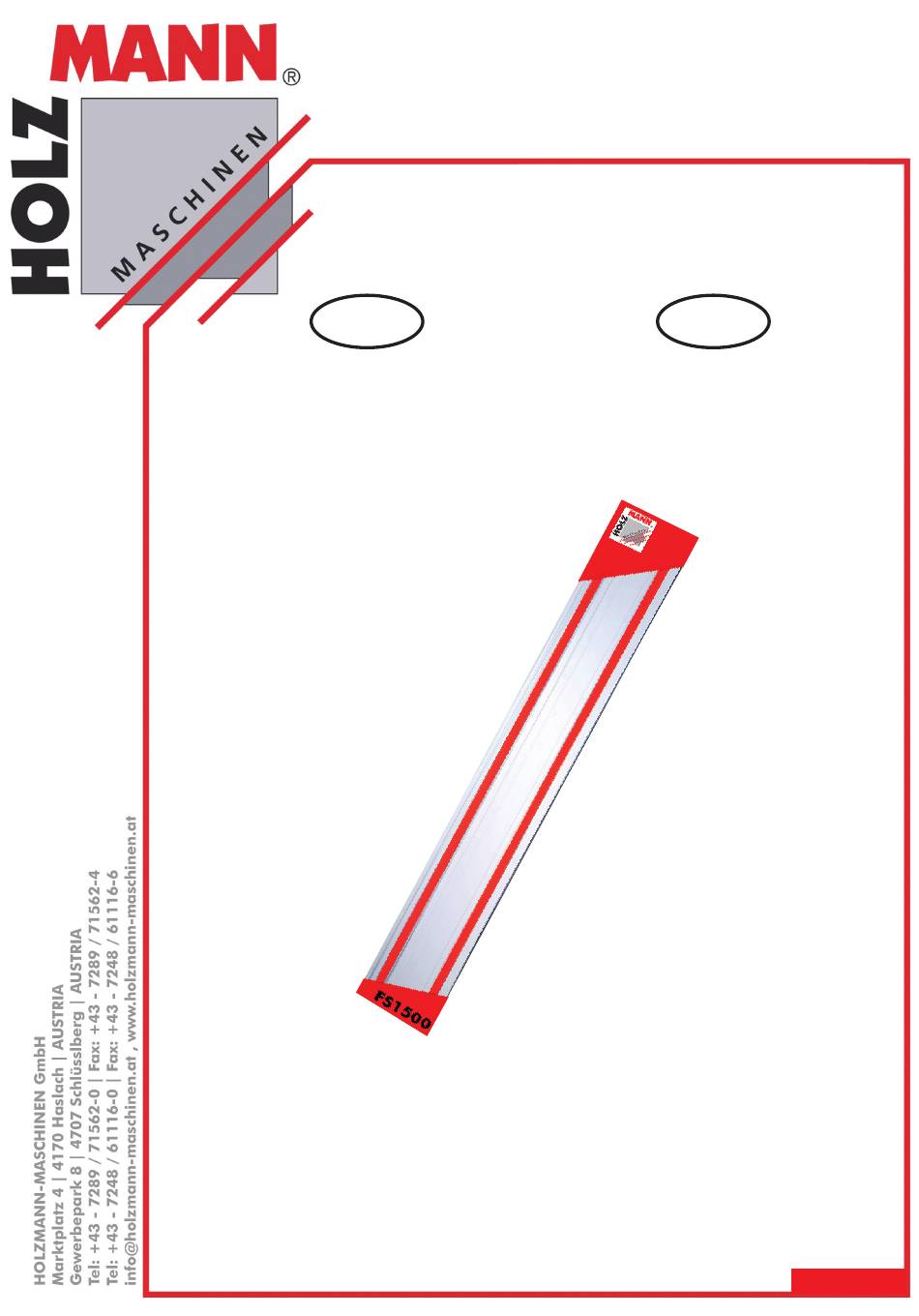

Bedienungsanleitung
manual to connecting
zum Verbinden von
guide rails
Führungsschienen
FS 1500
Seite 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS 1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOLZMANN MASCHINEN FS 1500

  • Page 1 Bedienungsanleitung manual to connecting zum Verbinden von guide rails Führungsschienen FS 1500 Seite 1...
  • Page 2 Führungsschiene Track optional Verbindungsstange (lang) Connecting rod (long) optional Verbindungsstange (kurz) Connecting rod (short) optional optional optional Inbusschlüssel Hex wrench optional Schritt 1 StEp 1 Lockern Sie die Schrauben der langen Verbin- Unscrew the 4 screws of the long connecting rod dungsstange mit dem Inbusschlüssel, bis diese with the hex wrench until the screw is lower than leicht überstehen.
  • Page 3 Schritt 2 StEp 2 Legen Sie die kurze Verbindungsstange auf die Put the short connecting rod onto the long con- lange Verbindungsstange. Das Loch muss auf necting rod. And the hole should be directed at dem Fixpunkt liegen. the fixed point. Loch/hole Fixpunkt/ fixed point...
  • Page 4 Schritt 4 StEp 4 Stecken Sie die 2 Führungsschienen mithilfe der Connect the two guide rails with the connecting Verbindungsstäbe aneinander und ziehen Sie alle rods and tighten all the screws. Schrauben an. Verbindungspunkt/ connect point Verbindungsstab/ connecting rod Seite 4 hOLZMANN Maschinen Austria - www.holzmann-maschinen.at Bedienungsanleitung zum Verbinden von Führungsschienen (FS1500)
