Hozelock Cyprio 1380 Quick Start Manual

1380
The Hozelock Cyprio air pump is designed
for use outdoors. It must not be submersed
in the pond. All electrical components are
safely housed inside the product.
ATTENTION
AUTOMATIC CUTOUT. To help ensure
your pump's long life and to prevent
damage, it is fitted with automatic
thermal overload protection. This
switches off the pump if it overheats. If
this occurs, switch off the power at the
mains supply to the pump. Check for the
cause. Usually it will be debris blocking
the inlet/outlet of the pump or airstone.
Remove the obstruction and wait 15
minutes for the pump to cool down and
automatically reset. Then switch on the
pump again.
NOTE: YOU MUST SWITCH OFF THE
MAINS SUPPLY BEFORE THE PUMP WILL
RESET.
IMPORTANT
1. WARNING: ALWAYS UNPLUG OR
DISCONNECT ALL APPLIANCES IN THE
POND FROM THE ELECTRICITY SUPPLY
BEFORE PUTTING YOUR HANDS IN THE
WATER WHILST EQUIPMENT IS BEING
INSTALLED, REPAIRED, MAINTAINED OR
HANDLED.
2. Do not use the supply cable to lift the
pump as this may cause damage.
3. If the supply cable is damaged, it must
be replaced by a qualified person to
avoid a hazzard, or do not operate the
pump.
4. Check that the voltage marked on the
pump corresponds to the mains supply.
5. A 10mA or 30mA Residual Current
Device (RCD) MUST be fitted to the
mains supply.
6. Do not operate this pump without the
inlet filter and cover attached. Using
the pump without AN INLET FILTER may
invalidate your warranty.
From 1st January 2005 installing this
product in the garden is classed as
'notifiable' in the revised Building
Regulations for England and Wales. The
Regulations now require you to tell your
local authority building control
department that you intend to install this
product before installation. Your local
authority will let you know how you can
get your installation approved.
WARNING: SAFETY AND
ELECTRICAL CONNECTIONS
1. The pump is supplied with 10m of 3-core
electric cable, which is permanently
connected and sealed to the motor. The
supply cable cannot be replaced. If the
cable is damaged, the pump should be
Air Pump
discarded. This product is designed to be
permanently wired to the mains supply
in a dry weatherproof enclosure through
a Double-Pole Switched Fused Spur -
(Disconnector) to BS 3676 - Fitted with a
3 or 5 Amp fuse. The installation must
conform to the national and local wiring
regulations, which could include the use
of a plastic or metal conduit to protect
the cable.
2. A 10MA OR 30MA RESIDUAL CURRENT
DEVICE (RCD) MUST BE FITTED TO THE
MAINS SUPPLY.
3. WARNING: THIS APPLIANCE MUST BE
EARTHED AND IT IS ESSENTIAL THAT THE
CONNECTIONS ARE MADE USING THE
FOLLOWING CODE;

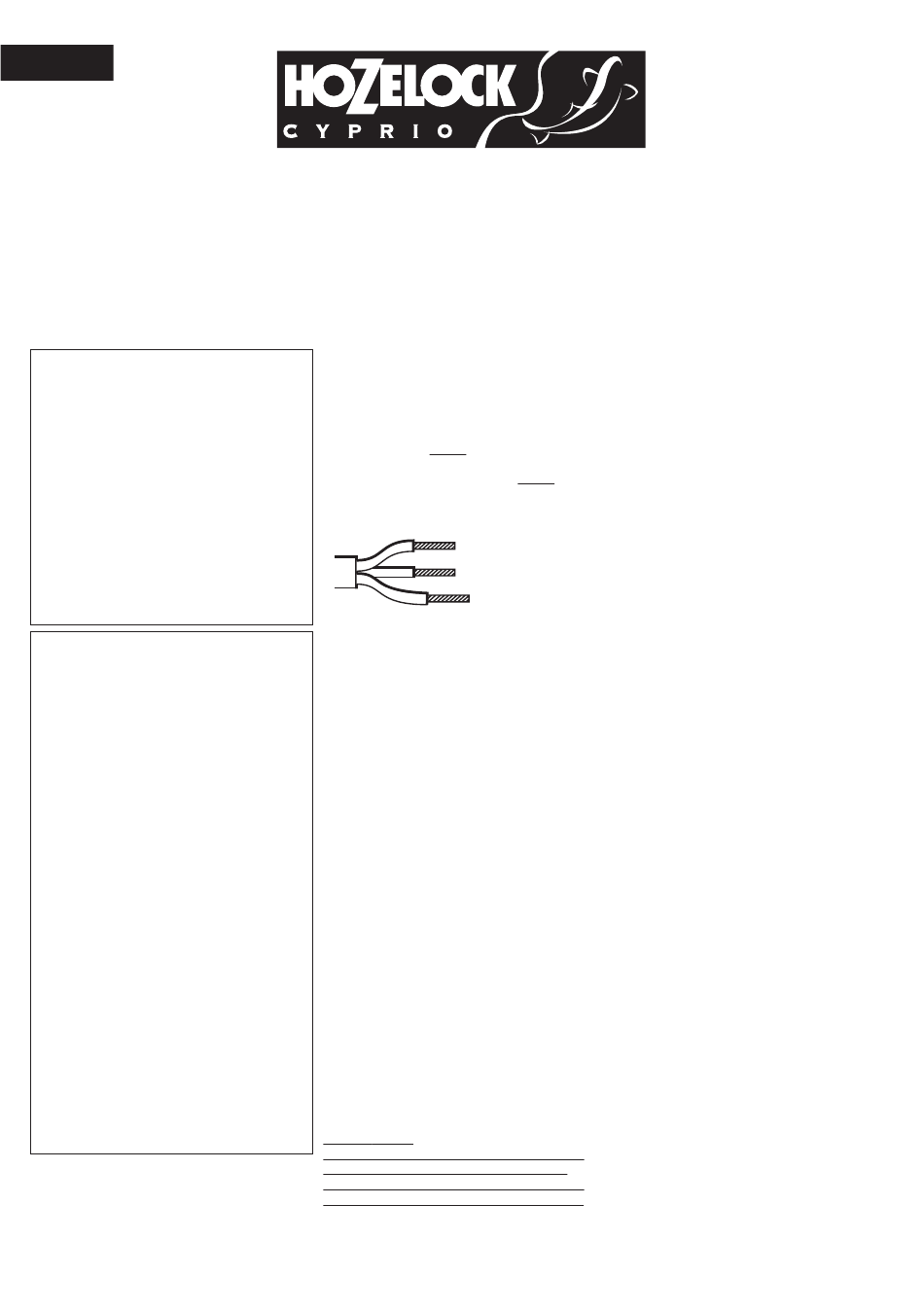

The BROWN lead should be connected to
the LIVE terminal which may be marked
with an 'L' or coloured brown or red.
The BLUE lead should be connected to
the NEUTRAL terminal which may be
marked with an 'N' or coloured blue or
black.
The GREEN/YELLOW lead should be
connected to the EARTH terminal which
may be marked with an 'E' or coloured
green or green/yellow.
4. If an extension cable is required, this
should be connected to the end of the
pump cable using a weatherproof cable
connector. The joint must be positioned
in a suitable weatherproof housing. The
extension cable should be of 3 core
0.75mm Polychloroprene rubber
2
insulated cable (ref: HO5 RN-F) and
permanently wired to the mains supply
with a 3 or 5 Amp fuse.
5. The pump cable (and extension cable)
should be adequately protected against
damage especially where contact with
gardening equipment (lawn mowers,
forks etc..) children and domestic animals
may occur.
6. Always disconnect the mains power
supply whilst the equipment is being
installed, repaired, maintained or
handled. Consult a qualified electrician
or local authority if in any doubt about
wiring to the mains supply.

PUMP INSTALLATION

IMPORTANT:
MAXIMUM DEPTH OF AIR STONE IN
POND = 3M. BY PLACING THE AIR
STONE DEEPER THAN 3M YOU WILL
FOREGO THE PRODUCT WARRANTY.
1. Place the unit near the pond, on a solid
level surface (See Fig 7). Route the cable
back to the mains supply. Ensure that
you allow for enough cable for
positioning the product in the desired
location near the pond.
2. Push the rubber outlet pipe over the
outlet of the air pump and fasten in
place using the metal clip provided to
hold it firmly in place (See Fig 1).
3. Insert the chrome plated iron manifold
into the end of the rubber tube and
fasten securely in place with a metal clip
provided (See Fig 2).
4. Push the 4mm air tube onto the end of
one of the metal manifold outlets and
ensure it is securely in place (See Fig 3).
Open the manifold outlet valve (See Fig
4).
5. To fit the non-return valve to the air
pipe, cut the pipe and push the ends
onto the inlet/outlet of the valve. This
Brown - Live
valve only works in one direction, which
is indicated by the mark 'OUT' (See Fig
Blue - Neutral
5). This valve ensures that water is not
Green/Yellow -
sucked back into the pump if the pump
Earth
is installed below the pond's water level
when the power supply is turned off.
6. Cut the air tube to the desired length.
This will be determined by:
a) The location of your pump around the
pond
b) The depth at which you want to position
your air stones in the pond (MAXIMUM
DEPTH = 3m).
7. Attach the other end of the air tube to
the 100mm sintered air stone (See Fig 6).
8. Place the air stones in the pond or filter.
Locate the air stone(s) in a position to
maximise pond aeration. If using
multiple air stones ideally position these
in different parts of the pond.
9. Attach additional air tubes, valves and air
stones if desired following the same
installation process described in steps 3-6.
10.Ensure all the manifold outlet valves that
don't have air tube attached are closed.
11.Manifold outlet valves can be adjusted
until you achieve the desired air output.
IMPORTANT:
If necessary partially open some of the
unused manifold outlet valves to relieve
backpressure on the pump and to reduce
pump noise levels. It should be noted that
the greater the number of air stones used
the less the backpressure on the pump
which can increase the usable life of the
pump's diaphragm (membrane).
Pump Location
The pump should be positioned on a solid
flat surface so it doesn't vibrate when in use
(See Fig 7).
If you do not wish to operate the air pump
for 12 months of the year, store the air
pump safely in a dry environment and
where temperatures will be above freezing.
MAINTENANCE
The Hozelock Cyprio air pump has been
designed to allow quick and easy
maintenance. The air pump contains rubber
parts, which can wear over time. The
