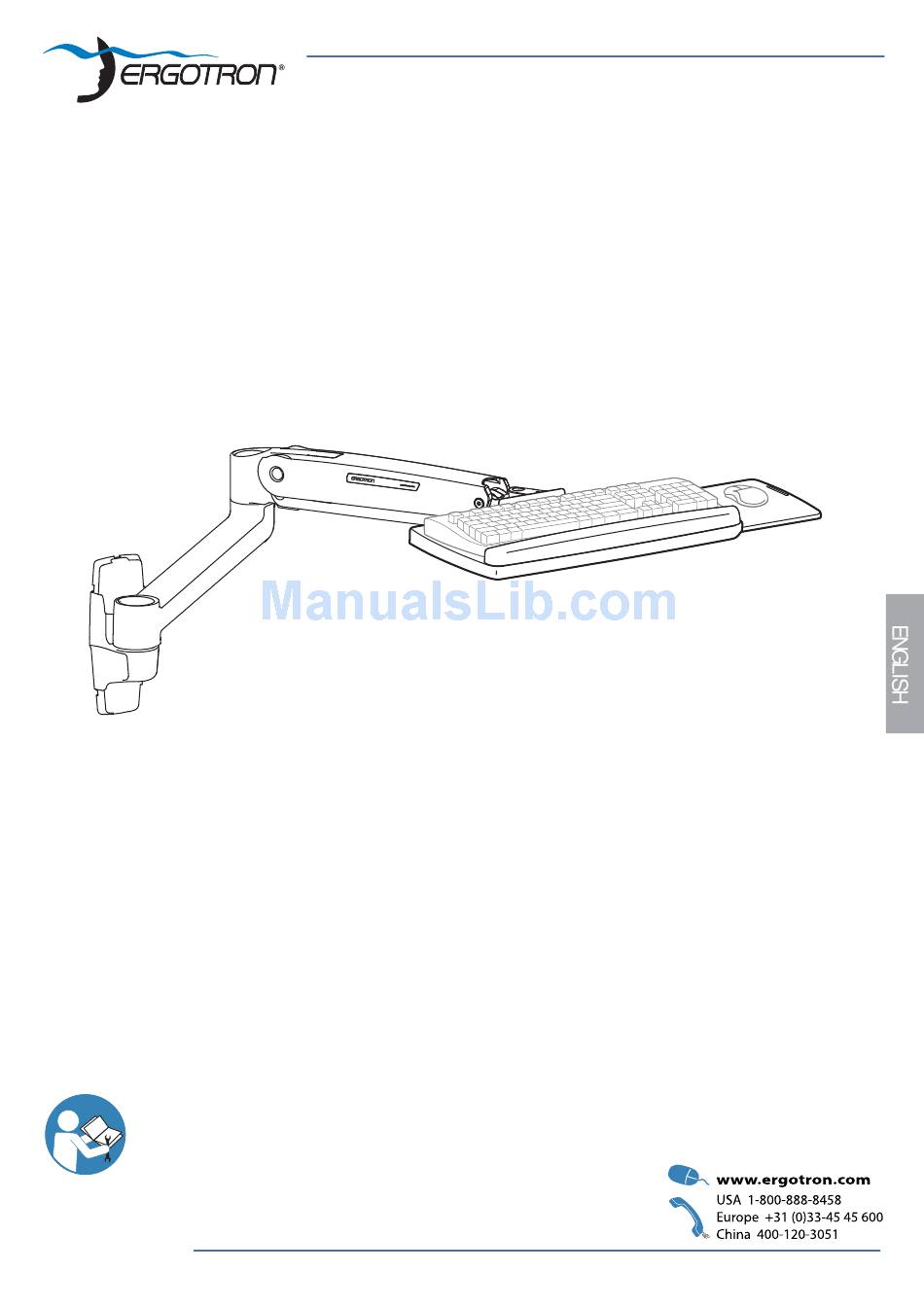

ASSEMBLY INSTRUCTIONS
LX Sit-Stand Wall Mount Keyboard Arm
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-45-276-W-02 rev. J • 08/15
1 of 16
