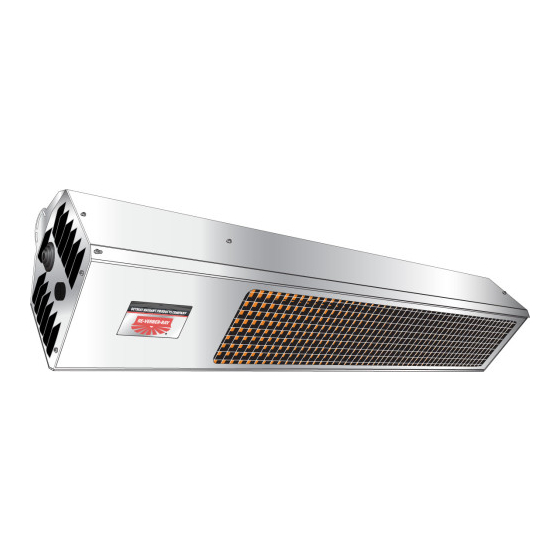

Detroit Radiant Products Company
DSCS-9/10 Series
This heater must be installed and serviced by a Gas Safe Registered Gas Engineer
only! Conversion of the heater for use with other gases must be carried out by a Gas
Safe Registered Gas Engineer. Read these instructions carefully before attempting to
install, operate, or service the heater.
Storage of petrol and other flammable vapors and liquids in the vicinity of this or any
other appliance may result in fire or explosion. Do not store or use petrol or other
flammable vapors and liquids in the vicinity of this or any other appliance. Maintain
clearances to combustibles at all times.
This heater is not approved for use in indoor residential applications and must
never be install indoor in the home. This heater may only be used in outdoor residential
applications or indoor/outdoor commercial or industrial applications. Installation in
residential indoor spaces may result in property damage, asphyxiation, serious injury,
or death.
Failure to comply with these warnings and instructions, and those on the heater, could
result in personal injury or death.
For Your Safety
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch.
INSTALLER: Present this manual to the end user.
Keep these instructions in a clean and dry place for future reference.
Model#: ___________________ Serial #: _________________________
Installation, Operation,
Maintenance, and Parts
WARNING
!
WARNING
!
• Call your gas supplier. Do not use any phone in your building.
• Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
(located on rating label)
Manual
LIODSCSCE-Rev. 15617
Print: LIODSCSCE-5c-04/19_r1-11/19 (CDS)
0063
Advertisement
Table of Contents
Related Manuals for Detroit Radiant Products DSCS-9 Series
Summary of Contents for Detroit Radiant Products DSCS-9 Series
- Page 1 Detroit Radiant Products Company DSCS-9/10 Series Manual 0063 Installation, Operation, Maintenance, and Parts WARNING WARNING This heater must be installed and serviced by a Gas Safe Registered Gas Engineer only! Conversion of the heater for use with other gases must be carried out by a Gas Safe Registered Gas Engineer.
-
Page 2: Table Of Contents
DSCS-9/10 Series Contents 1.0 Introduction ............. . 3 Overview . -
Page 3: Introduction
DSCS-9/10 Series Introduction • • Overview Available Models and Technical Specifications Introduction Overview The intent of this manual is to provide information regarding general safety, installation, operation, and maintenance of this tube heater. You must read and understand all instructions and safety warnings before installing or servicing the tube heater. -
Page 4: Safety
DSCS-9/10 Series Safety • Safety Symbols • Applications Safety WARNING Improper installation, adjustment, alteration, service, or maintenance can cause property damage, serious injury, or death. Read and understand the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. -
Page 5: Clearances To Combustibles
Safety DSCS-9/10 Series • Clearances to Combustibles Clearances to Combustibles WARNING Placement of explosive objects, flammable objects, liquids, and vapors close to the heater may result in explosion, fire, property damage, serious injury, or death. Do not store or use explosive objects, liquids, and vapor in the vicinity of the heater. - Page 6 DSCS-9/10 Series Safety • Clearance to Combustibles When installing the infrared heater system, the minimum clearances to combustibles must be maintained. These distances are shown in Chart 2.1 and on the heater. If you are unsure of the potential hazards, consult your local fire marshal, fire insurance carrier, or other qualified authorities on the installation of gas fired infrared heaters for approval of the proposed installation.
-
Page 7: Standards, Certifications, And Government Regulations
DSCS-9/10 Series Safety • Standards, Certifications, and Government Regulations CAUTION Fire sprinkler systems containing propylene glycol, antifreeze, or other potentially flammable substances shall not be used in conjunction with this heater without careful consideration for and avoidance of inadvertent discharge hazards. Always observe applicable state and local codes. Standards, Certifications, and Governmental Regulations Infrared heaters are designed and certified for use in industrial and commercial buildings such as outdoor restaurant patios, warehouses, manufacturing plants, aircraft hangars, and vehicle maintenance shops. - Page 8 DSCS-9/10 Series Safety • Standards, Certifications, and Government Regulations Electrical: Under no circumstances is the electrical supply line to provide any assistance in the suspension of the heater. Notwithstanding their limited scope, this appliance must be installed in accordance with the relevant provisions of the following regulations: United Kingdom Gas Safety (Installation and Use) Regulations 1984 and BS 6896:2005.
-
Page 9: Safety Labels And Their Locations
DSCS-9/10 Series Safety • Safety Labels and Their Locations Safety Labels and Their Locations It is important to provide warnings to alert individuals to potential hazards and safety actions. Safety warning labels must be maintained on the infrared heater. Illustrations of the safety labels and their locations are pictured below. -
Page 10: Installation
DSCS-9/10 Series Installation • Design Installation Design Re-Verber-Ray Designer Series patio heaters are designed specifically for comfort heating in an outdoor ® environment. Examples of suitable applications include patios, porches, outdoor shopping areas, and outdoor pathways. When used properly, the heater will increase the comfort level of its application. However, the effectiveness of the heating will depend on many variables such as air temperature, wind velocity, wind barriers, mounting heights, and distance between heaters. - Page 11 DSCS-9/10 Series Installation • Design To ensure a safe, properly designed heating system, a layout should be developed for the correct placement of the infrared heater(s). Aside from safety factors such as clearances to combustibles, consideration should be given to the following: •...
-
Page 12: Heater Mounting
DSCS-9/10 Series Installation • Heater Mounting • Optional Mounting Kit Heater Mounting WARNING Improper suspension of the infrared heater may result in collapse and persons being crushed. Always suspend from a permanent part of the building structure that can support the total force and weight of the heater. -
Page 13: Recommended Mounting Heights
DSCS-9/10 Series Installation • Recommended Mounting Heights Recommended Mounting Heights WARNING Heater must be installed at least 2.5 meters above the finished floor. • Recommended Mounting Heights Chart 3.1 Recommended Approximate Approx. Coverage Gross kW Mounting Height (A) Coverage Area (sq. - Page 14 DSCS-9/10 Series Installation • Heater Mounting Figure 3.3 shows different types of mounting configurations. Depending on the type of mounting used, be sure to: Prepare mounting surface. If necessary, weld blocks to mounting structure, drill holes, etc. Fasten beam clamp, screw hook, or other type of suspension anchor to hanging point. Attach threaded rod and turnbuckle to anchor.
-
Page 15: Gas Supply
DSCS-9/10 Series Installation • Gas Supply Gas Supply The gas supply to the infrared patio heater must be connected and tested in accordance with national, state, provincial, and local codes along with the guidelines in the manual. WARNING Improperly connected gas lines may result in fire, explosion, poisonous fumes, toxic gases, asphyxiation, and death. - Page 16 DSCS-9/10 Series Installation • Gas Supply • Gas Connection Install a ground joint union with a brass seat and a manual shut-off valve adjacent to the unit for emergency shut-off and easy servicing of the controls. A 1/8” NPT plugged tap that is accessible for a test gauge connection is also recommended as illustrated in Figures 3.4 and 3.5.
-
Page 17: Gas Connection
DSCS-9/10 Series Installation • Gas Supply • Gas Connection To connect the gas: Install a sediment trap / drip leg in the supply line at the lowest spot prior to the gas ball valve. The trap length shall be at least three inches long. Ideally, the trap would be installed as close as possible to the shut off. -
Page 18: Leak Testing
DSCS-9/10 Series Installation • Gas Supply • Leak Testing Leak Testing Use a soap solution or equivalent for leak testing. Leak testing solution must be non-corrosive and be rinsed off immediately after the leak test. Never test for leaks with an open flame. Failure to comply could result in personal injury, property damage, or death. -
Page 19: Electrical Requirements
DSCS-9/10 Series Installation • Electrical Requirements Electrical Requirements WARNING This heater must be earthed. Incorrect or improper wiring may result in shock, injury, or death. Do not touch the ignition, flame detection electrodes, or any part of the circuitry while the power is connected to the heater. -
Page 20: Wiring Diagrams
DSCS-9/10 Series Maintenance • Wiring Diagrams Figure 3.5 • Internal Wiring Diagram 230VAC DSI MODULE ELECTRODE GAS VALVE ASSEMBLY Figure 3.6 • Field Wiring Diagram Starting Amp Draw: 0.12A Running Amp Draw: 0.08A 230 VAC OPTIONAL SWITCH OR TIMER SWITCH OR TIMER 230 VAC Field Wiring: Maintain electrical polarity when hooking up multiple heaters. -
Page 21: Flue Requirements
DSCS-9/10 Series Installation • Flue Requirements Flue Requirements WARNING Improper or insufficient flueing may result in explosion, fire, health problems, carbon monoxide poisoning, or death. Vent enclosed spaces and buildings according to relevant applicable codes. This heater may only be used in outdoor residential applications or indoor/ outdoor commercial or industrial applications. -
Page 22: Operation
DSCS-9/10 Series Operation • Sequence of Operation Operation WARNING Improper operation of the heater may result in explosion, fire, shock, and carbon monoxide poisoning. Follow all guidelines and warnings in this manual and relevant applicable codes. Always conduct safety checks before operating the heater. Do not operate the heater in unsafe conditions. -
Page 23: Maintenance
DSCS-9/10 Series Maintenance Maintenance WARNING Always wear clothing that protects the body and use protective glasses when servicing the heater. Electrical shock or explosion may occur when conducting maintenance while the heater is connected to the power source and gas supply. Disconnect power and gas supply to heater before servicing. Burner malfunction may result in explosion or fire. -
Page 24: Service Access Panel Removal
WARNING Detroit Radiant Products Company makes every possible effort to remove sharp edges, however, caution should be taken to avoid contact with potentially sharp edges on the heater housing. Sharp edges may cut, resulting in personal injury. -
Page 25: Converting Gas Type
DSCS-9/10 Series Maintenance • Converting Gas Type Adjusting the Gas Pressure The gas pressure is adjusted using the pressure adjusting screw on the SIT valve. On valve micro 850, the hexagonal screw is rotated clockwise to increase the pressure. See Figure 5.2. Figure 5.2 •... - Page 26 DSCS-9/10 Series Maintenance • Gas Type Conversions Gas Type Conversions Converting a Heater to LPG (I3P) If the heater is already installed, switch OFF the gas and electricity. Remove the heater and place at ground level. Remove the injector and replace with the injector sized for propane. See Chart 5.2. Re-install the heater and connect gas and electrical supply.
-
Page 27: Troubleshooting Guide
DSCS-9/10 Series Maintenance • Troubleshooting Guide • Chart 5.3 Troubleshooting Guide Symptom Possible Cause Corrective Action Burning of gas-air mixture • Heater mounted at incorrect angle. • Mount at a 0˚- 30˚angle from horizontal. inside plenum (flashback). • Excessive drafts. •... -
Page 28: Maintenance Log
DSCS-9/10 Series Maintenance • Maintenance Log Maintenance Log Date Maintenance Performed Replacement Parts Required... - Page 29 DSCS-9/10 Series Maintenance • Notes Notes...
-
Page 30: Parts
DSCS-9/10 Series Parts • Heater Components Parts Figure 6.1 • Heater Components 1143BSPT 1104 1110 1142 1137 1140, 1141, 740B 1158, 1159, 1160 1153 1197 1120 1121 1355 1101 1172 1122 1157 1174 1148 1106 1144 1150 1117 1113 1112 1170 1178 1111... - Page 31 230V Gas Valve Wire Harness (Not Shown) TP-740B 230V SIT 0.840.061 Gas Valve 100-PAC 230V Circuit Board Wire Harness (Not Shown) To order replacement parts call Detroit Radiant Products at: Voice: (586) 756-0950, Fax: (586) 756-2626 or visit our website: store.reverberray.com...
-
Page 32: Limited Warranty
Limited Warranty Two-Year Limited Warranty. Patio Heaters covered in this manual, are warranted by Detroit Radiant Products Company to the original user against defects in workmanship or materials under normal use for two years after date of purchase. Any part...
