DSS Series
Installation Manual

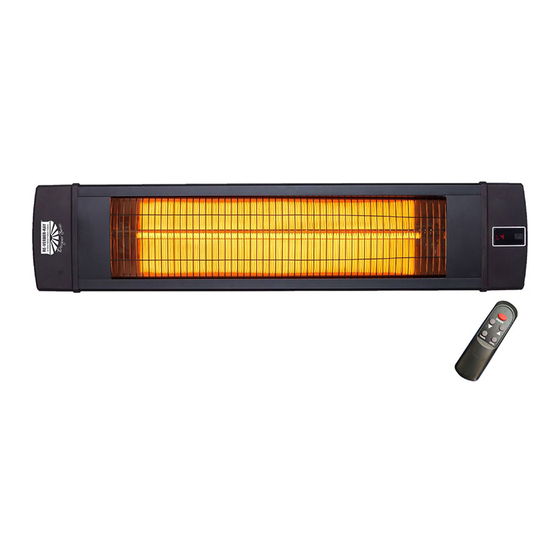

Overhead Medium Wave Electric Infrared Heater
1,500 and 2,500 Watt Units
All persons involved with the installation, operation, and maintenance of the heater system must read
and understand the information in this manual.
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read and understand the installation, operating,
and maintenance instructions thoroughly before installing or servicing this
equipment.
INSTALLER: Present this manual to the end user.
Keep these instructions in a clean and dry place for future reference.
Model#: ______________________ Serial #: _____________________________
!
WARNING
!
(located on rating label)
LIODSS-Rev. 12118
Print: 5c-01/19_r1-03/19 (DRPC)
Replaces: LIODSS-1c-11/18 (DRPC)
Advertisement
Table of Contents
Related Manuals for Detroit Radiant Products DSS-35B1-C25
Summary of Contents for Detroit Radiant Products DSS-35B1-C25
- Page 1 DSS Series Installation Manual Overhead Medium Wave Electric Infrared Heater 1,500 and 2,500 Watt Units All persons involved with the installation, operation, and maintenance of the heater system must read and understand the information in this manual. WARNING Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.
-
Page 2: Table Of Contents
Series Contents 1.0 Safety ..................3 Safety Symbols . -
Page 3: Safety
Safety • Safety Symbols • Applications Series Safety WARNING Improper installation, adjustment, alteration, service, or maintenance can cause property damage, serious injury, or death. Read and understand the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. Only trained, qualified personnel with proper electrical experience may install or service this equipment. -
Page 4: Model Number Designation Chart
Volts Watts Amps Length Width Height Weight 34.5” 7.7” 3.3” DSS-35B1-A15 1,500 5,118 12.5 6.6 lbs (3 kg) (876 mm) (195 mm) (85 mm) 34.5” 7.7” 3.3” DSS-35B1-C25 2,500 8,530 10.87 6.6 lbs (3 kg) (876 mm) (195 mm) (85 mm) -
Page 5: Clearances To Combustibles
Safety • Clearances to Combustibles Series Clearances to Combustibles WARNING Placement of explosive objects, flammable objects, liquids, and vapors close to the heater may result in explosion, fire, property damage, serious injury, or death. Do not store or use explosive objects, liquids, or vapors in the vicinity of the heater. Failure to comply with the published clearances to combustibles could result in personal injury, death, and/or property damage. The outside surfaces of the heater are hot during operation and after operation. - Page 6 Safety • Clearances to Combustibles Series Chart 1.1 • Clearances to Combustibles in Inches (see Figure 1.1) Side Model Mounting Wattage Angle Front Behind Below 0°* All Models 45° * Supplied bracket to be used for 0° mounting only. NOTE: Ensure that building materials with a low heat tolerance (i.e, awnings, fabrics, plastics, sprinklers, insulation, etc.) are protected against degradation.
-
Page 7: Safety Labels And Their Locations
MAX. MOUNTING ANGLE UL 2021 - Edition 6 (revision 2018) 45° 1500 CSA C22.2 46-13 (R2018) DETROIT RADIANT PRODUCTS COMPANY FOR COMMERCIAL, INDUSTRIAL, AND OUTDOOR RESIDENTIAL USE. 21400 HOOVER ROAD - WARREN, MI FOR INDOOR OR OUTDOOR USE. (586) 756-0950 www.drp-co.com... -
Page 8: Standards, Certifications, And Government Regulations
, ANSI/NFPA 70 (latest edition). ® Wiring must conform to the latest edition of National Electrical Code , local ordinances, and any special diagrams from the manufacturer. ® Canada: Refer to Canadian Electrical Code CSA C22.1 Part 1 (latest edition). Detroit Radiant Products Company units comply or are certified by one or more of the following organizations or standards: • Intertek / ETL • CSA... -
Page 9: Installation
Installation • Design Series Installation WARNING Read and understand the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment. Design To ensure a safe, properly designed heating system, a layout should be developed for the correct placement of the infrared heater(s). Aside from safety factors such as clearances to combustibles (see Chart 1.1 on page 6), consideration should also be given to factors such as the environment (e.g., cold/drafty, average, protected), heat coverage (sq. - Page 10 Square Foot DSS-35B1-A15 6 to 8 3 to 9 DSS-35B1-C25 7 to 11 1 to 11 * Clearances to combustibles published in the DSS Series Installation Manual and on safety labels must be maintained at all times. Factory recommended mounting heights are listed as a guideline. If infrared heaters are mounted too low or too high, they may result in discomfort or lack of heat.
-
Page 11: Heater Mounting
Physical Dimensions - Inches (mm) Model No. DSS-35B1-A15 34.5 (876) 7.7 (195) 3.3 (85) 34.5 (876) 7.7 (195) 3.3 (85) DSS-35B1-C25 * This dimension does not include the mounting bracket. The mounting bracket is 4” high in its vertical orientation. -
Page 12: Heater Installation
Installation • Heater Installation • Field Wiring Series Heater Installation The mounting bracket, electrical cord (plug on 120 V models only), and screws required to install this heater are provided with the unit. To install the unit: Determine the area where the heater is to be mounted. The DSS series is to be ceiling-mounted only. -
Page 13: Heater Usage Tips
Installation • Heater Usage Tips Series Heater Usage Tips WARNING Placement of explosive objects, flammable objects, liquids, and vapors close to the heater may result in explosion, fire, property damage, serious injury, or death. Do not store or use explosive objects, liquids, or vapors in the vicinity of the heater. Failure to comply with the published clearances to combustibles could result in personal injury, death, and/or property damage. The outside surfaces of the heater are hot during operation and after operation. -
Page 14: Optional Remote Control Instructions
Installation • Optional Remote Control Instructions • Maintenance Series Optional Remote Control Instructions NOTE: All DSS series heaters and their remote controls share a frequency, so it is possible to control several heaters with a single remote control. Figure 2.4 •... -
Page 15: Troubleshooting Guide
Installation • Troubleshooting Guide Series Troubleshooting Guide Start Process Corrective Question Question Action Turn Heater on from power source. Does the heating Is the heating lamp Replace heating lamp. physically damaged? lamp turn on? Is the heating lamp Rewire lamp as indicated wired as indicated in in this manual. -
Page 16: Limited Warranty
Repair cost is $65.00 and includes return shipping and handling costs. Units can be returned COD via UPS (additional fees for COD service will apply). When sending a heater to Detroit Radiant Products for repair, include a packing list with an explanation of the heater’s symptoms and contact information for a contact who can provide valid credit card or payment information.
