Siemens AC-ADPT Installation Instructions

Installation Instructions

Model AC-ADPT
AC Adapter
INTRODUCTION
INSTALLATION
COMPATIBILITY
SPECIFICATIONS
P/N 315-033992-2
The SIEMENS Model AC-ADPT Adapter, as shown in Figure 1, is used to connect a
notebook or laptop computer to the system power supply.
Black Plug Connects
To External Power Supply
Of Notebook Computer

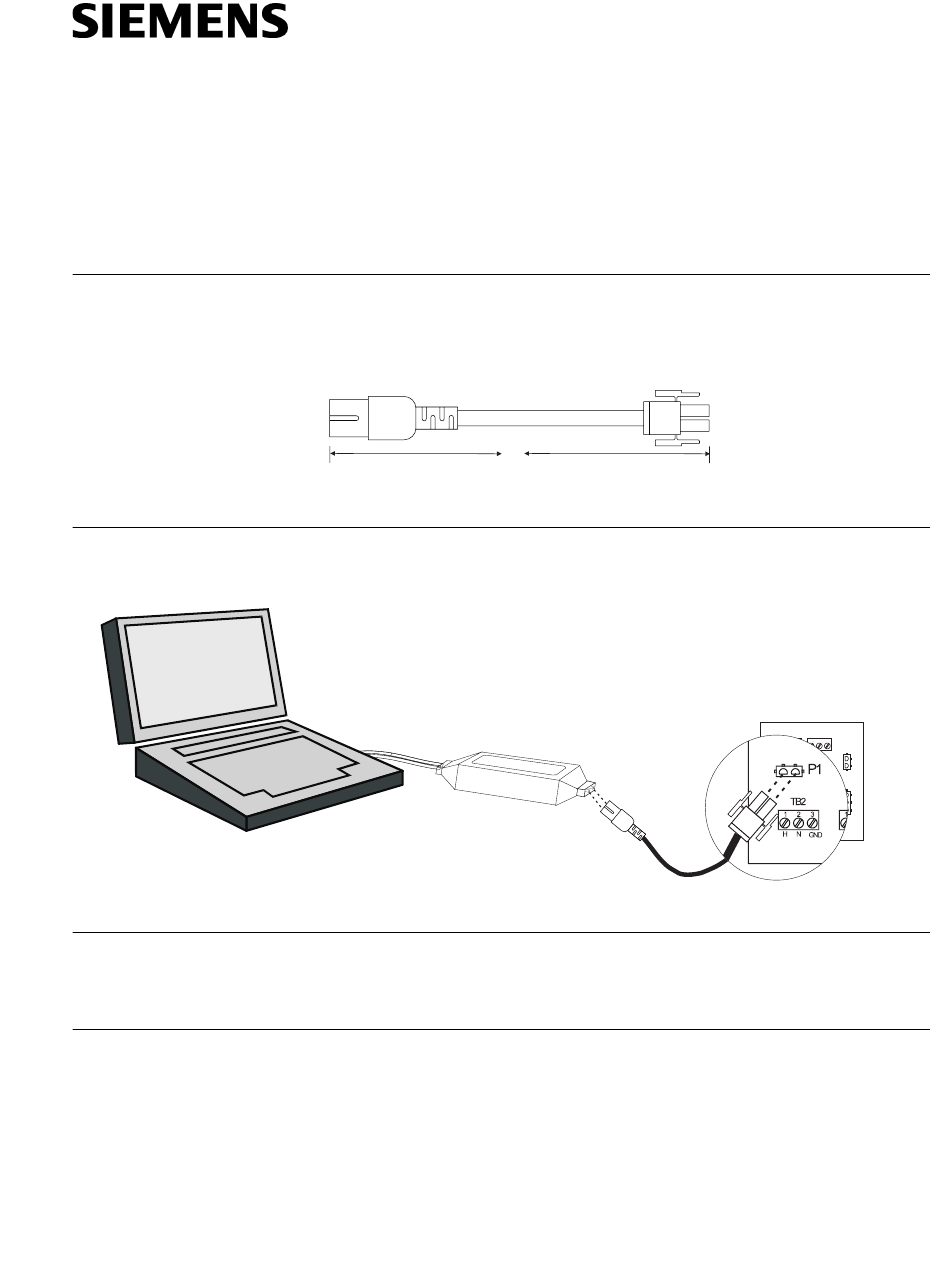

Figure 1
AC-ADPT Adapter Cable
Refer to Figure 2.
1. Insert the white plug into P1 on the PTB Power Termination Board.
2. Insert the black plug into the external power supply/adapter of the notebook
or laptop computer.
3. Turn on power to computer.
Figure 2
Connecting The AC-ADPT Adapter Cable
The AC-ADPT Adapter can only be used to connect a notebook or laptop computer to
the system power supply.
The AC-ADPT is 6 ft. in length.
White Plug
Connects
To PTB, P1
6 ft.
Siemens Building Technologies
PTB
1 2 3 1 2 3
P3
H N GND H N GND
TB3 TB4
P1
P2
TB2 TB1
1 2 3 1 2 3
H N H N GND
GND
Fire Safety
