HANS

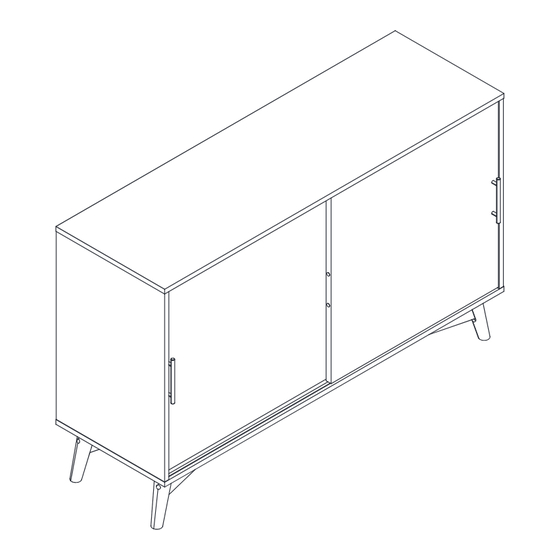

ELECTRIC FIREPLACE/MEDIA CONSOLE
MODEL NO. 064-3179-6
HOMEOWNER'S MANUAL
1-888-670-6684
IMPORTANT: If you have any problems or questions, email or call customer service
before you return this product to the store where it was purchased.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HANS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Canvas HANS

Summary of Contents for Canvas HANS

  • Page 1 HANS ELECTRIC FIREPLACE/MEDIA CONSOLE MODEL NO. 064-3179-6 HOMEOWNER'S MANUAL 1-888-670-6684 IMPORTANT: If you have any problems or questions, email or call customer service before you return this product to the store where it was purchased.
  • Page 2 MADE IN CHINA IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
  • Page 3 Parts List Assembly Operating Instructions Care and Maintenance Troubleshooting Guide Replacement Parts List and Exploded View Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and operating this fireplace. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: DANGER: If the information in this manual is not followed exactly, an electric shock or fire may result causing property damage, personal injury or loss of life.
  • Page 4 MODEL NO. 064-3179-6 Use this appliance only as described in the manual. Any other use is NOT recommended by the manufacturer and may cause fire, electric shock or injury to persons. CAUTION! If possible, ALWAYS unplug this appliance when not in use. DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions.
  • Page 5 Electric Connection A 15 A, 120 V, 60 Hz circuit with a properly-grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation.
  • Page 6 MODEL NO. 064-3179-6 Upper Decorative Panel - 1 Fixed shelf Right side panel - 1 Bottom - 1 Top - 1 Left back panel - 1 Bottom trim 1 Right back panel - 1 Bottom trim 2 Adjustable shelf - 2 Support feet Left door - 1 Left side panel - 1...
  • Page 7 Wood dowels 7.8 x 30 mm - 26 Sticker - 18 Wall anchor - 2 Support - 8 Screw 4 x 50 mm - 12 Handle - 2 Bolt M6 x 60 mm - 4 Bolt M4 x 24mm - 4 Cushioning cushion - 2 Crosshead nut - 4 Connector - 12...
  • Page 8 MODEL NO. 064-3179-6 Read each section carefully before starting. It is very important that each step is performed in • the correct order. If these steps are not followed in sequence, assembly di culties will occur. Make sure all parts are included. Most board parts are labelled or stamped on the raw edge. •...
  • Page 9 Step 1 Requires 1, A Step 2 Requires 1, 2, C...
  • Page 10 MODEL NO. 064-3179-6 Step 3 Requires 1, 3, C Step 4 Requires 1, 4, D, E, F Warning: Before completely fastening the parts in Step 4, make sure the parts in Step 5 are fastened in position.
  • Page 11 Step 5 Requires 1, G Step 6 Requires 5, 16, A, H, K...
  • Page 12 MODEL NO. 064-3179-6 Step 7 Requires 6, 16, A, H, K Step 8 Requires 7, 8, A, H...
  • Page 13 Step 9 Requires 5, 6, 8, L, M Step 10 Requires 9, A...
  • Page 14 MODEL NO. 064-3179-6 Step 11 Requires 1, 5, 6, 9, G, M Step 12 Requires 10, K...
  • Page 15 Step 13 Requires 10, 11, 12, L, M Step 14 Requires 13, N...
  • Page 16 MODEL NO. 064-3179-6 Step 15 Require 14 Step 16 Requires 15, O, P...
  • Page 17 Step 17 Require 15 Step 18 Requires O, P, Q...
  • Page 18 MODEL NO. 064-3179-6 Step 19 Step 20 Requires I, J, R, S, T, U, V °...
  • Page 19 Step 21 Requires B, H, I wall wall WARNING Young children may be injured by tipping furniture.The use of a tipping restraint is highly recommended. This hardware, when properly installed, could provide protection against the unexpected tipping of furniture due to improper use. Step 22 Enjoy your furniture 101 lb 7 oz WARNING...
  • Page 20 MODEL NO. 064-3179-6 Indicators Control Panel Light Sensor Light Sensor When a function is changed from the control panel or remote there will be a corresponding indicator displayed. The indicator shows the level selected of each function. When the mantel sliding doors cover the insert, the insert will turn o automatically after 10 seconds and display shows “E0”.
  • Page 21 FUNCTION ICON DESCRIPTION POWER NOTE: When the unit is ON, hold the POWER button for 3 seconds will restore the factory setting. 1. Snow White 2. Rubine 3. Ocean FLAME MODE 4. Provence 5. Party periodically. The fireplace contains a fan forced heater. The default setting temperature is 72°F (22°C).

  • Page 22: Care And Maintenance

    MODEL NO. 064 MODEL NO. 064-3179-6 Care and Maintenance Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater. Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.

  • Page 23: Replacing The Remote Control Battery

    Replacing the Remote Control Battery When the remote control stops operating or its range seems reduced, it is time to replace the battery with new ones. 3 volt lithium coin cell type 2025 battery. NOTE: Caution for Ingestion. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries. Battery should be removed if the product is to be left unused for a long time.
  • Page 24 MODEL NO. 064-3179-6 PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The thermostat sensor is Display shows “E2”. Contact Customer Service for a replacement thermostat sensor. broken or disconnected. Check that unit is plugged into a standard 120V outlet. Press the There is no power. power button several times and make sure the power is set to There is no power to the unit.
  • Page 25 For replacement parts, please call 1-888-670-6684, 7:00 am –5:00 pm CST, Monday – Friday. Part Part Part Name Part Name Flame Generator Drive Motor Light sensor Ember bed with Log Heater / Blower Assembly Ember bed Circuit Board Main Circuit Board Flame E ect Circuit Board Thermostat Sensor Control Panel Circuit Board...
  • Page 26 MODEL NO. 064-3179 -6 This CANVAS product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed...
