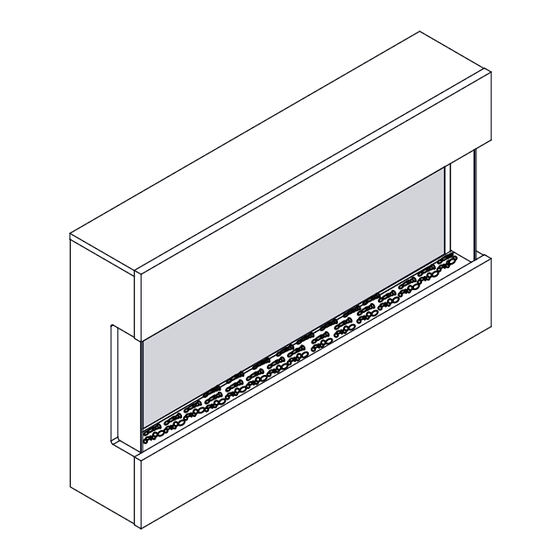

PEYTON
ELECTRIC FIREPLACE
MODEL NO. 064-3181-8
WALL MOUNTED
FREE STANDING
HOMEOWNER'S MANUAL
1-888-670-6684
IMPORTANT: If you have any problems or questions, email or call customer service
before you return this product to the store where it was purchased.

Advertisement

Table of Contents
loading

Related Manuals for Canvas Peyton 064-3181-8

Summary of Contents for Canvas Peyton 064-3181-8

  • Page 1 PEYTON ELECTRIC FIREPLACE MODEL NO. 064-3181-8 WALL MOUNTED FREE STANDING HOMEOWNER'S MANUAL 1-888-670-6684 IMPORTANT: If you have any problems or questions, email or call customer service before you return this product to the store where it was purchased.
  • Page 2 MADE IN CHINA IMPORTED BY TRILEAF DISTRIBUTION TRIFEUIL TORONTO, CANADA M4S 2B8...
  • Page 3 Part List Assembly Operating Instructions Care and Maintenance Troubleshooting Guide Replacement Parts List and Exploded View Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and operating this fireplace. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: DANGER: If the information in this manual is not followed exactly, an electric shock or fire may result causing property damage, personal injury or loss of life.
  • Page 4 MODEL NO. 064-3181 -8 Use this appliance only as described in the manual. Any other use is NOT recommended by the manufacturer and may cause fire, electric shock or injury to persons. CAUTION! If possible, ALWAYS unplug this appliance when not in use. DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions.
  • Page 5 Electric Connection A 15 A, 120 V, 60 Hz circuit with a properly-grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation.
  • Page 6 MODEL NO. 064-3181-8 Pebble bed Wood dowels 7.8 x 30 mm - 4 Screw 5 x 50 mm - 10 Screw 4 x 35 mm - 3 Fireplace Mantel - 1 Washer - 2 Base - 1 Wall Anchor Ø6 x 30 mm - 3 Mounting Bracket - 2 Wall Anchor Ø10 x 80 mm - 4...
  • Page 7 Read each section carefully before starting. It is very important that each step is performed in the correct order. • Make sure all parts are included. Most board parts are labelled or stamped on the raw edge. • Work in a spacious area, preferably on a carpet, near the place the unit will be located. •...
  • Page 8 MODEL NO. 064-3181-8 Installation tips • This heater must be fitted onto a flat wall. Ideally, install the heater directly to a brick wall, masonry surface or the internal wooden frame of a plasterboard wall. If the wooden frame behind the plasterboard is not accessible, use a minimum of four heavy-duty anchors that are suitable for the weight of the heater.
  • Page 9 Step 2 Require 3, E, F...
  • Page 10 MODEL NO. 064-3181-8 Step 3 Require 1 Warning : Ensure the mounting bracket is securely attached. Step 4 Requires C, Pebble bed DO NOT place any WARNING: objects on top of the mantel when hanging the fireplace. Pebble bed...
  • Page 11 Step 5 Requires 2, A Step 6 Requires 1, 2, B...
  • Page 12 MODEL NO. 064-3181-8 Step 7 Requires C, D, E WARNING Young children may be injured by tipping furniture.The use of a tipping restraint is highly recommended. This hardware, when properly installed, could provide protection against the unexpected tipping of furniture due to improper use.
  • Page 13 Step 8 Requires Pebble bed Pebble bed Step 9 Enjoy your furniture WEIGHT LIMIT 46 lb 5 oz This unit has been designed to support (21 kg) the maximum load shown. Exceeding this load limit could cause sagging, instability, product collapse, and/or serious injury.
  • Page 14 MODEL NO. 064-3181-8 This appliance can be operated by both remote control and manual buttons. POWER FLAME HEATER Manual control Remote control...

  • Page 15: Care And Maintenance

    Care and Maintenance Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater. Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.

  • Page 16: Replacing The Remote Control Battery

    MODEL NO. 064-3181-8 Replacing the Remote Control Battery When the remote control stops operating or its range seems reduced, it is time to replace the battery with new ones. 3 volt lithium coin cell type 2025 battery. NOTE: Caution for Ingestion. Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
  • Page 17 PROBLEM SOLUTION 1. No power. 1a. Check that unit is plugged into a standard 120V outlet 2a. Open bottom of unit, check to see if “spinner” is correctly mounted at the rear of unit. 2b. Check to see if spinning motor is functioning. if not, call customer service.
  • Page 18 MODEL NO. 064-3181-8 For replacement parts, please call 1-888-670-6684, 7:00 am –5:00 pm CST, Monday – Friday. Part Part Part Name Part Name Mounting Brackets Tray Circuit Board Fireplace Mantel Flame E ect Circuit Board Flame Generator Drive Motor Heater / Blower Assembly Control Panel Circuit Board Main Circuit Board Control Panel Buttons...
  • Page 19 This CANVAS product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed...
