MINN KOTA i-Pilot Link Quick Reference Manual

State-of-Charge indicators
for the remote battery and
12:13 PM OCT 18
trolling motor.
Charging Battery
Full Battery
Low Battery
DASHBOARD
GPS Speed
Navigation Mode
Legacy
Spot-Lock
AutoPilot
Advanced Navigating
AutoPilot to Start
Recording an iTrack Prop Status
When the red dot is shown, it The states of the prop icon are:
indicates that Link is currently
• Prop icon is not on = prop is disabled.
recording an iTrack.
• On steady but not rotating = prop is
enabled but the prop speed is zero.
• Rotating = prop is enabled and speed
is greater than zero.
• Blinking = prop is disabled but Link is
Cruise Control
in a mode of navigation and the user is
being reminded to enable the prop.
When the icon is shown,
the Cruise Control feature
is enabled.
HEADER
GPS Signal Strength
Flashing indicates no GPS fix.
12:13 PM OCT 18 Time and Date
This data is provided by the GPS.
Humminbird Connection
Highlights when the i-Pilot controller is in
communications with the Humminbird.
When there are no communications,
the arrows turn gray.
Motor Speed Cruise Control
Target Speed
Spot-Lock Paused
Navigating
to End
Following a
Contour
High Speed Bypass
• When the rabbit icon appears
above the left softkey, High
Speed Bypass is ready to
be used.
• When High Speed Bypass
is active, the rabbit icon will
appear in the dashboard and
the revert icon will appear
above the left softkey.

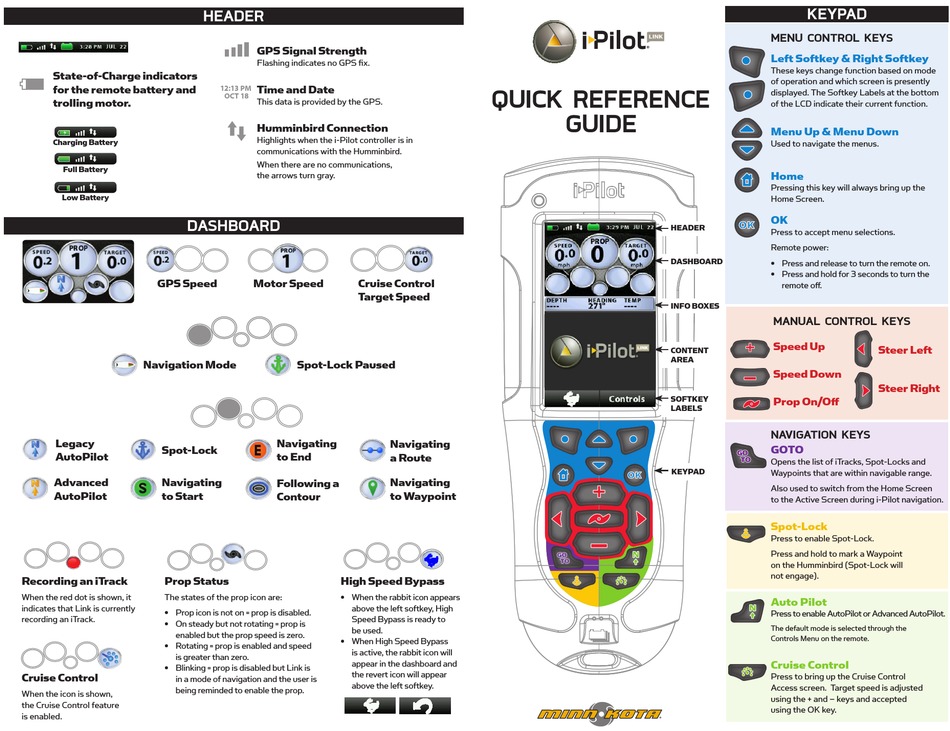

QUICK REFERENCE
GUIDE
Navigating
a Route
Navigating
to Waypoint
KEYPAD
MENU CONTROL KEYS
Left Softkey & Right Softkey
These keys change function based on mode
of operation and which screen is presently
displayed. The Softkey Labels at the bottom
of the LCD indicate their current function.
Menu Up & Menu Down
Used to navigate the menus.
Home
Pressing this key will always bring up the
Home Screen.
OK
HEADER
Press to accept menu selections.
Remote power:
DASHBOARD
• Press and release to turn the remote on.
• Press and hold for 3 seconds to turn the
remote off.
INFO BOXES
MANUAL CONTROL KEYS
Speed Up
CONTENT
AREA
Speed Down
SOFTKEY
Prop On/Off
LABELS
NAVIGATION KEYS
GOTO
Opens the list of iTracks, Spot-Locks and
KEYPAD
Waypoints that are within navigable range.
Also used to switch from the Home Screen
to the Active Screen during i-Pilot navigation.
Spot-Lock
Press to enable Spot-Lock.
Press and hold to mark a Waypoint
on the Humminbird (Spot-Lock will
not engage).
Auto Pilot
Press to enable AutoPilot or Advanced AutoPilot.
The default mode is selected through the
Controls Menu on the remote.
Cruise Control
Press to bring up the Cruise Control
Access screen. Target speed is adjusted
using the + and – keys and accepted
using the OK key.
Steer Left
Steer Right
