Liko Uno 100 Series Instruction Manual

This Instruction Guide applies to:
Name Prod. No.
Uno 100 EE 2010011
Uno 100 EM 2010012
Uno 102 EM 2010003
Uno 102 EE 2010004
Uno 102 ES 2010005

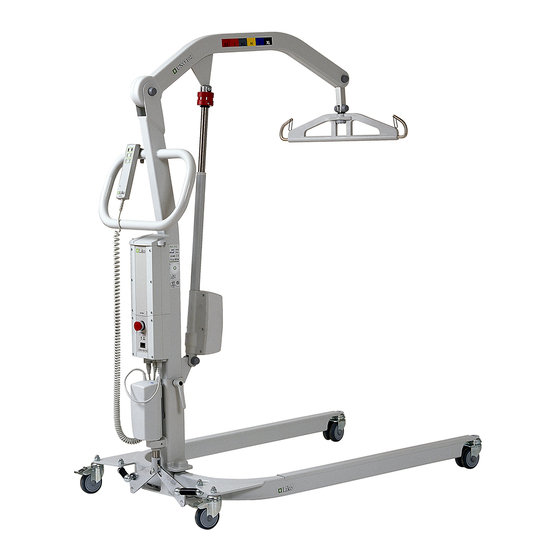

Uno 100 and 102 are electrically-powered mobile lifts,
designed to be used in most of the common lifting
situations, for example transfers between bed and
wheelchair, to and from the toilet and bathtub or for
lifting to and from the floor.
Selecting the appropriate slings and accessories for
each individual is important to assure maximum func-
tion and safety when using a patient lift.
In this document, the person being lifted is referred to as the "patient" and the person helping them is referred to
as the "caregiver".
"Caution!" triangles are used to warn of situations that demand extra care and attention.
IMPORTANT!
Carefully read instructions for the lift and lifting accessories before use. Lifting and transferring a person always
presents a potential risk. A thorough understanding of the contents of this instruction guide is essential. Only
trained personnel should use the equipment. If you have questions, please contact Liko or your local Liko
representative.
Uno 100/102 - EM, EE, ES
Uno can be adjusted to three different heights to give
you the most appropriate lifting range. The mid-range
is the standard position, while the lower position may
be the most suitable for lifting children, or to/from the
floor. The upper position may be needed for higher
lifts, for example to beds and gurneys that cannot be
lowered.
English
Instruction Guide
7EN150104-01
2007-05-11
