Summary of Contents for Liko Sabina 200

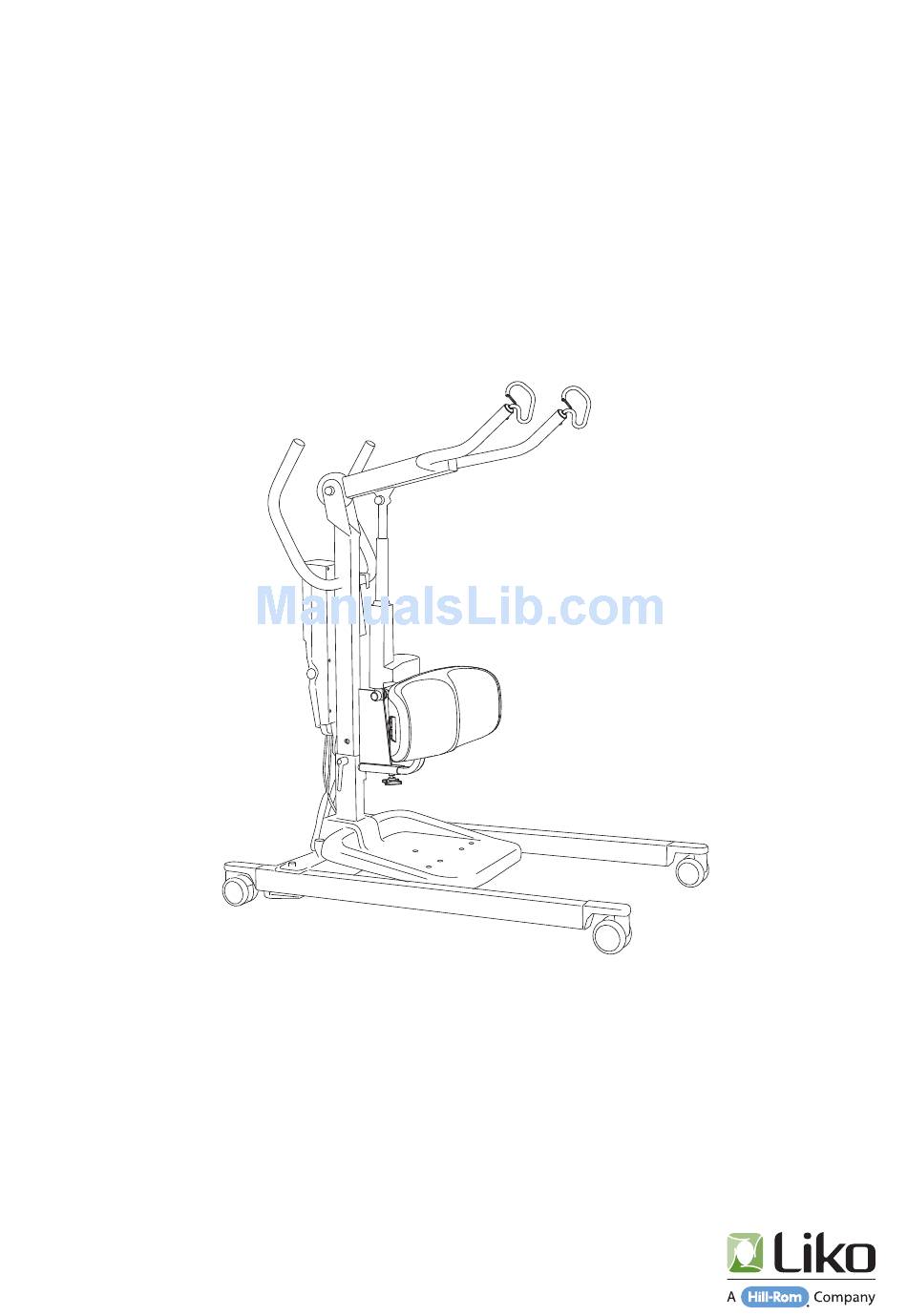

- Page 1 Sabina 200 Service Manual English Prod. No. 2020020 3EN550403-06 2013-04-09 Proj: 1881...
-
Page 3: Table Of Contents
6.0 Periodic Inspection ............31 7.0 Preventative Maintenance ..........37 8.0 Product Changes ............42 Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. For information regarding Service and Maintenance education, contact your Hill-Rom/Liko representative. -
Page 4: Sabina 200
Spare Parts Positions PROD. NO. PRODUCT 2020020 Sabina 200 230 372 www.liko.com Sabina 200... -
Page 5: Technical Data
2 min. twin wheel. Batteries: 2 x 12 V, 2.9 Ah. valve-regulated Standard rear: 75 mm (2.9 inch) lead-acid gel-type batteries. New twin wheel. batteries are provided by your Liko Foot rest: Removable. representative. Battery charger: support: Removable. max. 500 mA. - Page 6 When changing to other lifting equipment or wheels, check that the lift still achieves desired lifting height. Reference measurement according to Standard EN ISO 10535:2006. www.liko.com Sabina 200...
-
Page 7: Troubleshooting
The lift stops in the high position. not engaged (page 7). 2. Use the selected electrical emergency surface (page 7). 3. Check the battery voltage (page 8). 4. If the problem persists, please contact Liko/Hill-Rom. If you hear unusual sounds. Contact Liko/Hill-Rom. www.liko.com Sabina 200... -
Page 8: Spare Parts List
Spare Parts List Sabina 200 PROD. NO. POS. NO. NAME UNIT 20090025 Battery 2,9 Ah /12V pair 20290022 Calf Strap From S/N 3501600 31190018 Latch pair 20290026 Foot tray cover Sa II 20090058 Hook for Hand control 2,4,6 20190060 Control Box Uno 200... - Page 9 Sabina 200 PROD. NO. POS. NO. NAME UNIT 21090025 Charger CH01 20290030 Actuator LA31-300 20290032 Foot Frame Sabina 200 2107101 Locking handles pair 20290033 Star wheel M8 20290034 Locking rail & Star wheel M6 20190048 Lacquer Top Coat for Improvement, Grey...
-
Page 10: Battery 2,9Ah/12V
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. Old batteries are to be left at the nearest recycling station. -
Page 11: Calf Strap
Fits / Passar till: Sabina, Sabina 200, Sabina II. 5 mm Assembly instruction (1): Sabina 200, from serial no. 3501600 - , Sabina II, from serial no. 460900 - Monteringsanvisning (1): Sabina 200, från serienr. 3501600 - , Sabina II, från serienr. 460900 -... -
Page 12: Latch
- Make sure the spare part is mounted according to the assembly instruction. - Pull up on the latch and make sure it falls to the closed position when released. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com... -
Page 13: Foot Tray Cover
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 14: Hook For Handcontrol 2, 4, 6 Button
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com... -
Page 15: Control Box
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 16: Hand Control
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 17: Lift Arm, Plastic Cover
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 18: Base Motor
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 19: Front Wheel 75 Mm
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 20: Rear Wheel 75 Mm
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 21: Charger Ch01
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 22: Actuator La31-300
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com... -
Page 23: Foot Frame Sabina 200
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 24: Locking Handles
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 25: Star Wheel M8
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... -
Page 26: Locking Rail & Star Wheel M6
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com... -
Page 27: Hook Assembly
- Make sure the latch (D) is mounted. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. MAKE SURE THE HOOKS ARE INSTALLED AS THE PICTURES SHOWS: Screw and hook curve always on the same side. -
Page 28: Leg Support Ll
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. www.liko.com... - Page 29 Prod. No: Tools required (included): 4 mm / 0,16 inch This instruction applies to all of the above products. NOTE Make sure the twin lock washers are NOTE MAKE SURE THE HOOKS ARE INSTALLED AS THE PICTURES SHOWS: www.liko.com Sabina 200...
-
Page 30: Charger Socket Connection
- Make sure the spare part is mounted according to the assembly instruction. - Check all functions related to the changed spare part. Repairs and maintenance may only be performed by personnel authorized by Hill-Rom/Liko and using original Liko spare parts. www.liko.com... -
Page 31: Periodic Inspection
“To be actioned” these actions should be performed immediately. After performed actions sign below. If anything is unclear or if you have questions, please contact Hill-Rom/Liko or your local Hill-Rom/Liko representative. Contact information is to be found at www.liko.com. - Page 32 Check Pionts Sabina 200 Periodic Inspection Sabina 200 www.liko.com...
- Page 33 Sabina 200: - Check that the screws and nuts in base motor are tight. - Inspect the diagonal bar (Sabina 200) - Inspect linkage and plastic covers. - Verify max. & min. dimensions. (Can be found in the Instruction Guide) 6 Base frame castor play &...
- Page 34 - Verify that the upper and lower actuator fasteners to the mast are tight. - Check of abnormal noise level. Sabina ll / Sabina 200: - Check of electric end stop by using Service box ( 21090013(EU), 21090014 (UK), 21090015(US)).
- Page 35 150kg / 330lbs 120 kg / 265 lbs 19 Documentation - Instructions/Instruction guide Sabina ll (from S/N 452000) / Sabina 200: Quick Reference Guide shall be placed in the intended holder on the control unit. Periodic Inspection Sabina 200 www.liko.com...
-
Page 37: Preventative Maintenance
Prod. Year: (Zip Code) To ensure maximum life cycle, should Preventative Maintenance be carried out according to the table below. Inspection and service must be carried by Liko/Hill-Rom authorized personnel. Instructions for check points, from the next page. Base Month 12 24 36 48 60 72 84 96 108 120 1 Surface treatment .......... - Page 38 1. If needed, clean the patient lift with warm water or ethanol. Warning! Do not use chemicals containing phenol or chlorine, since the aluminium parts may be damaged. 2. Touch-up painted surfaces with Laquer top coat, Spare Part No. 20190048 3. Replace broken / missing leg protectors with Spare Part No. 20190029 Preventative Maintenance Sabina 200 www.liko.com...
- Page 39 Re-assemble in reverse order. 4. If wheels are worn or do not roll smoothly, replace them with Spare Part No. 20190066. 5. Check the brakes. They should lock in all directions. Recommended replacement is every 5 year Preventative Maintenance Sabina 200 www.liko.com...
- Page 40 5. Actuator linkage 1. Remove link arm cover, bolt and nut. 3. Clean, lubricate and re-assemble pivot bolt, bearing sleeves and hardware. 4. Reconnect actuator to link arm. Apply cover hats. Spare Part No.20190067 Base-motor cable Preventative Maintenance Sabina 200 www.liko.com...
- Page 41 - Check all functions related to the changed spare part. - Repairs and maintenance may only be performed by personnel authorized by Liko/Hill-Rom and using original Liko spare parts. - Old batteries are to be left at the nearest recycling station.
-
Page 42: Product Changes
Sabina 200 Product changes Prod. No. 2020020 2013 Changes Project New sparepart 20190079 Charger Socket Connection 1881 2012 Changes Project New Hook ll on the sling bars. 3501600 1732 2011 Changes Project New Knee support. 3501600 1627 New Hook on the sling bars. - Page 44 . l i k o . com Manufacturer: Liko AB SE-975 92 Luleå Sweden info@liko.se...
