Liko Golvo 7000 ES Instruction Manual

Golvo 7000 ES/ 7007 ES

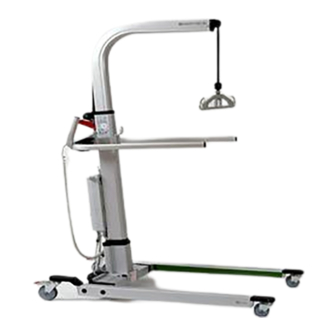

Golvo is an electrically powered mobile lift, i.e., both
raising and lowering of the lift arm and width adjust-
ment of the base are done with electric motors.
To ensure maximum safety for caregivers and patients,
Golvo is equipped for both mechanical and electrical
emergency lowering. All Golvo lifts are equipped with
convenient armrests, to assist both the caregiver and
the patient. If needed, the armrests can be folded down
into a support position.
Golvo is also available in a design with an extra low
base; Golvo LowBase™. This model is recommended
In this document, the person being lifted is called the "patient" and the person helping is called the "caregiver".
are triangles used to warn of situations that demand extra care and attention.
IMPORTANT!
Carefully read these instructions and the instructions for the particular lifting accessory being used. Lifting
and transferring patients always presents a potential risk. It is essential to thoroughly understand the content
of these manuals, and that only trained persons use the equipment. If you have questions, please contact
Liko or your local Liko representative.
Product Description
for lifting to and from beds/barrack-beds that have a
ground clearance of 58-110 mm (2.28-4.3 inch.).
Golvo can be used in most lifting situations: for
example, between bed/wheelchair, to/from the toilet,
in bath and shower, to/from the floor, for weighing
patients and for horizontal lifting.
A comprehensive range of accessories are available
for Golvo, including sling bars of different widths,
slings in many sizes and fabrics, and accessories
for ambulation/gait training, static weight-bearing,
weighing patients, and for emergency room use and
horizontal lifting, etc.
Golvo™
Instruction Guide
7EN140102-03
2009-07-03
Applies to the following models:
Golvo 7000 ES Prod. No. 2000009
Golvo 7007 ES Prod. No. 2000010
Golvo 7007 LowBase™ Prod. No. 2000061
Golvo 7007 LowBase™
English
