Liko Universal Sling Bars
Instructions for Use
Applies to the following models:
Universal SlingBar 350
Universal SlingBar 450
Universal SlingBar 600
Universal TwinBar 670 Twin
Universal Sidebar 450
Universal SlingBar 350 R2R
Universal SlingBar 450 R2R

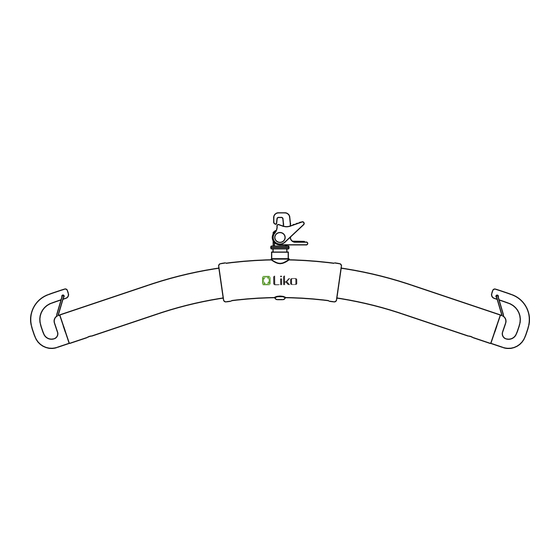

Universal SlingBar
Liko Universal sling bars are available in various models. There are two assembly options: fixed assembly or Quick-release
Hook. Most of the Universal sling bars have the Liko Quick-release Hook system as standard.
Intended Use:
A Universal Sling Bar is used as an aid in carrying out lifts but does not come in to contact with the patient.
It is intended for use in following environments: Health care, Intensive care, Emergency ward, Rehabilitation, Habilitation and
Home healthcare environments.
In this document, the person being lifted is referred to as the patient and the person helping them is referred to as the caregiver.
IMPORTANT!
Lifting and transferring a patient always involves a certain level of risk. Read the instructions for use for both the patient
lift and lifting accessories before use. It is important to completely understand the contents of the instructions for use.
The equipment should only be used by a trained caregiver. To be trained, a caregiver needs to read and understand the
Instructions for Use. Ensure that the lifting accessories are suitable for the lift used. Exercise care and caution during use.
As a caregiver, you are always responsible for the patient's safety. You must be aware of the patient's ability to make it
through the lifting situation. If something is unclear, contact the manufacturer or supplier.
7EN160185 Rev. 6
ENGLISH 2024
Prod. No. 3156074
Universal SlingBar 350 QRH
Prod. No. 3156075
Universal SlingBar 450 QRH
Prod. No. 3156076
Universal SlingBar 600 QRH
Prod. No. 3156077
Universal TwinBar 670 Twin QRH
Prod. No. 3156079
Prod. No. 3156094
Prod. No. 3156095
Universal SideBar
Product Description
Universal TwinBar
Prod. No. 3156084
Prod. No. 3156085
Prod. No. 3156086
Prod. No. 3156087
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Liko Universal SlingBar 350
Summary of Contents for Liko Universal SlingBar 350
- Page 1 Universal TwinBar Universal SideBar Product Description Liko Universal sling bars are available in various models. There are two assembly options: fixed assembly or Quick-release Hook. Most of the Universal sling bars have the Liko Quick-release Hook system as standard. Intended Use: A Universal Sling Bar is used as an aid in carrying out lifts but does not come in to contact with the patient.
- Page 2 Table of Contents Product Description .......................... 1 Intended Use: ........................... 1 Safety Information ..........................3 Maximum Load ..........................3 Symbol Description ........................... 3 Assembly ............................4 How to Attach a Sling to a Universal SlingBar ...................5 Dimensions ............................6 Care and Inspection .......................... 8 7EN160185 Rev.
- Page 3 Safety Information Universal SlingBar can be used with Liko slings that attach to the sling bar using sling loops. Universal SlingBar can be used with Liko slings designed for four connection points on the sling bar. For more information on how to select a sling, read the sling’s instructions for use. The sling’s instructions for use will have information for using Liko sling bars with Liko slings.
- Page 4 Incorrect attachment of sling bar to lift may cause severe injury to the patient. Intended for the following sling bars: Universal SlingBar 350 QRH, 450 QRH, 600 QRH and Twinbar 670 QRH (Prod. No. 3156084 - 3156087). Universal SlingBar 350 R2R and 450 R2R (Prod. No. 3156094 - 3156095).
- Page 5 Assembly of SideBar with Universal SlingBar How to Attach a Sling to a Universal SlingBar Sling bar Sling loops to sling bar hooks Correct Universal SlingBar Universal Twin Note! One sling upper strap loop and one leg support loop Universal SideBar on each side bar.
- Page 6 Dimensions Universal SlingBar 350 Dimensions (mm). Prod. No. 3156074 (with fixed attachment) model Dimensions (in.). model 21.3 Weight: Approx. 0.77 kg / 1.7 lbs. Contact Points: 2 * Installation dimensions: the distance between the sling bar hooks attachment point (for sling etc.) to the sling bar´s central suspension point (CSP) to lift.
- Page 7 Universal TwinBar 670 Prod. No. 3156077 (with fixed attachment) Dimensions (mm). model 165.5 744 Dimensions (in.). model 6.51 29.29 4.44 Weight: Approx. 1.8 kg / 3.96 lbs. Contact Points: 4 * Installation dimensions: the distance between the sling bar hooks attachment point (for sling etc.) to the sling bar´s central suspension point (CSP) to lift.
- Page 8 If in doubt, the user of the device shall first contact Hillrom Technical Support for guidance on safe disposal protocols. Product Changes Liko products undergo continuous development, which is why we reserve the right to make product changes without prior notice. Contact your Hillrom representative for advice and information about product upgrades.
