Leviton GreenMAX DRC Installation Instruction

WARNINGS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Application Notes

The GreenMax Distributed Room Controller (DRC) comes in a Line Voltage and
Low Voltage LumaCAN™ powered product. The product manages all the energy
®
a Wi-Fi enabled cell phone or tablet.
• Only one room controller should be used per room. Each room requires one controller.

Installation

WARNING: TO AVOID FIRE, SHOCK, OR DEATH;
TURN OFF POWER at circuit breaker or fuse and test
that power is off before wiring!

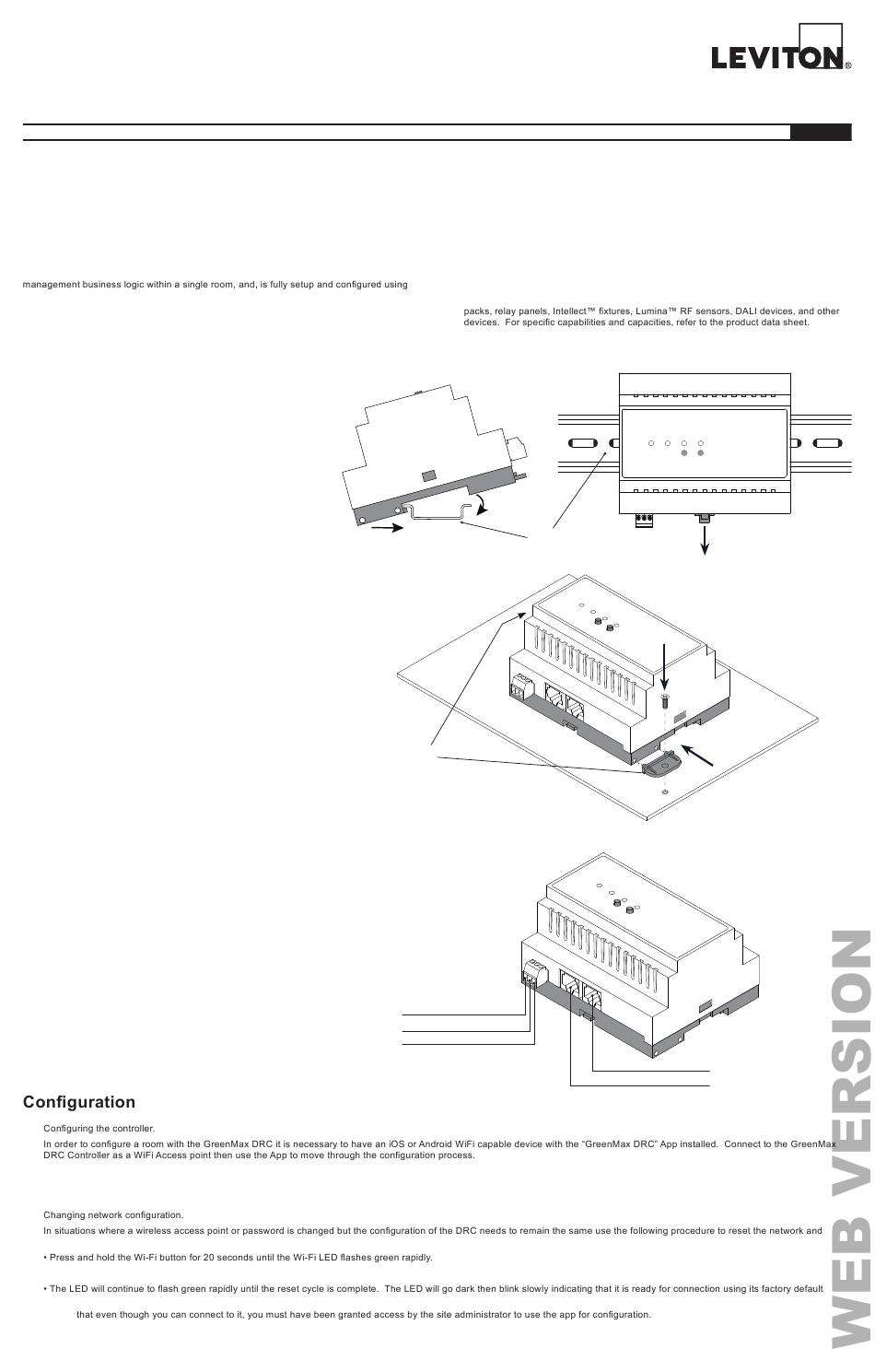

1.
Mount the controller using one of the mounting options.
NOTE: To remove the controller from the DIN rail, pull
down on the tension spring and lift off.
2.
Make all low voltage connections per the wiring diagram.
3.

LumaCAN

• Wire per the TIA-568B standard.
• The sequence of network nodes, as described in the Construction Documents,
may be critical to ensure power distribution between nodes.
• All LumaCAN wire segments must be tested and validated prior to powering up of the system.
• The last device in each LumaCAN run must be terminated using an RJ45 terminator plug.
Each DRC is supplied with one terminator plug preinstalled in the smart pack.
• Devices on LumaCAN follow daisy chain topology. Home Run topology supported with the
use of repeaters. Max 110 nodes per segment, max 250 nodes per sub-net.
• Perform voltage drop calculations on all networks.
1.
• Factory Default Access Point Name: GreenMax DRC-[serial number] (The serial number is printed on the product label, use only last four character.)
• Factory Default Security: WEP Security, Password: leviton0000
2.
reconnect to the device:
• Release the button.
AP name and credentials.
NOTE:
© 2018 Leviton Mfg. Co., Inc.
GreenMax ® Distributed Room Controller
Cat. No. DRC00-0L0
INSTALLATION INSTRUCTIONS
a.
Mounting on DIN rail
b.
Mounting with mounting ears
mounting ears

Low Voltage Input

1. Pinout:
Pin 1 - Signal Input
Pin 2 - Common
Pin 3 - +24 VDC
(V follows LumaCAN supply)
2. Detects 0-24VDC. Can be used as contact
closure, 0-10V photocell input, or dry contact.

CAUTIONS

• Use this device with copper or copper clad wire only.
• For indoor applications only.
• Save these instructions.
• The LumaCAN network can span multiple rooms and connect multiple DRC devices
together; however it is important to pay particular attention to control and setup of rooms
to avoid cross room control.
• Each GreenMax DRC Controller can connect to a variety of devices, such as DRC smart
DIN rail
DI-001-DRC00-02A
ENGLISH
To remove
from DIN rail
To next device
From previous device
DI-001-DRC00-02A
