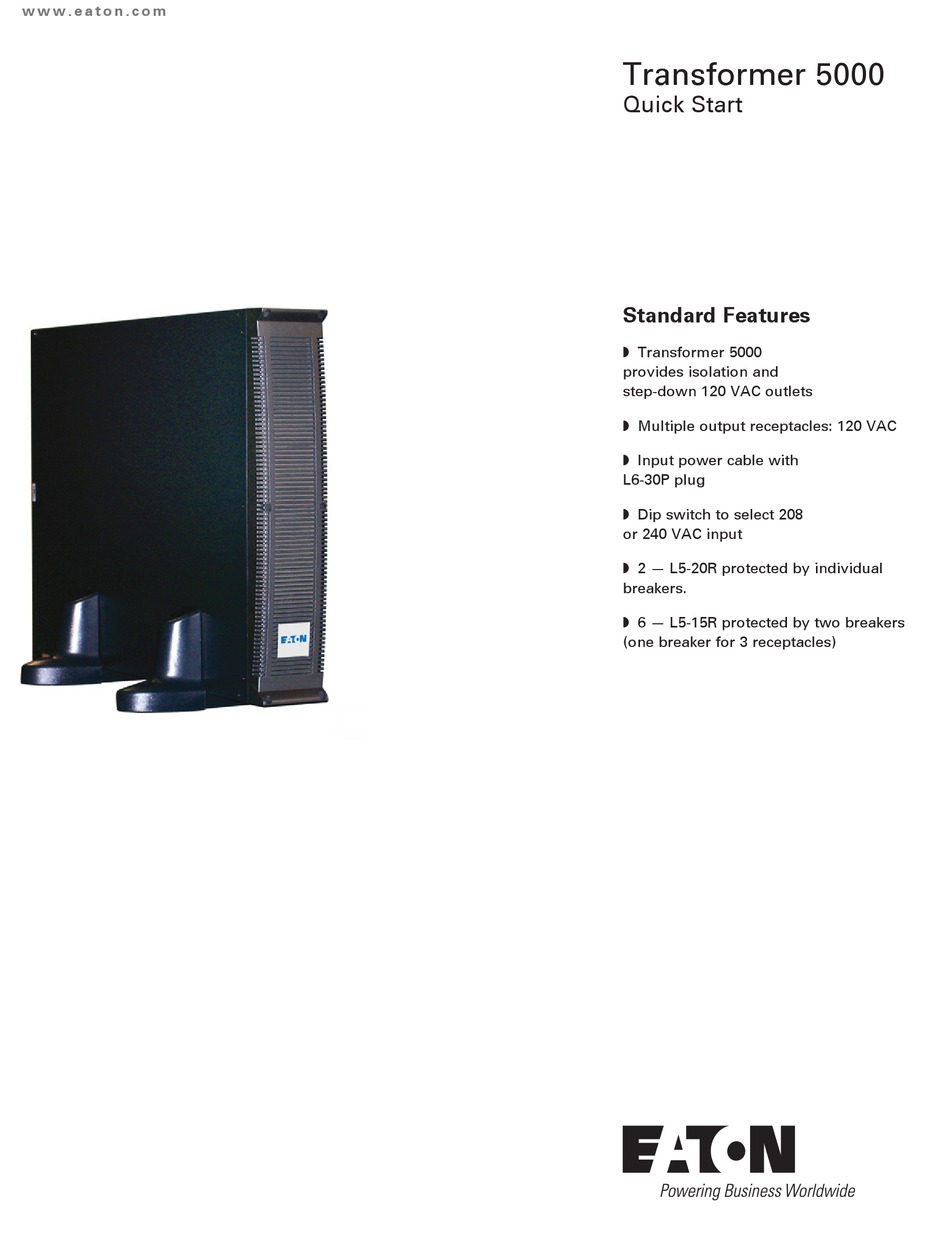

w w w . e a t o n . c o m

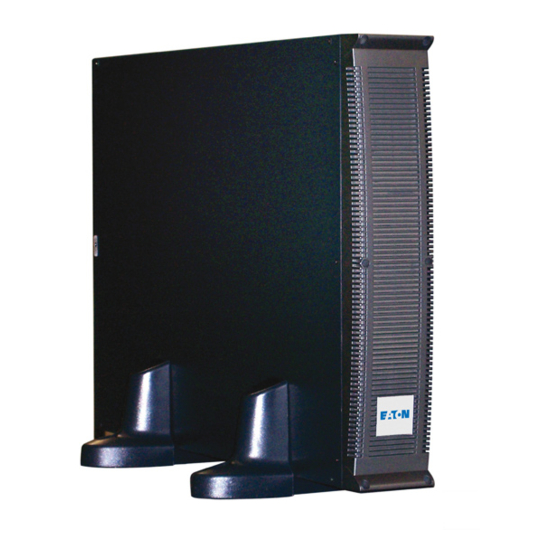

Transformer 5000

Quick Start

Standard Features

w Transformer 5000

provides isolation and

step-down 120 VAC outlets

w Multiple output receptacles: 120 VAC

w Input power cable with

L6-30P plug

w Dip switch to select 208

or 240 VAC input

w 2 — L5-20R protected by individual

breakers.

w 6 — L5-15R protected by two breakers

(one breaker for 3 receptacles)

Table of Contents

Do you have a question about the Transformer 5000 and is the answer not in the manual?

Page 1 . e a t o n . c o m Transformer 5000 Quick Start Standard Features w Transformer 5000 provides isolation and step-down 120 VAC outlets w Multiple output receptacles: 120 VAC w Input power cable with...
Page 2 EX RT Transformer Module STEP 1: Transformer 5000 Unpacking and Parts Check (87102) Transformer 5000 Box Contents Transformer 5000 Tower Stand Extenders Quick Start Manual Telescopic Rails for Rack Mount Stabilizer Bracket (4 screws included) STEP 2: Transformer 5000 Tower Configuration Tower Conﬁguration of Standard System with Transformer Module...
Page 3 Quick Start STEP 3: Transformer 5000 Rack Configuration 1. Attach both front mounting ear brackets to Transformer 5000 module with supplied screws (for this step, it is possible to adjust the position of both front mounting brackets). 2. Attach rear support brackets to module.
Page 4 86-87102-00 A01...
