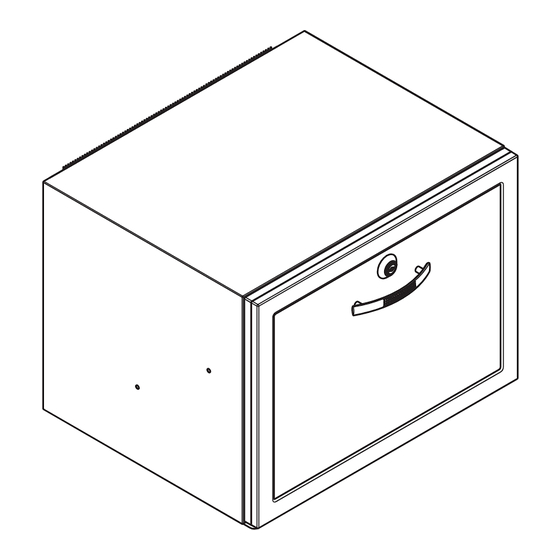

- Page 1 REFRIGERATION MINI FRIDGES DM50C Drawer Minibar Installation and Operating Manual...
-
Page 2: Table Of Contents
DM50C Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it. -
Page 3: Explanation Of Symbols
DM50C Explanation of symbols Explanation of symbols WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury. CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. - Page 4 Safety instructions DM50C • If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. • Do not store any explosive substances such as spray cans with a flammable propellant in the device.
-
Page 5: Scope Of Delivery
DM50C Scope of delivery • Never immerse the device in water. • Protect the device and the cable against heat and moisture. Scope of delivery The following main alternatives are obtainable: • Minibar DM50CD with door panel, without lock • Minibar DM50CD with door panel, with lock •... -
Page 6: Proper Use
Proper use DM50C Proper use The Minibars DM50CD and DM50CF are designed for use inside a piece of furniture and are suitable for cooling beverages and food. The device is designed for use with a 230 V AC mains supply. - Page 7 DM50C Technical description Description of the device Front panel Item Description Lock (optional) Handle (DM50CD only) Door panel (DM50CD only)
- Page 8 Technical description DM50C Rear side Item Description Stopper 230 V connection cable Drip tray...
- Page 9 DM50C Technical description Control panel (inside the device) Press“SET”to enter SLEEP mode Item Description Lamp Error LED Status LED Setting button...
- Page 10 Technical description DM50C Main drawer Item Description Small bottle holder Wide divider Separator Bottle finger Small divider...
- Page 11 DM50C Technical description Mini drawer Item Description Rotatable divider Miniature bottle holder Dimensions 71.2...
-
Page 12: Installation
Installation DM50C Installation Notes on mounting into furniture You can mount the minibar in four ways into furniture. Choose your favoured alternative according to the following figure (page 13). Observe the following: • The cut-out dimensions H x W x D are: –... - Page 13 DM50C Installation ≥ 200 cm² ≥ 200 cm² ≥ 200 cm² ≥ 200 cm² ≥ 200 cm² ≥ 200 cm²...
- Page 14 Installation DM50C Mounting the minibar into a piece of furniture Item Description Screw ø4 x 45 mm Plug ➤ Fasten the minibar with the four screws ø4 x 45 mm (1). ➤ Insert the four plugs (2) into the boring.
-
Page 15: Operation
DM50C Operation Operation Energy saving tips • Do not open the cooling device more often than necessary. • Do not leave the cooler unit open for longer than necessary. Using the minibar The minibar starts cooling when connected to power. During normal operation the Status LED is glowing. - Page 16 Operation DM50C Leaving “SLEEP” mode: ➤ Press briefly the setting button (1). ✓ The internal lamp (3) turns on, the status LED (2) is still on. The minibar resumes cooling. Temperature setting function The minibar is set by default to a cooling temperature of 7 °C at an ambient temperature of 25 °C.
-
Page 17: Troubleshooting
DM50C Troubleshooting Troubleshooting Fault Possible cause Suggested remedy Device does not No voltage present in Try using another plug socket. function, Status LED the AC voltage socket. does not glow. The mains adapter is This can only be repaired by an defective. -
Page 18: Guarantee
Guarantee DM50C Guarantee The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses). For repair and guarantee processing, please include the following documents when you send in the device: •... -
Page 19: Technical Data
DM50C Technical data Technical data DM50CD DM50CF Voltage: 220 – 240 Vw, 50 Hz – 60 Hz Cooling capacity: max. 40 °C below ambient temperature (adjustable in three steps: 3 °C, 7 °C, 12 °C) Gross capacity: 50 l Capacity:... - Page 20 Dometic (Pty) Ltd. Dometic Branch Office Belgium MEXICO Regional Office Zincstraat 3 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa B-1500 Halle Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
