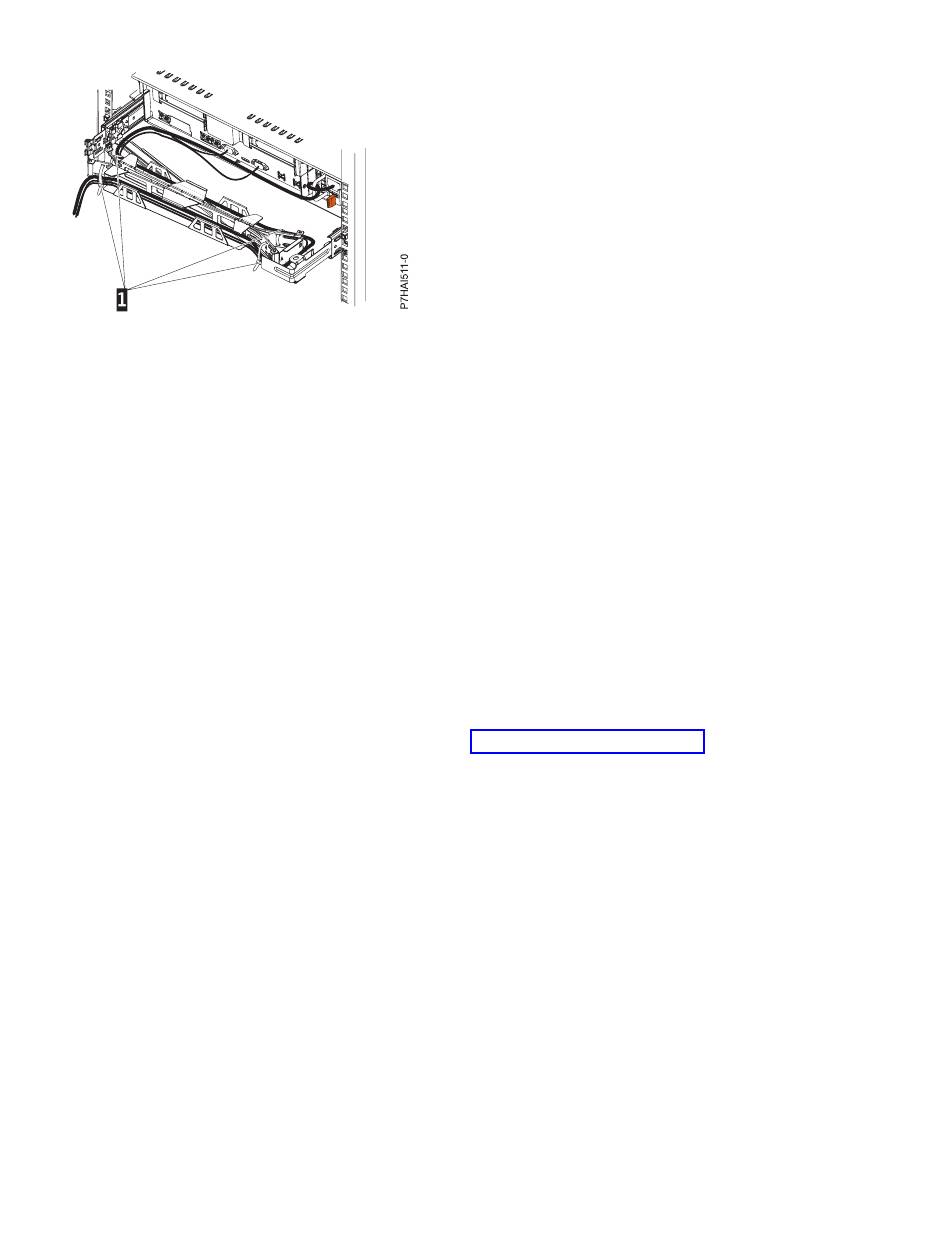

Figure 25. Power cord attachment and routing
12. Slide the server into the rack until it snaps into place.

Installing the monitor and keyboard

Learn how to install the monitor and keyboard, which are shipped with the 7042-CR6 HMC, into a rack.
This is a customer task.
If an HMC is used to manage a POWER7 processor-based system, the HMC must be at CR3, or later, it
must be a rack-mounted HMC model. The IBM eserver 7316-TF3 is a 17 inch, flat-panel, and
rack-mounted monitor and keyboard tray. A special keyboard, that is available for a variety of languages,
fits inside the front of the keyboard tray. The monitor and keyboard tray occupy 1 Electronics Industries
Association (EIA) unit 1 of space in a rack cabinet. You can install a console switch behind the tray to
attach more than one server to the flat panel monitor and keyboard.
To install the 7042-CR6 HMC into a rack, complete the following steps:
Attention: Installing the rails in the rack is a complex procedure. To install the rails correctly, you must
perform each task in the following order.
1. Complete a parts inventory. For instruction, see Completing a parts inventory.
2. Locate the rack-mounting hardware kit and the system rail assemblies that were included with your
system unit.
