9119-FHB HMC port locations
Use this diagram and table to map the HMC ports on a 9119-FHB.

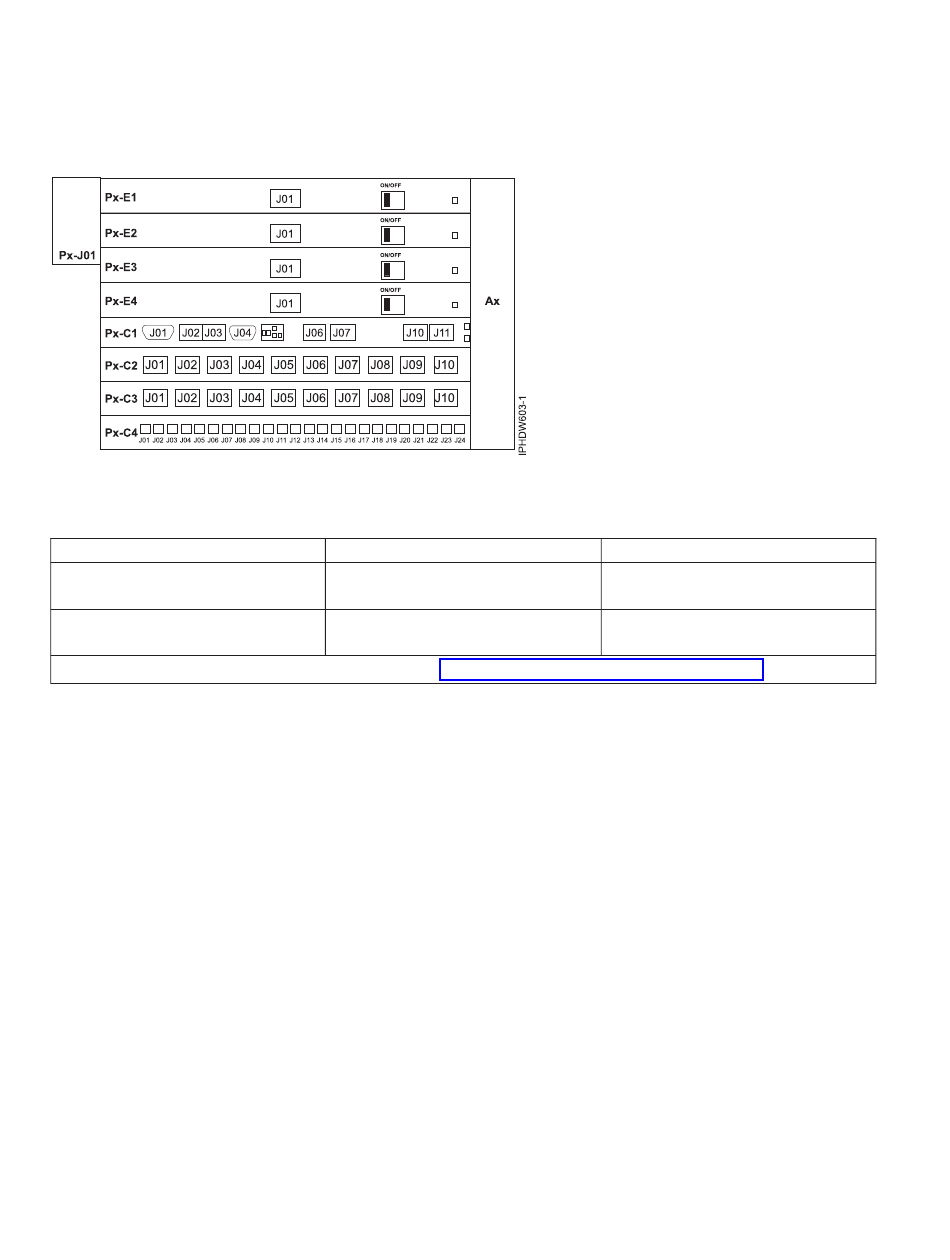

Figure 44. 9119-FHB HMC port locations
Table 21. 9119-FHB HMC port locations
Port
HMC (Connector J02, Ethernet to
Bulk power hub-BPH)
HMC (Connector J03, Ethernet to
Bulk power hub-BPH)
For more information on HMC ports on 9119-FHB, see Part location and location codes for 9119-FHB
82
Power Systems: Installing and configuring the Hardware Management Console
Physical location code
Un-Px-C1–J02
Un-Px-C1–J03
Identify LED
No
No
