Summary of Contents for IBM 7063-CR1

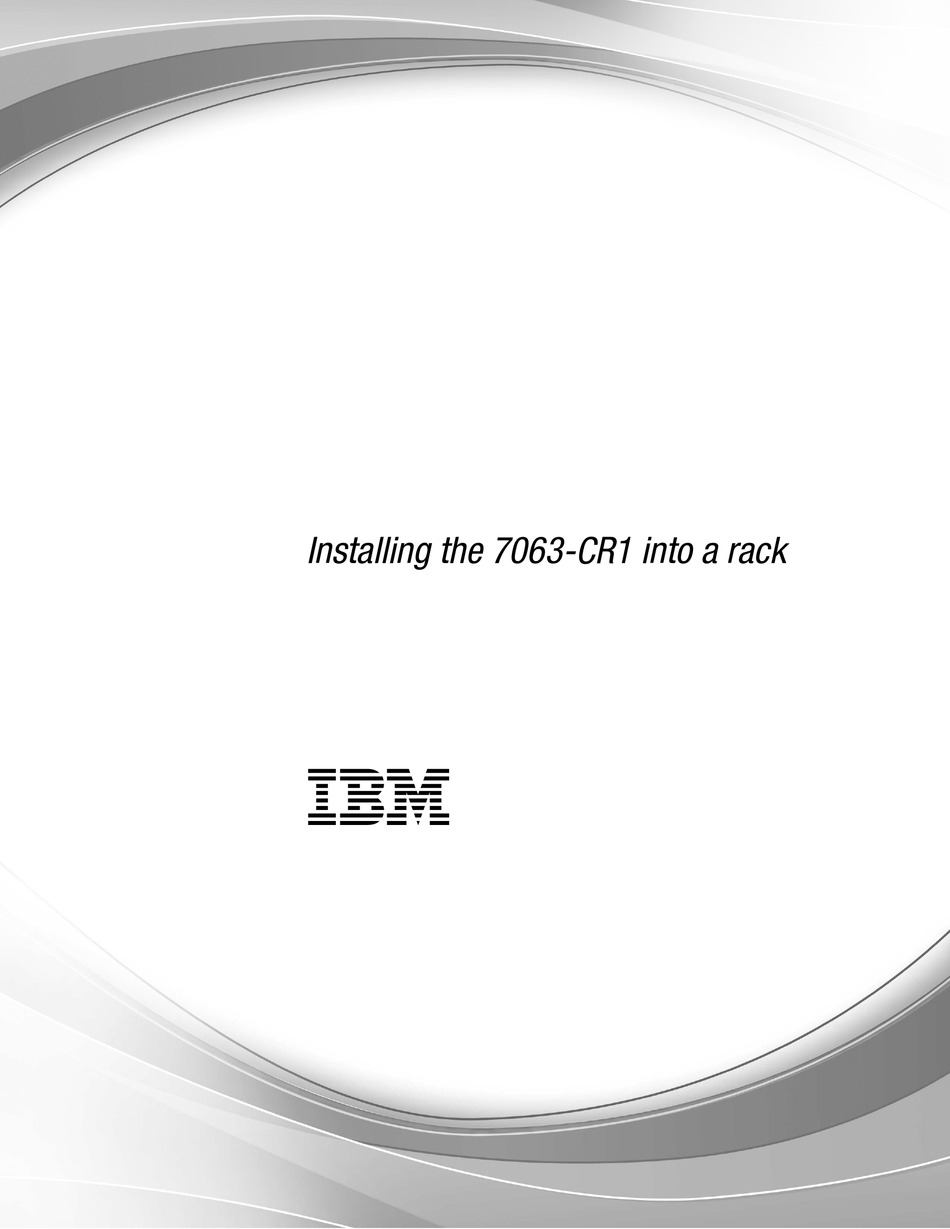

- Page 1 Installing the 7063-CR1 into a rack...
- Page 2 Installing the 7063-CR1 into a rack...
-
Page 3: Table Of Contents
Contents Installing the 7063-CR1 into a rack ......1 Prerequisites for installing the rack-mounted 7063-CR1 system. Completing inventory for your system. - Page 4 Installing the 7063-CR1 into a rack...
-
Page 5: Installing The 7063-Cr1 Into A Rack
Use the information to understand the prerequisites that are required for installing the system. You might need to read the following documents before you install the server: v The latest version of this document is maintained online, see Installing the 7063-CR1 into a rack (http://www.ibm.com/support/knowledgecenter/POWER8/p8hai/p8hai_install7063_kickoff.htm). - Page 6 6. Repeat step 5 for the corresponding holes located on the left side of the rack. 7. Go to the rear of the rack. 8. On the right side, find the EIA unit that corresponds to the bottom EIA unit marked on the front of the rack. Installing the 7063-CR1 into a rack...
-
Page 7: Installing The Hmc Into The Rack Using The Fixed Rails
Installing the HMC into the rack using the fixed rails If you are installing the 7063-CR1 HMC into the rack using the fixed rails, complete the following tasks. Attaching the fixed rails to the system chassis and to the rack You must install the rails onto the chassis and into the rack. -
Page 8: Installing The System Into The Rack And Connecting And Routing Power Cables
5. Push the system toward the rear of the rack until the system. 6. Secure the system to the rack by screwing a screw through the handles on each side of the system chassis. 7. Plug the power cords into the power supplies. Installing the 7063-CR1 into a rack... -
Page 9: Installing The Hmc Into The Rack Using The Slide Rails
10. Continue with Configuring the HMC by using the HMC Enhanced+ interface. Installing the HMC into the rack using the slide rails If you are installing the HMC into the rack using the slide rails, complete the following tasks. Installing the 7063-CR1 into a rack... -
Page 10: Attaching Slide Rails To The System And Rack
Do not install mismatched hardware by using washers or spacers. If you do not have the correct rails and fittings for your rack, contact your IBM reseller. The slide rails arrive fully assembled. To install the slide rails into the rack, you must disassemble the slide rails into four pieces. - Page 11 5. From the front of the rack, insert the pins on the front of the slide rail (1) into the holes on the front of the rack that you previously marked (2). Pull the rail forward so that the rail spring clip (3) latches Installing the 7063-CR1 into a rack...
- Page 12 7. Move to the rear of the rack. Pull the slide rail toward you to insert the two pins (1) into the rack holes (2). Pull the rail until the rail spring clip (3) clicks into place. Install the screw (4) to secure the slide rail to the rack. Installing the 7063-CR1 into a rack...
-
Page 13: Installing The System Into The Rack And Connecting And Routing Power Cables
1. Fully extend the slide rails until the rails click into the service position (A). 2. Using two people, lift the system and align the lower roller pins on the chassis rails with the grooves in the rack slide rails on both sides. Installing the 7063-CR1 into a rack... - Page 14 3. Simultaneously lift the latches on either side of the rack (B) that are marked with a green arrow. 4. Push the system into the rack. 5. Tighten the thumbscrews on either side of the system to secure the system to the rack. Installing the 7063-CR1 into a rack...
