NI 1483R User Guide and Specifications
The NI 1483R is an image acquisition device that supports Base, Medium, Full, and Extended Full
(80-bit) configuration Camera Link-compatible cameras. The NI 1483R is comprised of an
TM
NI FlexRIO
how to install and configure the NI 1483R, how to acquire images using a LabVIEW FPGA example
VI, and lists the specifications for the NI 1483.
NI 1483
Required Components
The following items are necessary to set up and use the NI 1483R:
NI FlexRIO adapter module (NI 1483)
NI FlexRIO FPGA module
The following software packages:
LabVIEW 2010 or later
LabVIEW FPGA Module 2010 or later
NI-RIO 4.0 or later driver software
NI-IMAQ 4.6.1 or later driver software, included with NI Vision Acquisition Software
September 2011
(Optional) NI Vision Development Module 2010 or later for creating machine vision
applications
Refer to
Step 1. Install Application Software and Driver
FPGA module and an NI FlexRIO adapter module (NI 1483). This document explains
NI FlexRIO
+
FPGA Module
=

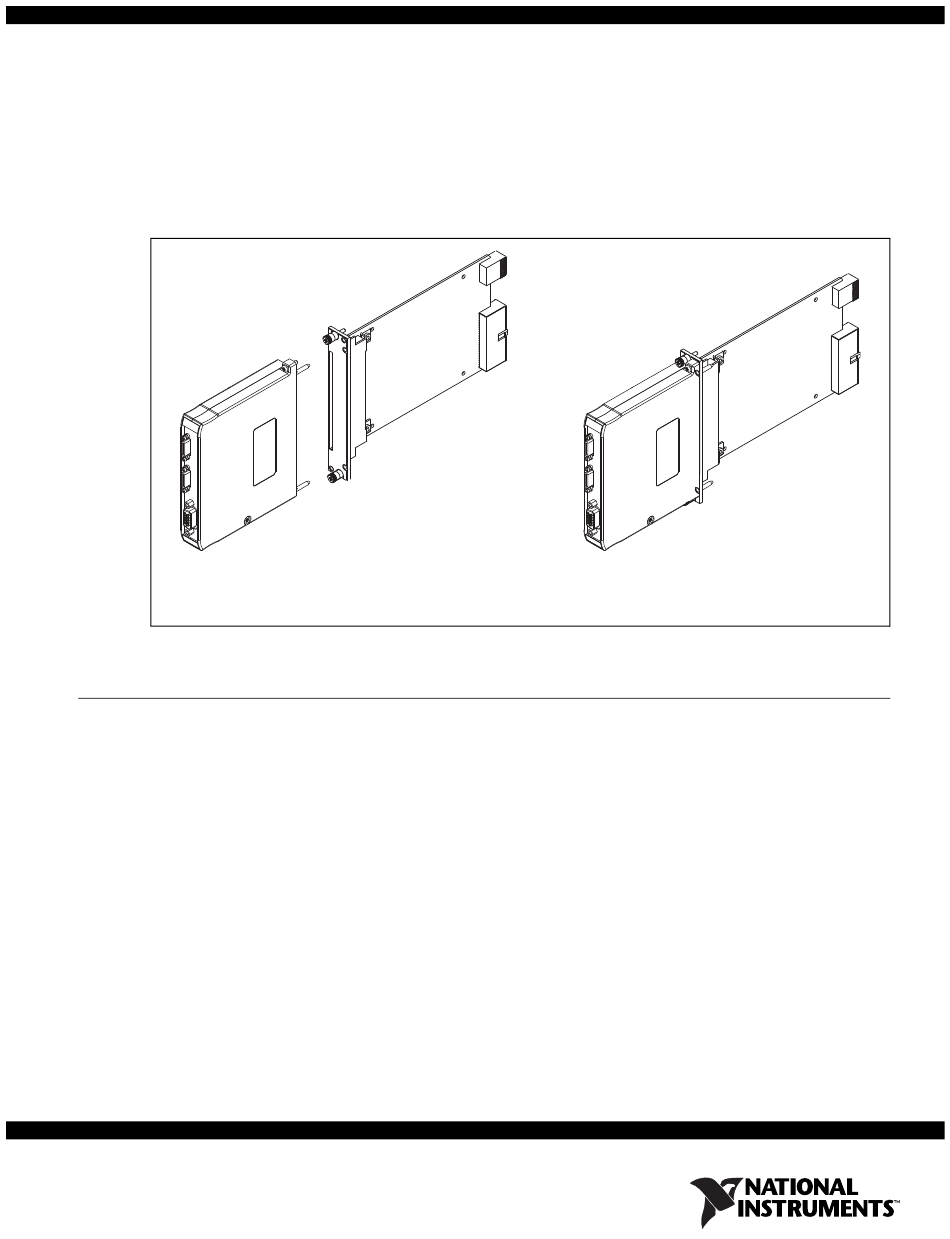

Figure 1. NI 1483R
for information about software support.
NI 1483R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1483R and is the answer not in the manual?

Questions and answers

Summary of Contents for National Instruments 1483R

  • Page 1 NI FlexRIO FPGA module and an NI FlexRIO adapter module (NI 1483). This document explains how to install and configure the NI 1483R, how to acquire images using a LabVIEW FPGA example VI, and lists the specifications for the NI 1483.
  • Page 2 This section describes how to unpack and install the NI FlexRIO FPGA module and the NI 1483. Note You must install the software before installing the hardware. For software installation information, refer to Step 1. Install Application Software and Driver. NI 1483R User Guide and Specifications ni.com...
  • Page 3 Never touch the exposed pins of connectors. Remove the device from the package and inspect the devices for loose components or any other sign of damage. Notify National Instruments if the device appears damaged in any way. Do not install a damaged device into the chassis.
  • Page 4 PXIe NI FlexRIO FPGA modules are compatible with PXI Express slots and PXI Express Hybrid slots. National Instruments does not recommend using NI FlexRIO FPGA modules in PXI Express System Timing slots because the boards do not have timing features.
  • Page 5: Step 3. Connect Signals

    X(2)– X(2)+ XCLK– XCLK+ X(3)– X(3)+ SerTC+ SerTC– SerTFG– SerTFG+ CC(1)– CC(1)+ CC(2)+ CC(2)– CC(3)– CC(3)+ CC(4)+ CC(4)– DGND DGND Figure 5. NI 1483 Base Configuration SDR Connector Pin Assignments © National Instruments Corporation NI 1483R User Guide and Specifications...
  • Page 6 Z<3..0>± Full configuration data and enable signals from the camera to the NI 1483. ZCLK± Transmission clock on the Full configuration chip for Camera Link communication between the NI 1483 and the camera. NI 1483R User Guide and Specifications ni.com...
  • Page 7: D-Sub Connector

    Iso Input 0– Isolated reference. Iso Input 1– Phase A– Quadrature encoder Phase A negative connection for differential signals. Digital Ground Direct connection to digital ground on the NI 1483. No connection. © National Instruments Corporation NI 1483R User Guide and Specifications...
  • Page 8: Connectivity Options

    Connectivity Options National Instruments recommends that you use the following cables to connect your camera to the 26-pin SDR connectors on the NI 1483: • MDR to SDR Camera Link cable (part number 199745A-05) • SDR to SDR Camera Link cable (part number 199746A-05)
  • Page 9 Module Enabled is not lit, verify the NI 1483 adapter module is properly connected to the NI FlexRIO FPGA module. If Initalized is not lit, verify the camera is properly connected and powered on. © National Instruments Corporation NI 1483R User Guide and Specifications...
  • Page 10 Set the Implementation to Block Memory • Set the Data Type to U16. 15. Click OK. 16. Under the FPGA target for your device, double-click 1-Tap 10-Bit Camera with Frame Trigger and Threshold (FPGA).vi. NI 1483R User Guide and Specifications ni.com...
  • Page 11 Select FIFO»Pixel Data 16. Right-click one of the Pixel Data 16 nodes, and select Select Method»Status»Get Number of Elements to Read. Right-click the other Pixel Data 16 node, and select Select Method»Read. © National Instruments Corporation NI 1483R User Guide and Specifications...
  • Page 12 Value?, and Threshold.Replacement Value. Create controls for each new element. Figure 9. Send Software Triggers Loop 28. Save the VI. 29. Run the VI as before, adjusting the threshold controls to achieve the desired results. NI 1483R User Guide and Specifications ni.com...
  • Page 13 Refer to the NI FlexRIO Adapter Module Support Help topic of the LabVIEW Help for information regarding NI FlexRIO CLIP, configuring the NI 1483 with a socketed CLIP, and a list of available socketed CLIP and provided signals. © National Instruments Corporation NI 1483R User Guide and Specifications...
  • Page 14: Specifications

    Input ON voltage..........3.5 to 30 V Input OFF voltage ..........0 to 2 V Turn-on current ............7.1 mA (typical) 14 mA (maximum) Maximum pulse rate ..........100 kHz Minimum pulse detected........10 μs Reverse polarity protection ........Yes, –30 V NI 1483R User Guide and Specifications ni.com...
  • Page 15: Serial Interface

    Tested in accordance with IEC-60068-2-56 Altitude ..............2,000 m at 25 °C ambient temperature Pollution Degree ............2 This value corresponds to the serialized Camera Link cable transmission rate of 140 to 595 MHz. © National Instruments Corporation NI 1483R User Guide and Specifications...
  • Page 16: Shock And Vibration

    For the standards applied to assess the EMC of this product, refer to the Online Product Certification section. Note For EMC compliance, operate this device with shielded cables and according to the documentation. NI 1483R User Guide and Specifications ni.com...
  • Page 17: Environmental Management

    At the end of the product life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/weee...
  • Page 18: Additional Resources

    National Instruments corporate headquarters is located at 11500 North Mopac Expressway, Austin, Texas, 78759-3504. National Instruments also has offices located around the world to help address your support needs. For telephone support in the United States, create your service request at ni.com/...
  • Page 19 For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. Refer to the Export Compliance Information at ni.com/legal/ export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.
