5. Installation and assembly
Important: The specified shortening lengths take into account the necessary fit of the profile seal. The
inlet module and the intermediate piece cannot be shortened at will.

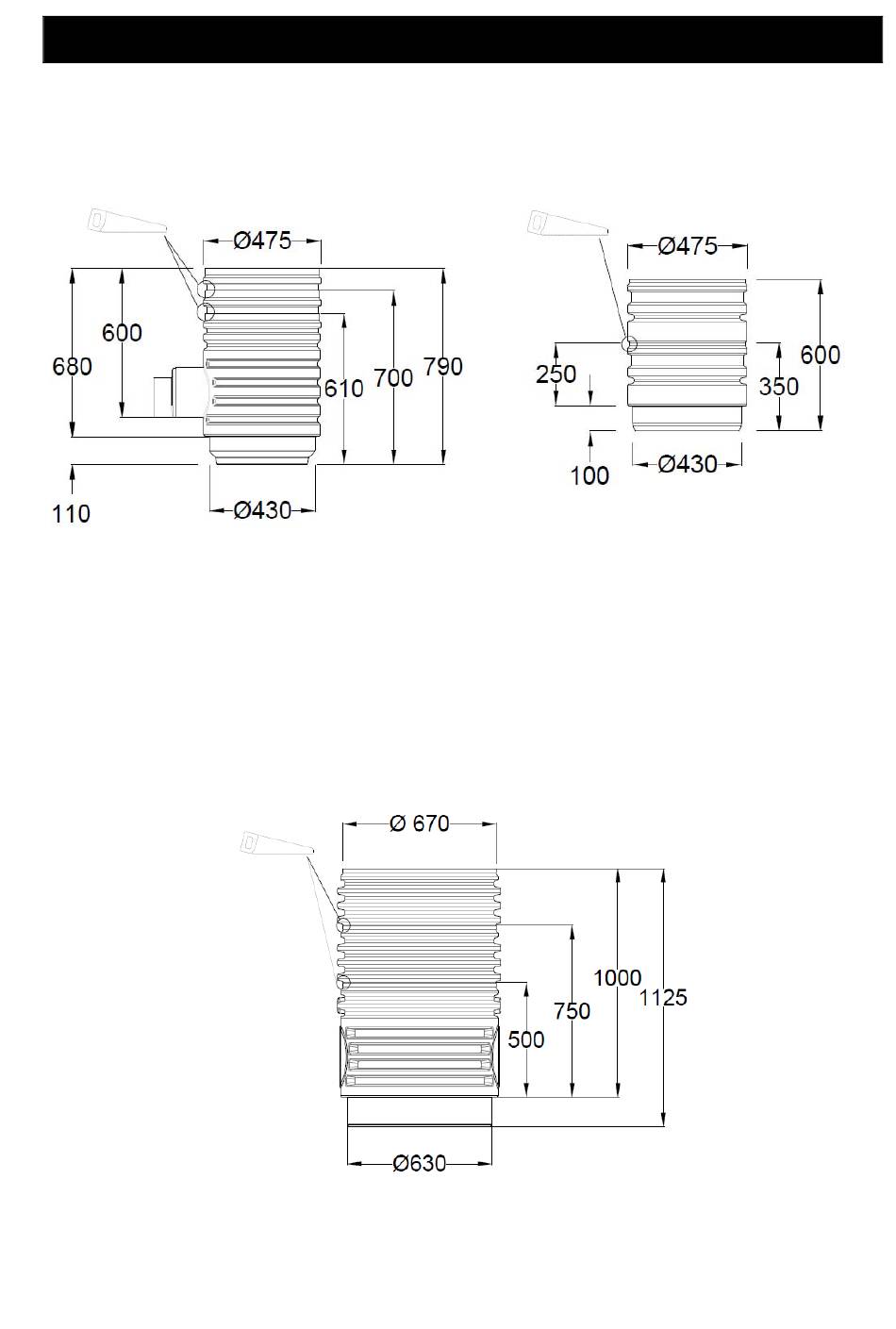

VS inlet module DN 400 VS intermediate piece DN 400
330339 330341
Effective length: 500/ 590/ 680 mm Effective length: 250/ 500 mm

5.3.2 Shorten VS intermediate piece 1000 DN 600

The required installation depth can be achieved by shortening the intermediate piece 1000 DN 600.
Important: The specified shortening lengths take into account the necessary fit of the profile seal. The
intermediate piece cannot be shortened at will.
VS intermediate piece 1000 DN 600
371015/ 371016
Effective length: 500/ 750/ 1000 mm
24 / 56
