PLEASE RETAIN

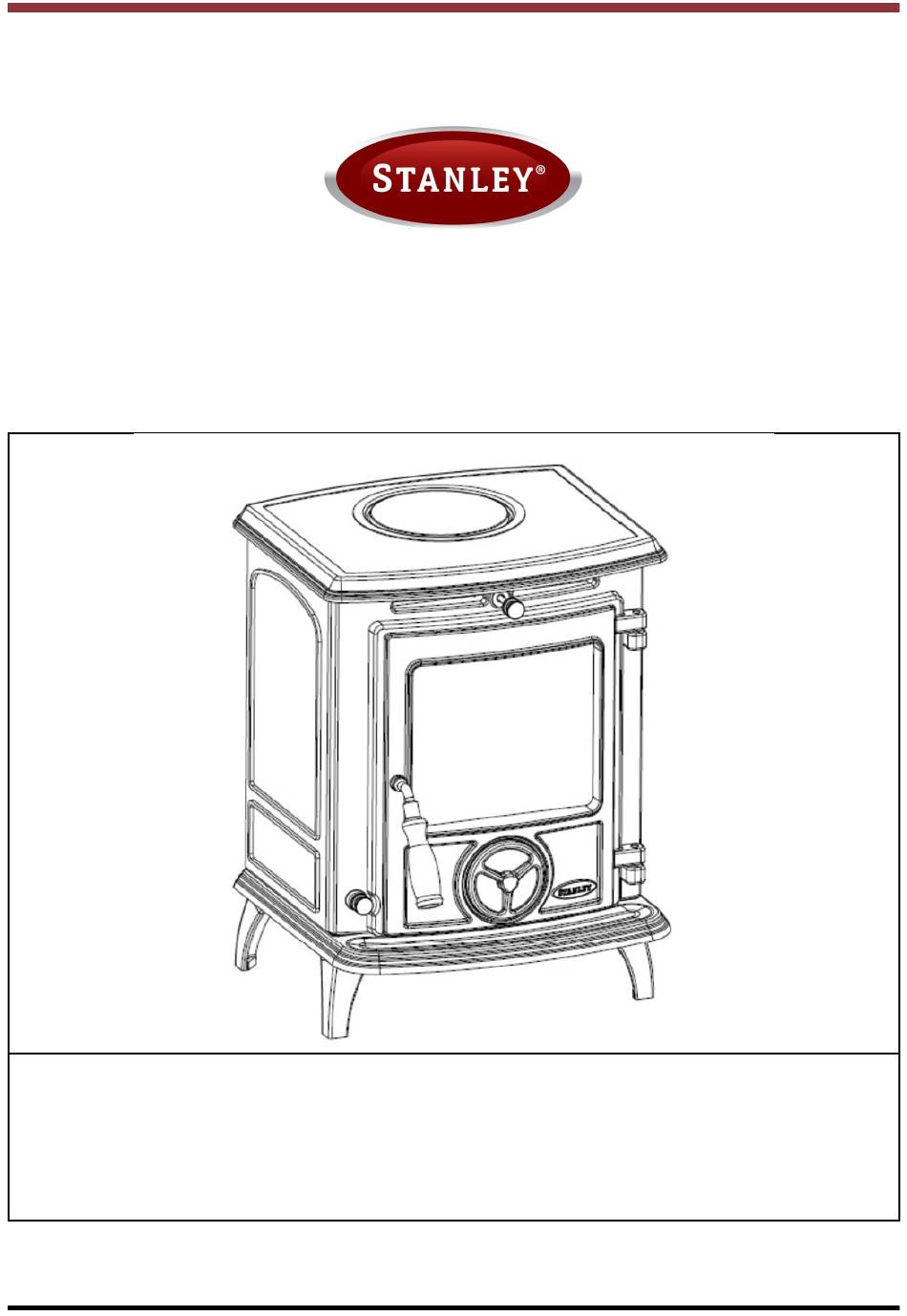

Oisin Eco
Solid Fuel Stove
This appliance is hot while in operation and retains its heat for a long period of time after use.
Children, aged or infirm persons should be supervised at all times and should not be allowed to touch
the hot working surfaces while in use or until the appliance has thoroughly cooled.
When using the boiler stove in situations where children, aged and/or infirm persons are present a
fireguard must be used to prevent accidental contact with the stove. The fireguard should be
manufactured in accordance with BS 8423:2010.
INSTALLATION AND OPERATING INSTRUCTIONS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stanley Oisin Eco
Summary of Contents for Stanley Oisin Eco
- Page 1 PLEASE RETAIN Oisin Eco Solid Fuel Stove This appliance is hot while in operation and retains its heat for a long period of time after use. Children, aged or infirm persons should be supervised at all times and should not be allowed to touch the hot working surfaces while in use or until the appliance has thoroughly cooled.
-
Page 2: Table Of Contents
Stanley Solid Fuel Stove Warranty ........ - Page 3 THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area.
-
Page 4: Stanley Solid Fuel Stove Warranty
All warranty claims must be reported to the Waterford Stanley Service Department and must be submitted with the prod- uct serial number (located on the front casting), date of purchase, proof of purchase (if requested) and details of the specific nature of the problem. -
Page 5: Installation Checklist
INSTALLATION CHECK LIST Tick Flue System 1. Minimum Flue Height of 4.6 metres (15 feet). 2. Appliance should be connected to a minimum of 1.8 metres (6 feet) of 150mm (6”) flue pipe. 3. The horizontal flue run should not exceed 150mm (6”) 4. -
Page 6: Important Operation/ Maintenance Notes
IMPORTANT OPERATION / MAINTENANCE NOTES Now that your Stanley Solid Fuel Stove is installed and no doubt you are looking forward to many comforts it will provide, we would like to give you some tips on how to get the best results from your stove. -
Page 7: Installation & Operating Instructions
THE OISIN SOLID FUEL NON BOILER STOVE INSTALLATION & OPERATING INSTRUCTIONS GENERAL Please refer to the current standards, BS EN 15287- 1:2007 Design, Installation and Commissioning of When installing, operating and maintaining your chimneys. Oisin Stove respect basic standards of fire safety. Read these instructions carefully before commenc- ing the installation. -
Page 8: Chimney
CHIMNEY TOP FLUE EXIT The Oisin must be connected to a chimney of the For the top outlet configuration, remove the blank- proper size and type. The chimney must have a ing plate from the hob, remove the flue spigot from diameter of at least 150mm. -
Page 9: Recommended Flue Terminal Position
RECOMMENDED FLUE TERMINAL POSITION Fig.5... -
Page 10: External Ducted Air
EXTERNAL DUCTED AIR should be such that the vent is dimensionally stable, As the Oisin Eco takes secondary air from the room corrosion resistant, and no provision for closure. through the air inlets over the door the product is not The effective free area of any vent should be ascer- recommended for use with external ducted air. -
Page 11: Clearance To Combustibles
WARNING: DO NOT OBSTRUCT THE PRI- DHW Boiler. MARY AIR SUPPLY TO THE SPIN VALVE AT The Oisin Eco is not recommended for use with the THE FRONT OF THE STOVE. dhw boiler that was previously used on Oisin stoves. COMMISSIONING & HANDOVER... -
Page 12: Stove Dimensions
STOVE DIMENSIONS Note: Dimensions stated are in millimetres and may be subject to a slight +/- variation. TECHNICAL DATA Parameter Units Smokeless Wood Mineral Fuel Typical refuel interval - nominal outputs: h 1.05 0.83 Total efficiency 81.5 81.4 Nominal heat output Mean CO emission (at 13 % O2) 0.07 0.09... -
Page 13: Air Controls
AIR CONTROLS Secondary air control Primary air control The secondary air control is located over the door, The spin valve, located in the door, controls the pri- this controls the secondary air / window wash air- mary air supply to the stove. For maximum heat out- supply to the stove. -
Page 14: Refuelling
RE-FUELLING ON TO A LOW FIREBED Fig.9 If there is insufficient burning material in the firebed to light a new fuel charge, excessive smoke can occur. Refueling must be carried out on to a suffi- cient quantity of glowing embers that will allow the new fuel charge ignite in a reasonable period. -
Page 15: Glass Cleaning
GLASS CLEANING CHANGING THE ROPE SEALS The stove glass will self-clean when there is suffi- The rope seal between the door & the front casting cient heat generated by the burning fuel i.e. when will compress & harden over time and whilst small the unit is operated at the maximum air settings. -
Page 16: Fire Safety
FIRE SAFETY CO ALARM The fitting of CO Alarms in the same room as the To provide reasonable fire safety, the following appliance is a compulsory requirement under cur- should be given serious consideration. rent Building Regulations. For ROI an additional CO Alarm must be fitted either inside each bedroom or 1. -
Page 17: Exploded View
OISIN SF NB ECO EXPLODED VIEW... - Page 19 NOTES...
- Page 20 Manufactured by Waterford Stanley Ltd., Unit 401-403, IDA Industrial Estate, Cork Road, Waterford, Ireland. Tel: (051) 302300 Fax (051) 302315 Rev:0010 NH 161120 Item No: N00002AXX...
