CREE LIGHTING Stylus Series Installation Instructions Manual page 2

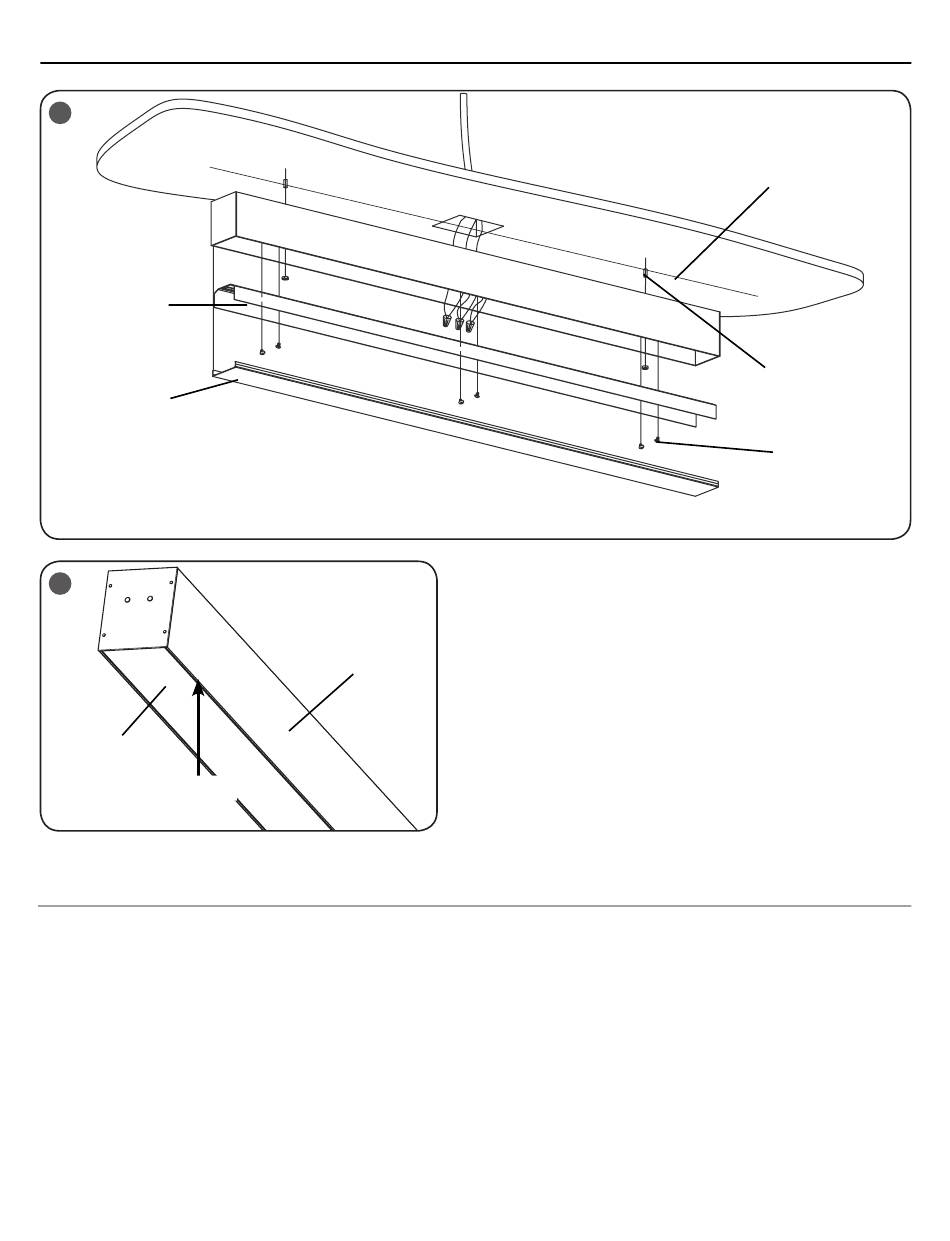

TO INSTALL:
1
LED Reflector
Tray
Lens
2
Lens
Slide Plastic Card
or Putty Knife Here
SECTION 1:
SURFACE MOUNTING-INDIVIDUAL LUMINAIRE
CAUTION: Luminaires should be secured
to structure above to support weight of
luminaire.
STEP 1:
Remove lens and LED/reflector tray and set
aside in order of run placement for reinstalling
later. To remove lens, carefully slide a plastic
card or putty knife between the lens and
extrusion towards the end of the luminaire.
Using the plastic card or putty knife, push the
lens inward until the lens comes free. See
Figure 1 and 2.
STEP 2:
After removing the lens, remove the Phillips
head reflector screws, remove the LED
Reflector Tray, and disconnect the LED
2 of 6
Extrusion
harness. Set lens and LED Reflector tray
aside. See Figure 1.
STEP 3:
Use the luminaire as a template to locate the
mounting holes by centering luminaire over
recessed switch box. Keep the switch box square
to and on center lengthwise, mark each mounting
anchors hole location, See Figure 2. Ensure that
all mounting points are on the same center line
as the switch box installed. Drill appropriate holes
for mounting surface and fasteners to be used.
Securely attach housing to ceiling: See Figure 1.
NOTE: Pre-drilled diameter 5/8" mounting
anchor holes are located 2.13" from the end
of each luminaire. See Figure 3 on the next
page.
Chalk Line
Fasteners
(Supplied By Others)
Fasteners
STEP 4:
Using the 1.5" diameter hole located in the
center of the luminaire, route the electrical
leads out into customer supplied junction box
and make electrical connections per Section 3
"Electrical Connections".
STEP 5:
Reconnect LED harness. Replace LED trays
and lens that was removed in Step 1 & 2
above, ensure that no wires are pinched.
LPN00644X0007A0_A
