CREE LIGHTING CONNECTED MAX Quick Start Manual

Smart tape light strip
Hide thumbs Also See for CONNECTED MAX:

Advertisement

Quick Links

Download this manual
SMART TAPE LIGHT STRIP
QUICK START GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONNECTED MAX and is the answer not in the manual?

Questions and answers

Related Manuals for CREE LIGHTING CONNECTED MAX

Summary of Contents for CREE LIGHTING CONNECTED MAX

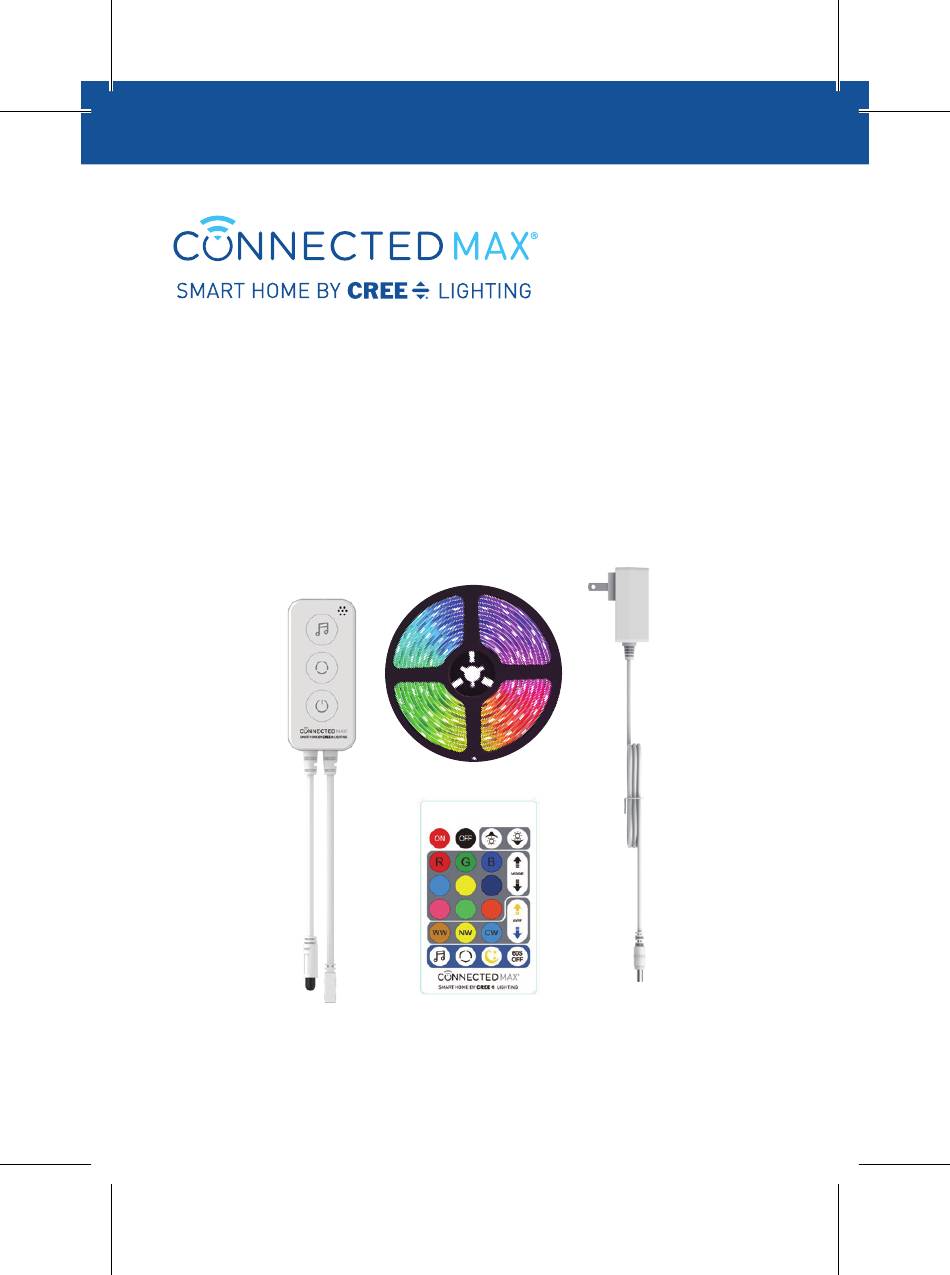

  • Page 1 SMART TAPE LIGHT STRIP QUICK START GUIDE...

  • Page 2: What's In The Box

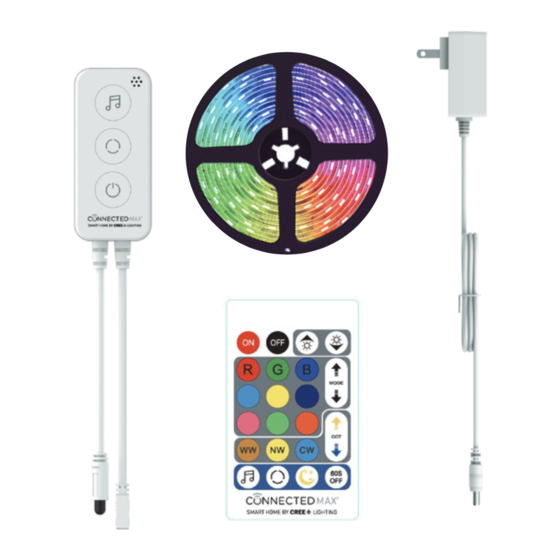

    What's in the box Please consult this checklist for all parts. Power Adapter Controller 6.5 Foot Tape light IR Remote Connector Adhesive Pads Manual...
  • Page 3 Description Power Port for Wall Plug Microphone Tape Light Connector Music/Color Rhythm Color Change IR Antenna (Receives signal from IR remote, within a 90° radius) On/Off 90° Working voltage: DC12/24V Current: 2Ax 3CH Max load: 12V/36W; 24V/72W Product size: L77 x W35 x H17mm Working environment: Indoor Working temperature:...

  • Page 4: Power Connection

    Power Connection Step 1: Connect Tape Light Strip to Controller The white arrow on the Controller must align with the “+12V” text printed on the Tape Light Strip Step 2: Connect Power Adapter to Controller Step 3: Plug Power Adapter into wall outlet...
  • Page 5 Attach your Tape Lights Clean the surface with a Peal off the backing wet, damp cloth. Surface strip from the must be dry and free of adhesive. dirt or oils. Place the Tape Connect the Tape Light Strip where Light Strip into the you want, and Controller and Wall gently press down...
  • Page 6 Tape Light Strip to the “+” sign on the Connector. Close hinged Connector securely. Repeat for the other end. Use the supplied Adhesive Pads to secure the Connector to the mounting area. Link up to 32 feet with the Cree Lighting Connected Max Tape Light Extension Kit.
  • Page 7 Tape Light Strip Control Adjust with Controller Click On / Off Static / Dynamic mode Music / Color Rhythm Adjust with IR Remote Brightness On / Off Changing Point the IR Remote at the IR Antenna to control. Mode Changing Color Changing Changing...
  • Page 8 Download App (Android) Pairing to your network The Connected Max Smart Tape Light Strip must pair to a 2.4GHz Wi-Fi network. Once paired, you can control on any Wi-Fi or cellular network. For most users, pairing will be quick and simple. But depending on the type of wireless router you have, you may need a little more information to get started.
  • Page 9 Lighting App, click "Sign Up", read the "User Agreement Privacy Policy" and click "Agree." Plug the Cree Lighting Connected Max Smart Tape Light Strip you want to pair into a wall outlet and press the power button. The Tape Light Strip should start slowly flashing to indicate pairing mode.
  • Page 10 Pairing with the App In the Cree lighting app, tap the “+ ” The Tape Light Strip you are pairing sign in the upper right-hand corner will appear on screen, tap “Next.” of the Home screen.
  • Page 11 Pairing with the App The Wi-Fi network your phone is The Cree Lighting app will add your connected to will appear. You can Tape Light Strip. change your network to a 2.4 GHz network if needed and enter password.
  • Page 12 Pairing with the App Once added, you can rename your Tape Light Strip by tapping the pencil icon next to the name – then click “Done.” Safety Information CERTIFIED TO UL STD153 CERTIFIED TO CSA STD C22.2#250.4 Only connect to adjacent units Tout est connecté...

  • Page 13: Safety Information

    Safety Information IMPORTANT PRODUCT INFORMATION SAFETY INFORMATION: FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE. This device is not intended for underwater use. To protect against electric shock, do not intentionally submerge or immerse your device, battery, or adapter in water or expose your device or adapter to other liquids.
  • Page 14 Safety Information Changes or modifications not expressly approved could void your authority to use this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
