CREE LIGHTING SMK-CR14 Installation Instructions

CREE LIGHTING SMK-CR14 Installation Instructions

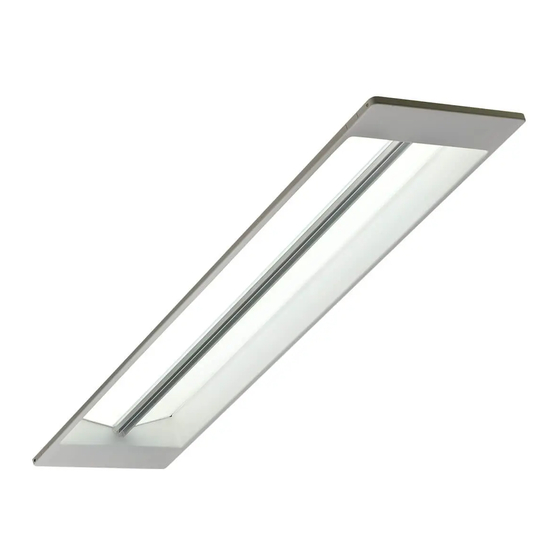

Specification troffers

Advertisement

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your local electrical code.
If you are not familiar with these codes and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local. Si vous
n'êtes pas familier avec ces codes et ces exigences, veuillez contacter un électricien
qualifié.
3.
Do not install insulation within 3 inches (76 mm) of any part of the luminaire.
Ne pas mettre l'isolant a moins de 76 mm (3 po) de toute partie du luminaire.
4.
Access above ceiling required.
Acces requis au-dessus du plafond.
5.
Suitable for Damp Locations.
Convient aux emplacements humides.
6.
Suitable for suspended ceilings.
Convient aux plafonds suspendus.
SAVE THESE INSTRUCTIONS FOR FUTURE
• The Surface Mount Kit is designed for use with CR Series Troffers for surface or
suspended mounting.
• The following are not provided: conduit, cable, fittings, terminal blocks and wire connectors.

TO INSTALL:

1
Cable Mount
Knockouts (4)
ø 0.25"
"
6
Pendant Mount
Electrical
Knockouts (2)
Knockouts (7)
ø 0.68"
ø 0.88"
2
Troffer
1 of 2
REFERENCE
Mounting
Holes (10)
ø 0.13"
"
36.25
Wire-tie loops
for internal wire
management (4)
0.82" W x 0.25" H
3
Inside Edge
of Housing
SMK-CR14
SMK-CR22
SMK-CR24
Grounding
Studs (2)
"
6
Stand-O
Loop (2)
1.32" W x 0.50" H
S-Hook
Knockouts (4)
0.60" W x 0.30" H
Specification Troffers
Includes: SMK-CR14, SMK-CR22 and SMK-CR24
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
INSTALL BASE HOUSING ON TO
SURFACE OR SUSPEND FROM CHAIN:
STEP 1:

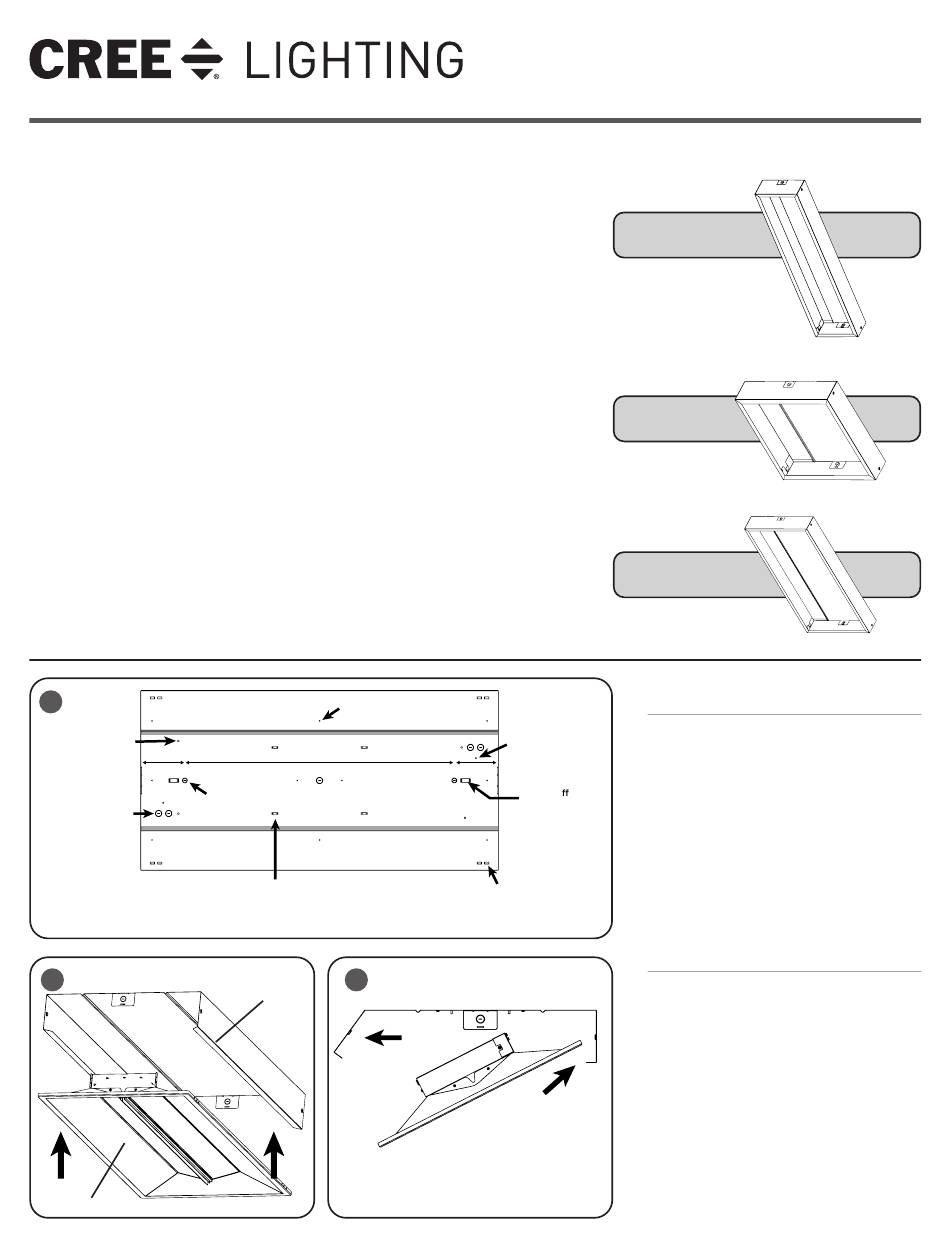

For all mounting features and wiring access
points see Figure 1.
NOTE: Distance between the two Pendant Mount
Knockouts for SMK-CR24 and SMK-CR14 is
36.25", and 6" from each edge. The distance
between the two Pendant Mount Knockouts for
SMK-CR22 is 15", and 5" from each edge.
STEP 2:
Attach ground wire lead to grounding stud of
your choice using included ground nut.
INSTALL CR SERIES TROFFER INTO
BASE HOUSING:
STEP 1:
Place one edge of CR Series Troffer on inside
edge of housing. See Figure 2.
STEP 2:
Pull housing side wall outward. Rotate troffer
into housing. See Figure 3.
STEP 3:
Route all AC wires through knockouts and
attach to CR Series Troffer leads as indicated
in the installation instructions included with
the CR Series Troffers. Dress wires using
zip-ties (not provided) through loops where
indicated above.
SMK
