CREE LIGHTING SmartCast Touchscreen Control Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed including the following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation avant
l'installation.
2. Must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre
code électrique local. Si vous n'êtes pas familier avec ces
codes et ces exigences, veuillez contacter un électricien
qualifié.
3. Indoor use only.
Pour usage interieur seulement.
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
SMARTCAST TOUCHSCREEN
®
CONTROL KIT INCLUDES:
• (1)- Tablet
• (1)- 90 degree USB-C to
USB-C cable
• (1) - Wall-mount kit
• (1)- Recessed wall box
• (1)- Battery modulator
1
Wall-Mount Kit
1 of 2
REQUIRED BY CUSTOMER:
• 120V outlet
• Single gang wall plate
Recessed Wall Box
SmartCast

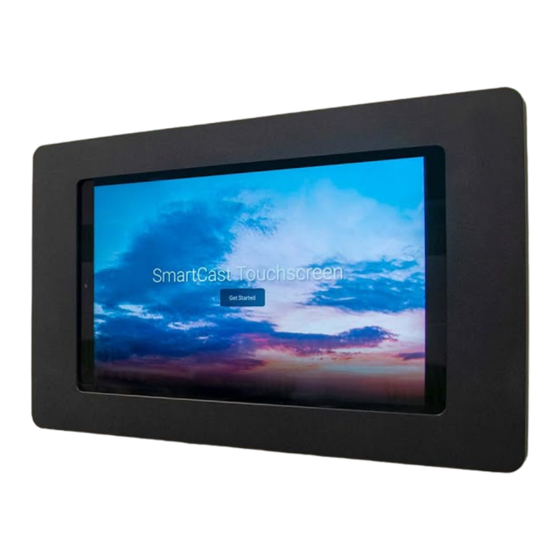

SmartCast Touchscreen Control with Dynamic Lighting
®
Wall-Mount Kit, Recessed
Wall Box, & Battery
Module
Tablet
Battery
Modulator
Touchscreen Control
®
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
Installation of the provided recessed wall
box, battery modulator, and wall-mount kit
are required to complete the installation of
the SmartCast Touchscreen Control.
®
See Figure 1.
LPN00657X0001A0_B
