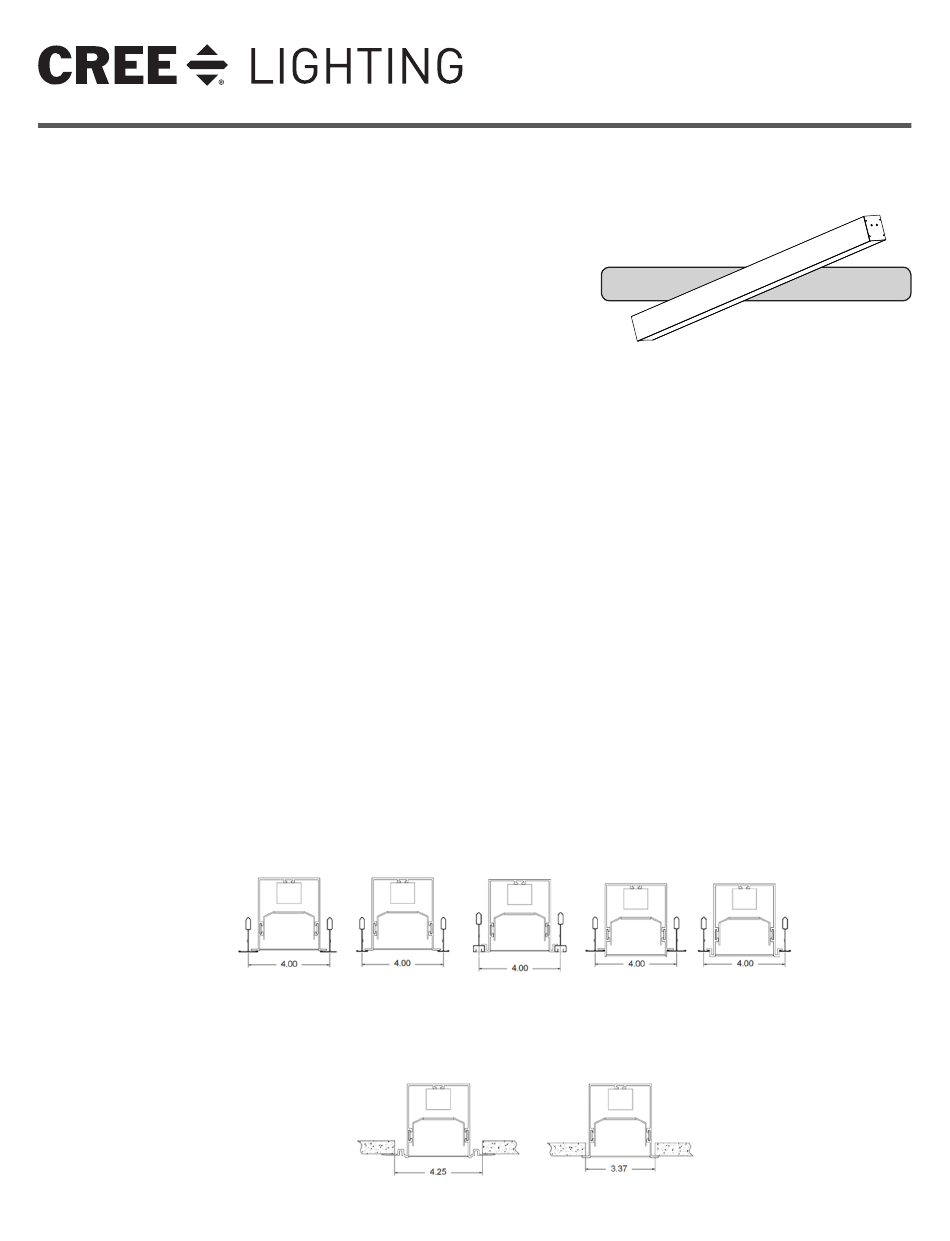

CREE LIGHTING Stylus Series Installation Instructions Manual

Advertisement

Quick Links

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL
SAFETY INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique
local. Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez
contacter un électricien qualifié.
3.
SUITABLE FOR CONTINUOUS ROW MOUNTING.
PEUT ÊTRE MONTÉ EN RANGÉE CONTINUE.
4.
Suitable for Damp Locations.
Convient aux emplacements humides.
5.
MIN. 90C SUPPLY CONDUCTORS.
LES FILS D'ALIMENTATION 90C MIN.
6.
INHERENTLY PROTECTED.
7.
TYPE IC. VAPOR BARRIER MUST BE SUITABLE FOR 90C.
TYPE IC. LE PARE-VAPEUR DOIT CONVENIR POUR 90 °C.
PROTECTION INHERENTE.
8.
Make sure the equipment is properly grounded.
9.
Always de-energize the circuit and/or equipment before connecting to, disconnecting
from or servicing the equipment
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
NOTES:
• CAUTION - It is the installers responsibility to ensure that ceiling is structurally capable of supporting the weight of luminaire/luminaire row.
• Endcap kits and joining hardware are packaged separately for continuous rows.
• To Prevent Luminaire Row From Over-Current: By adding the input current of each luminaire section marked on the luminaire, the total current per
power feed must not exceed the maximum line wire amperage rating in the luminaire and the power feed cord/wire amperage rating whichever is
least.
1 of 8
1" T-bar
9/16" T-bar
Flush Ceiling Tile
Flush Ceiling Tile
Hard Ceiling
Flangeless
Installation Instructions are divided into
5 sections:
1. On Grid Mounting - Individual Recessed
Mounting
2. On Grid Mounting - Continuous Row Recessed
Mounting
3. Off Grid Mounting (Hard Ceiling) - Individual
Recessed Mounting
4. Off Grid Mounting (Hard Ceiling) - Continuous
Row Recessed Mounting
5. Electrical Connections
ON GRID MOUNTING
1" T-bar
Screw Slot
Tegular Tile
T-bar
OFF GRID MOUNTING
Hard Ceiling
Overlap Flange
Stylus Series
LED Ambient Luminaire
Recessed Mount
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
9/16" T-bar
Tegular Tile
LPN00644X0007A0_A
