This user's guide describes the characteristics, operation, and use of the TPA3220 Evaluation Module
Micro. A complete printed-circuit board (PCB) description, schematic diagram, and bill of materials (BOM)
are also included.
SLAU756 – January 2018
Submit Documentation Feedback
ADVANCE INFORMATION
TPA3220 Evaluation Module Micro
Copyright © 2018, Texas Instruments Incorporated
User's Guide
SLAU756 – January 2018
TPA3220 Evaluation Module Micro
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPA3220
Summary of Contents for Texas Instruments TPA3220
- Page 1 User's Guide SLAU756 – January 2018 TPA3220 Evaluation Module Micro This user's guide describes the characteristics, operation, and use of the TPA3220 Evaluation Module Micro. A complete printed-circuit board (PCB) description, schematic diagram, and bill of materials (BOM) are also included.
-
Page 2: Table Of Contents
AIB Connector (J3) Pinout ......................Bill of Materials Trademarks CoilCraft is a trademark of CoilCraft, Inc. All other trademarks are the property of their respective owners. TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 3: Quick Start (Btl Mode)
Two 2–8 Ω speaker or resistor loads (ensure speaker or load is appropriately sized for required wattage output) • Four 12–20 AWG wires • One XLR to 3.5-mm audio jack • Analog output audio source SLAU756 – January 2018 TPA3220 Evaluation Module Micro Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 4: Evm Board (Top Side)
HEAD = Populate R27, Remove R29 AD = Remove R27, Populate R29 R22, R26 PBTL or BTL Select Remove RESET Control RESET FREQ_ADJ MASTER MODE = 480kHz TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 5: Setup By Mode
1. Ensure the power supply is OFF. Connect the positive terminal of the power supply to J6 PVDD and negative terminal to J6 GND. 2. Connect one channel speaker, power resistor load (2–8 Ω) to the TPA3220EVM-Micro positive output SLAU756 – January 2018 TPA3220 Evaluation Module Micro Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 6: Jumper And Switch Configurations (Pbtl Mode)
4. Enable audio input playback and the EVM should begin driving audio out of the left and right speakers. If resistor loads are used for testing instead of speakers, they will now be energized. TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 7: Hardware Configuration
Indicator Overview (CLIP_OTW and FAULT) The TPA3220EVM-Micro is equipped with LED indicators that illuminate when the FAULT or CLIP_OTW pin goes low. See Table 3 TPA3220 100-W Peak HD-Audio, Analog-Input, Class-D for more details. Table 3. Fault and Clip Overtemperature Status FAULT LED... -
Page 8: Head And Ad Mode Selection
J7 and J8 puts the TPA3220 into BTL mode (2 × stereo outputs). Tying the IN2_M and IN2_P pins to GND by populating R22 and R26 puts the TPA3220 into PBTL mode (1 × mono output). This is summarized in Table Table 6. -
Page 9: Default Mode Configuration
This power mode is the default setup when the board is tested and shipped. The user can connect any valid supply voltage to J1 and the onboard LDOs will generate the required non-PVDD voltages. PVDD itself always connects directly to the TPA3220 PVDD pins. Setup for this mode is the same as described Quick Start (BTL MODE) Table 8 shows how to configure the TPA3220EVM-Micro into this mode. -
Page 10: Non-5-V Supply Configuration
Populate 5 V to GVDD Connector Populate Buck Input Component Remove L4, C31, R38 Buck Output Components Remove Voltage Divider for RESET Remove TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Filter Frequency Response
This circuit, combined with the RESET switch (S1) help ensure that the TPA3220 can be placed in reset easily, as needed, or automatically if there is a power supply issue. -
Page 12: Aib Connector (J3) Pinout
Speaker-level output from audio class-D EVM (SE or one side of BTL) Amp Out D Speaker-level output from audio class-D EVM (SE or one side of BTL) TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 13: Evm Design Documents

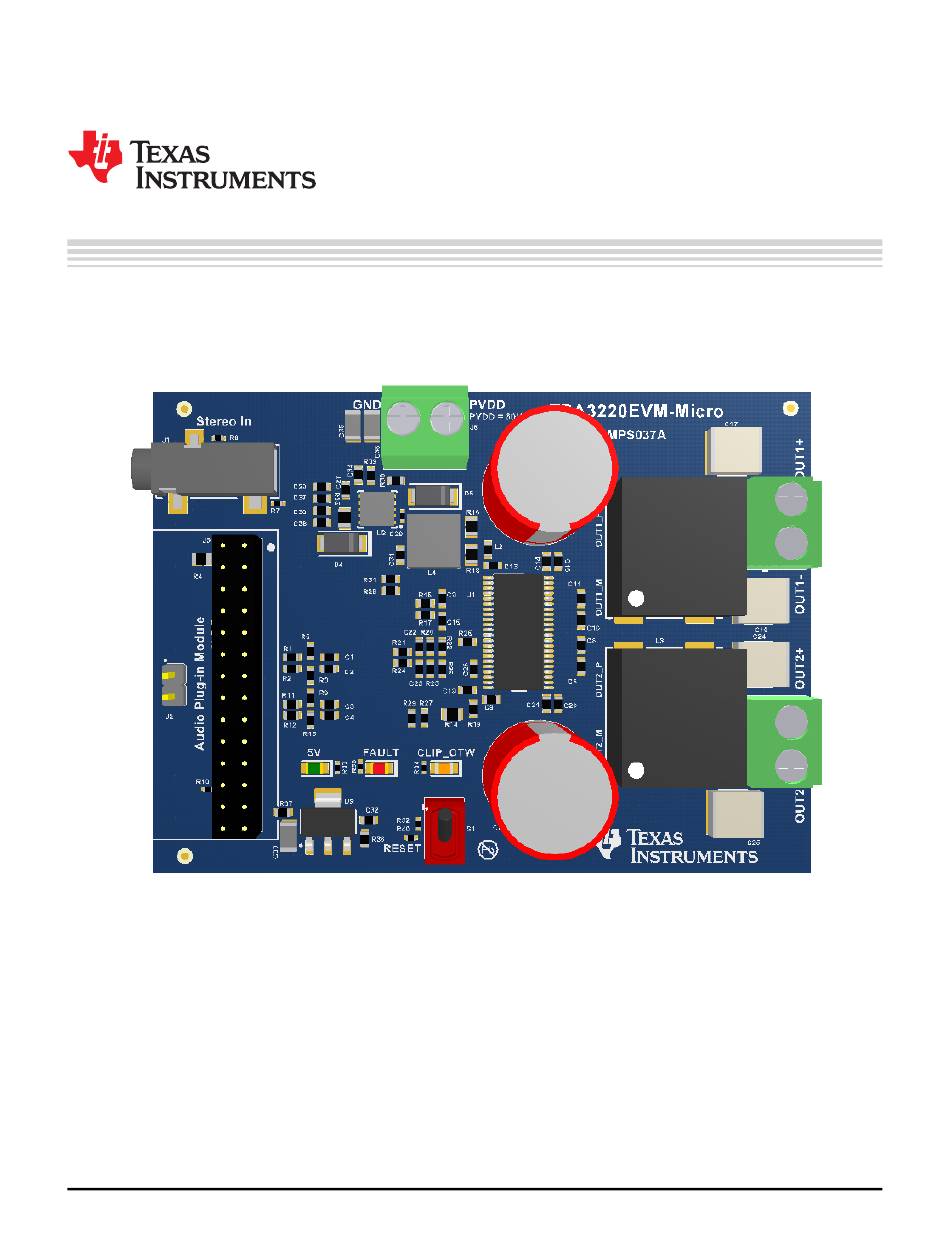

TPA3220EVM-Micro Board Layouts Figure 6 Figure 7 illustrate the EVM board layouts. Figure 6. TPA3220EVM-Micro Top Composite Assembly Figure 7. TPA3220EVM-Micro Bottom Composite Assembly SLAU756 – January 2018 TPA3220 Evaluation Module Micro Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 14: Tpa3220Evm-Micro Board Dimensions
EVM Design Documents www.ti.com TPA3220EVM-Micro Board Layouts Figure 8 shows the EVM board dimensions. Image shown is not actual scale. Figure 8. TPA3220EVM-Micro Board Dimensions TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 15: Schematic And Bill Of Materials
IN2P 10.0k IN2+_AIB IN2-_AIB TO DUT IN2M Copyright © 2018, Texas Instruments Incorporated Copyright © 2018, Texas Instruments Incorporated Figure 9. TPA3220EVM-MICRO Schematic 1 SLAU756 – January 2018 TPA3220 Evaluation Module Micro Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Tpa3220Evm-Micro Schematic 2
ISEN 10uF PVDD TLV1117-33IDCY 100uF 0.022uF SGND 1.00k LM5010ASD/NOPB 10uF 10uF 0.1uF Copyright © 2018, Texas Instruments Incorporated Figure 10. TPA3220EVM-MICRO Schematic 2 TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 17: Bill Of Materials
R3, R5, R9, R13 RES, 0, 5%, 0.1 W, 0603 0603 ERJ-3GEY0R00V Panasonic 1.00k RES, 1.00 k, 1%, 0.1 W, 0402 0402 ERJ-2RKF1001X Panasonic SLAU756 – January 2018 TPA3220 Evaluation Module Micro Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 18 R20, R22, R23, R26, R29 RES, 0, 5%, 0.1 W, 0603 0603 ERJ-3GEY0R00V Panasonic RES, 0, 5%, 0.063 W, 0402 0402 RC0402JR-070RL Yageo America TPA3220 Evaluation Module Micro SLAU756 – January 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
