This user's guide describes the operation of the evaluation module (TPA3250D2EVM) for the TPA3250D2
175-W Stereo/350-W mono peak power PurePath™ Ultra-HD Analog Input Pad Down Class-D Amplifier.
The user's guide also provides design information, which includes schematic, Bill of Material, and PCB
layout. For questions and support go to the E2E forums (e2e.ti.com).
The main contents of this document are:
•
Hardware descriptions and implementation
•
Design information
Related documents:
•
TPA3250D2 Data Sheet (SLASE99)
1
1.1
1.2
1.3
1.4
2
2.1
TPA3250D2EVM Setup
2.2
2.3
3
3.1
3.2
3.3
4
4.1
4.2
4.3
4.4
1
2
3
4
5
TPA3250D2EVM Board Dimension
6
TPA3250D2EVM Schematic
1
2
3
4
Bill of Materials
PurePath is a trademark of Texas Instruments.
SLVUAM9 - December 2015
Submit Documentation Feedback
..........................................................................................................
........................................................................................
..............................................................................
.....................................................................................................
............................................................................................
...........................................................................................
...............................................................................
................................................................................
......................................................................................
.................................................................................
.............................................................................
....................................................................................................
.....................................................................................
.............................................................................................................
.............................................................................................
......................................................................................
..............................................................................................
................................................................................
...................................................................................
.........................................................................................................
.............................................................................................................
Copyright © 2015, Texas Instruments Incorporated
Contents
.........................................................
................................................
............................................................
......................................................................
........................................................................
List of Figures
.............................................................................
........................................................................
List of Tables
User's Guide
SLVUAM9 - December 2015
TPA3250D2EVM
TPA3250D2EVM
2
2
2
3
4
5
5
5
6
7
7
7
8
9
9
11
12
16
2
5
9
10
11
16
3
4
7
12
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPA3250D2EVM
Summary of Contents for Texas Instruments TPA3250D2EVM
-
Page 1: Table Of Contents
SLVUAM9 – December 2015 TPA3250D2EVM This user’s guide describes the operation of the evaluation module (TPA3250D2EVM) for the TPA3250D2 175-W Stereo/350-W mono peak power PurePath™ Ultra-HD Analog Input Pad Down Class-D Amplifier. The user’s guide also provides design information, which includes schematic, Bill of Material, and PCB layout. -
Page 2: Hardware Overview
TPA3250D2DDV operation with differential or single-ended input signals to the EVM with differential inputs yielding the optimal performance. TPA3250D2EVM is a complete 2Vrms analog input 175 W stereo/350 W mono peak power (90 W Stereo continuous into 8 Ω) amplifier ready for evaluation and excellent listening experience. -
Page 3: Tpa3250D2Evm Single-Ended And Differential Input
The TPA3250D2EVM supports both differential and single-ended inputs. For single-ended inputs, J4 and/or J19 jumpers are set to the SE position, so that the TPA3250D2EVM uses the NE5532 to convert the single-ended input signal to differential to properly drive the differential inputs of the TPA3250D2. The input RCA jack, J3, is used to provide INA and INB inputs and RCA jack J18 is used to provide INC and IND inputs with single-ended inputs. -
Page 4: Tpa3250D2Evm Clip Overtemperature And Fault Indicators
Hardware Overview www.ti.com TPA3250D2EVM Clip Overtemperature and Fault Indicators The TPA3250D2EVM is equipped with LED indicators that illuminate when the FAULT and/or CLIP_OTW pin goes low. See Table 2 and the TPA3250D2 data sheet (SLASE40) for more details. Table 2. Fault and Clip Overtemperature Status... -
Page 5: Tpa3250D2Evm Setup
TPA3250D2EVM Setup www.ti.com TPA3250D2EVM Setup This section describes the TPA3250D2EVM hardware setup and connection. TPA3250D2EVM Setup Figure 2 illustrates the TPA3250D2EVM connection. Figure 2. TPA3250D2EVM Connections Hardware Requirements The following hardware is required for this EVM: • TPA3250D2EVM (AIP025-001) •... -
Page 6: Hardware Default Setup Btl (2.0)
EVM is powered up correctly with jumpers in their default state. Start the media player of your choice and enjoy the enhanced audio performance TPA3250D2 provides as a quick check of the setup. TPA3250D2EVM SLVUAM9 – December 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 7: Using Tpa3250D2Evm In Different Output Configurations
Using TPA3250D2EVM in Different Output Configurations www.ti.com Using TPA3250D2EVM in Different Output Configurations The TPA3250D2EVM can be configured for four different output operations. The 2.0 BTL configuration is the default set up of the TPA3250D2EVM described in Section 2.3. The remaining three configurations are 2.1 BTL plus two single-ended (SE) outputs, 0.1 PBTL output, and 4.0 single-ended (SE) outputs. -
Page 8: Single-Ended (Se) Output (4.0) Operation
Design the power supply with margins that can deliver the needed power. In low- frequency applications additional bulk capacitance may be needed. Replacing the bulk capacitors on the TPA3250D2EVM with 3300 µF or more capacitance may be necessary, depending on the power supply used. -
Page 9: Board Layouts, Bill Of Materials, And Schematic

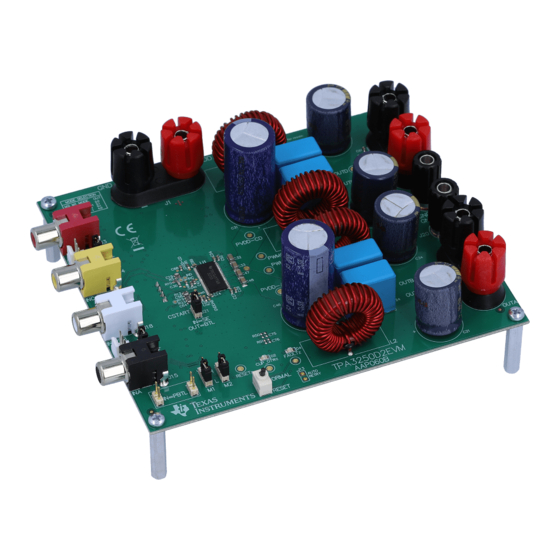

Board Layouts, Bill of Materials, and Schematic TPA3250D2EVM Board Layouts Figure 3 Figure 4 illustrate the board layouts for the EVM. Figure 3. TPA3250D2EVM Top Composite Assembly SLVUAM9 – December 2015 TPA3250D2EVM Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 10: Tpa3250D2Evm Bottom Composite Assembly
Board Layouts, Bill of Materials, and Schematic www.ti.com Figure 4. TPA3250D2EVM Bottom Composite Assembly TPA3250D2EVM SLVUAM9 – December 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 11: Tpa3250D2Evm Board Dimension
Board Layouts, Bill of Materials, and Schematic www.ti.com TPA3250D2EVM Board Dimension Figure 5 illustrates the TPA3250D2EVM board dimensions 140 mm × 120 mm. Figure 5. TPA3250D2EVM Board Dimension SLVUAM9 – December 2015 TPA3250D2EVM Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 12: Bill Of Materials
Board Layouts, Bill of Materials, and Schematic www.ti.com Bill of Materials Table 4 displays the Bill of Materials for the TPA3250D2EVM. Table 4. Bill of Materials Package Designator Value Description Part Number Manufacturer Reference !PCB1 Printed Circuit Board AAP060 0.047 µF CAP, CERM, 0.047 µF, 25 V, ±... - Page 13 Header 4x1 keyed 0022112042 Molex RCA Jack, White, R/A, TH PC Mount Phono Keystone Jack-White, TH J22, J23, J24, J25 4 JUMPER TIN SMD 6.85x0.97x2.51 S1911-46R Harwin SLVUAM9 – December 2015 TPA3250D2EVM Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 14 50-W Stereo, 175-W peak PurePath Ultra-HD Pad Down DDW0044A TPA3250D2DDWR Texas Instruments Class-D Amplifier, DDW0044A High Voltage 1 A Step Down Switching Regulator, 10-pin SDC10A LM5010ASD/NOPB Texas Instruments LLP, Pb-Free TPA3250D2EVM SLVUAM9 – December 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 15 Vishay-Dale TP1, TP2, TP3, Grey Test Point, Multipurpose, Grey, TH Grey Multipurpose 5128 Keystone TP4, TP5, TP6, Testpoint TP7, TP8, TP9, TP10, TP11, TP12, TP13, TP14 SLVUAM9 – December 2015 TPA3250D2EVM Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
-
Page 16: Tpa3250D2Evm Schematic
Board Layouts, Bill of Materials, and Schematic www.ti.com TPA3250D2EVM Schematic The schematic for TPA3250D2EVM is illustrated in Figure MODE PIN SELECTION PVDD PVDD +15V +12V +3.3V 0.1uF TLV1117-33IDCY M2 M1 INPUT MODE OUTPUT DESCRIPTION 0.047µF 2N + 1 2xBTL STEREO BTL OUTPUT, AD MODE 100uH 1.5A... - Page 17 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
